BJ60V-KCY (1980)

Toyota Land Cruiser Van

Production Aug 1980 - Oct 1982
Engine 3B
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

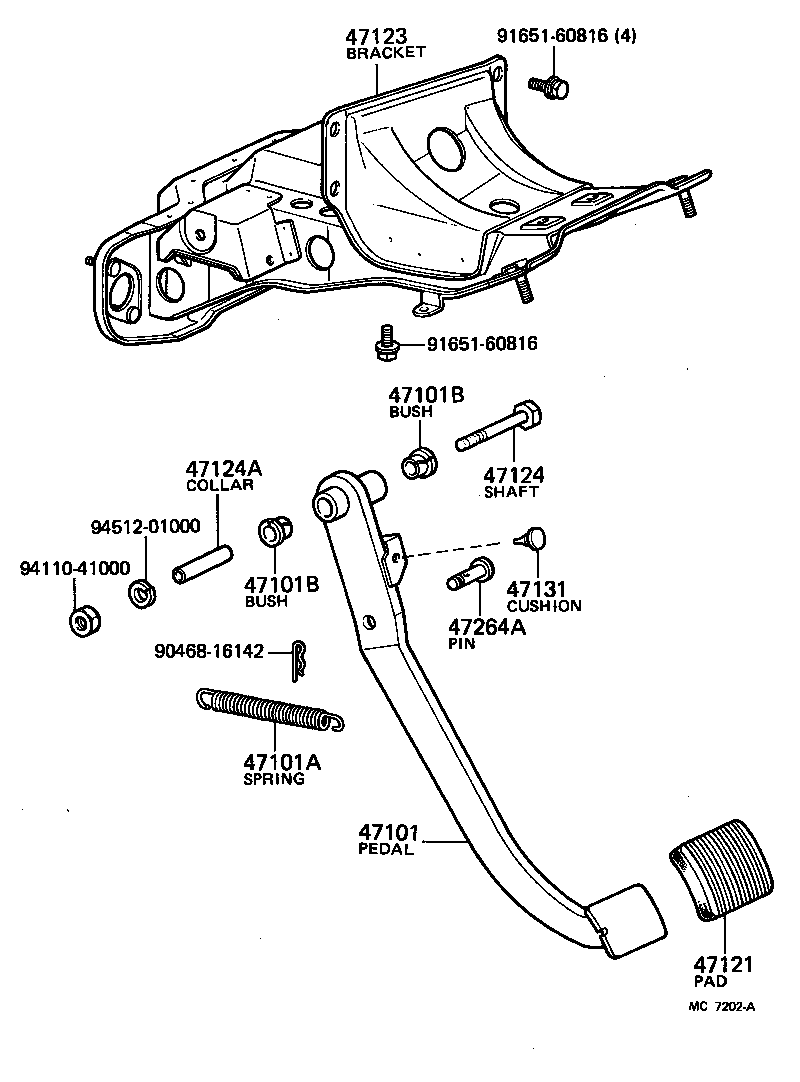

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47123 47124 47124A 47131 47264A 9046816142 9165160816 9165160816 9411041000 9451201000
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-60080

BJ6#,FJ6#,HJ60

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-12451

BJ6#,FJ6#,HJ6#

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13192

BJ6#,FJ6#,HJ6#

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13192

BJ6#,FJ6#,HJ6#

 2
47121 - PAD, BRAKE PEDAL
31321-36010

BJ6#,FJ6#,HJ6#..MTM

 1
47123 - BRACKET, BRAKE PEDAL
55106-90A00

BJ60,FJ60

 1
47124 - SHAFT, BRAKE PEDAL
91121-51070

BJ6#,FJ6#,HJ6#

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10004

BJ6#,FJ6#,HJ6#

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06008

BJ6#,FJ6#,HJ6#

 1
47264A - PIN(FOR PUSH ROD)
90249-10017

BJ6#,FJ6#,HJ6#

 1
Common parts
90468-16142
91651-60816
94110-41000
94512-01000
