BJ44-KCY (1979)

Toyota Land Cruiser Van

Production Feb 1979 - Jul 1980
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

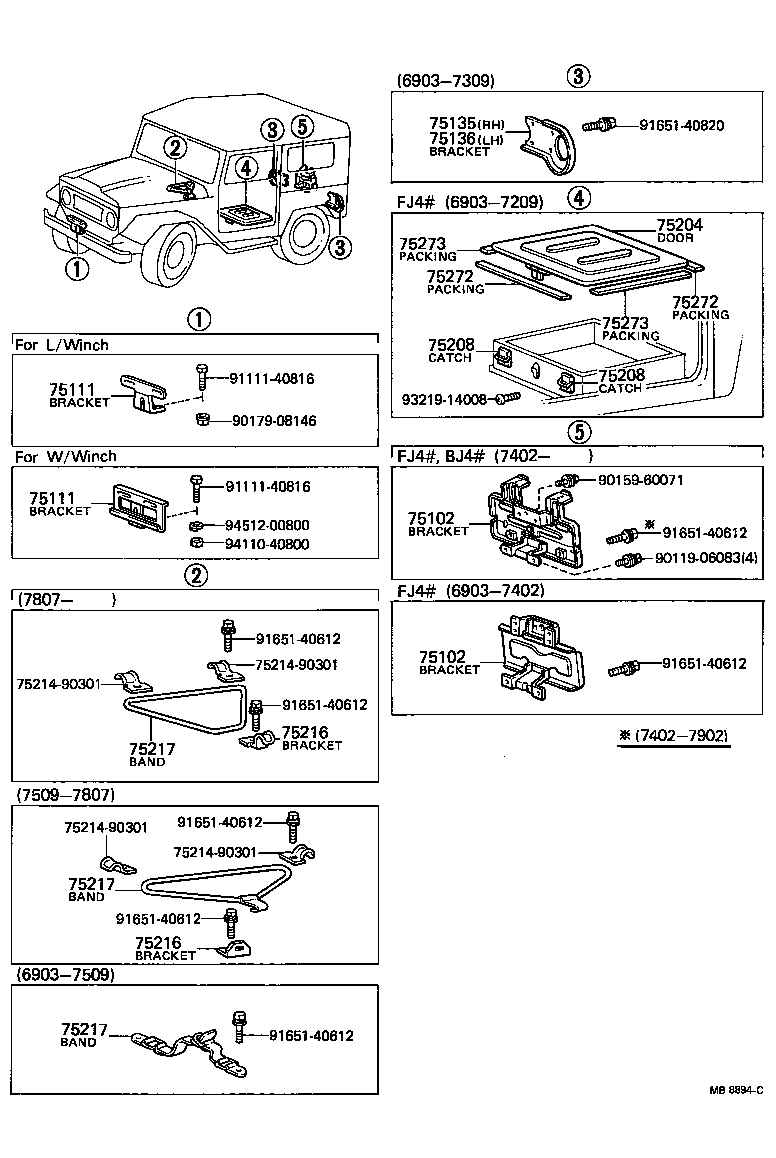

ILLUST NO. 2 OF 2(6903-8007)

Click highlighted areas on diagram

diagram 75102 75102 75111 75111 75135 75136 75204 75208 75208 7521490301 7521490301 7521490301 7521490301 75216 75216 75217 75217 75217 75272 75272 75273 75273 9011906083 9015960071 9017908146 9111140816 9111140816 9165140612 9165140612 9165140612 9165140612 9165140612 9165140612 9165140612 9165140820 9321914008 9411040800 9451200800
Part # Description Qty Price
75111 - BRACKET, FRONT LICENSE PLATE
75101-60011

BJ4#,FJ4#,5#

 1
75111 - BRACKET, FRONT LICENSE PLATE
75101-60011

BJ4#,FJ4#,5#

 1
75216 - BRACKET, TOOL BAG BAND
75216-90301

BJ4#,FJ56

 1
75216 - BRACKET, TOOL BAG BAND
75216-90301

BJ4#,FJ56

 1
Common parts
75214-90301
90119-06083
90159-60071
90179-08146
91111-40816
91651-40612
91651-40820
93219-14008
94110-40800
94512-00800

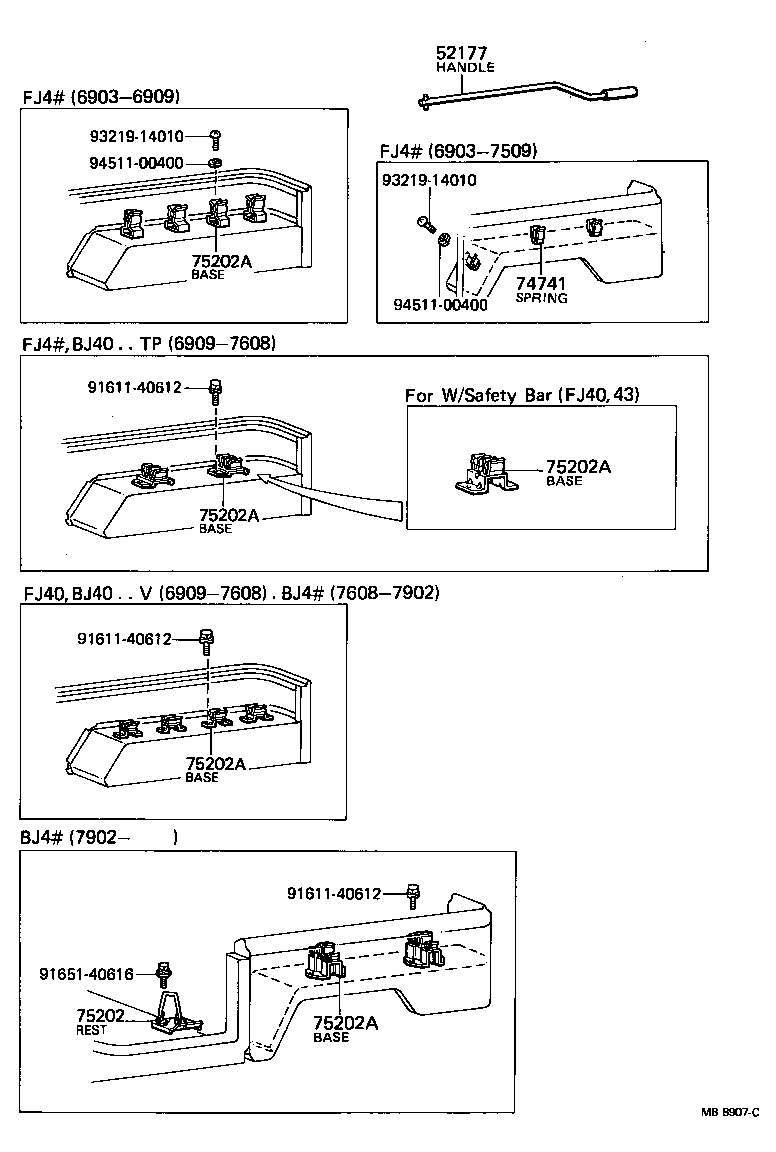

ILLUST NO. 1 OF 2(6903-8007)

Click highlighted areas on diagram

diagram 52177 74741 75202 75202A 75202A 75202A 75202A 75202A 9161140612 9161140612 9161140612 9165140616 9321914010 9321914010 9451100400 9451100400
Part # Description Qty Price
75202 - REST SUB-ASSY, JACK
75202-90300

BJ4#

 1
75202A - BASE SUB-ASSY, JACK HANDLE CLAMP
58305-90301

BJ4#

 2
75202A - BASE SUB-ASSY, JACK HANDLE CLAMP
58305-90301

BJ4#

 2
75202A - BASE SUB-ASSY, JACK HANDLE CLAMP
58305-90301

BJ4#

 2
75202A - BASE SUB-ASSY, JACK HANDLE CLAMP
58305-90301

BJ4#

 2
75202A - BASE SUB-ASSY, JACK HANDLE CLAMP
58305-90301

BJ4#

 2
Common parts
91611-40612
91651-40616
93219-14010
94511-00400
