BJ44-KCY (1979)

Toyota Land Cruiser Van

Production Feb 1979 - Jul 1980
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-8007)TP

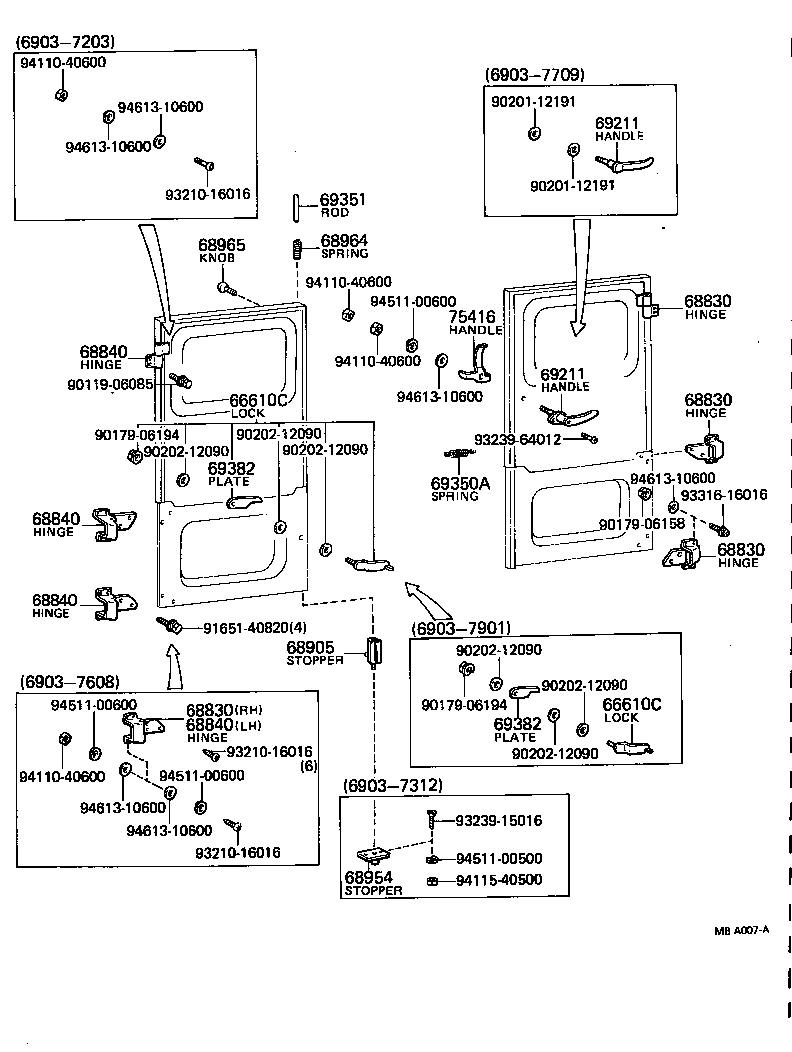

Click highlighted areas on diagram

diagram 66610C 66610C 68830 68830 68830 68830 68840 68840 68840 68840 68905 68954 68964 68965 69211 69211 69350A 69351 69382 69382 75416 9011906085 9017906158 9017906194 9017906194 9020112191 9020112191 9020212090 9020212090 9020212090 9020212090 9020212090 9020212090 9165140820 9321016016 9321016016 9321016016 9323915016 9323964012 9331616016 9411040600 9411040600 9411040600 9411040600 9411540500 9451100500 9451100600 9451100600 9451100600 9461310600 9461310600 9461310600 9461310600 9461310600 9461310600
Part # Description Qty Price
66610C - LOCK ASSY, REAR DROP GATE
69380-90316

BJ4#..TPC

 1
66610C - LOCK ASSY, REAR DROP GATE
69380-90316

BJ4#..TPC

 1
68830 - HINGE ASSY, BACK DOOR, RH
68906-90924

BJ4#,FJ4#..TP

LOWER

 1
68905-90924

BJ4#,FJ4#..TP

CENTER

 1
68830 - HINGE ASSY, BACK DOOR, RH
68906-90924

BJ4#,FJ4#..TP

LOWER

 1
68905-90924

BJ4#,FJ4#..TP

CENTER

 1
68830 - HINGE ASSY, BACK DOOR, RH
68906-90924

BJ4#,FJ4#..TP

LOWER

 1
68905-90924

BJ4#,FJ4#..TP

CENTER

 1
68830 - HINGE ASSY, BACK DOOR, RH
68906-90924

BJ4#,FJ4#..TP

LOWER

 1
68905-90924

BJ4#,FJ4#..TP

CENTER

 1
68840 - HINGE ASSY, BACK DOOR, LH
68905-90924

BJ4#,FJ4#..TP

LOWER

 1
68906-90924

BJ4#,FJ4#..TP

CENTER

 1
68840 - HINGE ASSY, BACK DOOR, LH
68905-90924

BJ4#,FJ4#..TP

LOWER

 1
68906-90924

BJ4#,FJ4#..TP

CENTER

 1
68840 - HINGE ASSY, BACK DOOR, LH
68905-90924

BJ4#,FJ4#..TP

LOWER

 1
68906-90924

BJ4#,FJ4#..TP

CENTER

 1
68840 - HINGE ASSY, BACK DOOR, LH
68905-90924

BJ4#,FJ4#..TP

LOWER

 1
68906-90924

BJ4#,FJ4#..TP

CENTER

 1
68905 - STOPPER SUB-ASSY, BACK DOOR OPEN
68950-90305

BJ4#,FJ4#..TPB,TPC,VLS

 1
68964 - SPRING, REAR SWING DOOR OPEN STOPPER
68964-90924

BJ4#,FJ4#..TP

 1
90501-12037

BJ4#..TPC

 1
68965 - KNOB, REAR SWING DOOR OPEN STOPPER
68963-90925

BJ4#,FJ4#..TP

 1
68962-90300

BJ4#..TPC

 1
69211 - HANDLE, BACK DOOR OUTSIDE, RH
69201-60010

BJ4#,FJ4#..TP

 1
69201-90327

BJ4#,FJ4#..TP

W/KEY

 1
69201-90327

BJ4#..TPC

 1
69211 - HANDLE, BACK DOOR OUTSIDE, RH
69201-60010

BJ4#,FJ4#..TP

 1
69201-90327

BJ4#,FJ4#..TP

W/KEY

 1
69201-90327

BJ4#..TPC

 1
69350A - SPRING(FOR BACK DOOR LOCK)
90506-18324

BJ4#,FJ4#..TP

 1
69351 - ROD, BACK DOOR LOCK CONTROL, UPPER
68961-90315

BJ4#,FJ4#..TP

 1
75416 - HANDLE, TAIL GATE, INSIDE
69261-90323

BJ4#,FJ4#..TP

W/KEY

 1
69261-90314

BJ4#,FJ4#..TP

 1
69261-90323

BJ4#..TPC

 1
Common parts
90119-06085
90179-06158
90179-06194
90201-12191
90202-12090
91651-40820
93210-16016
93239-15016
93239-64012
93316-16016
94110-40600
94115-40500
94511-00500
94511-00600
94613-10600
