BJ44-KCY (1979)
Toyota Land Cruiser Van
Production
Feb 1979
-
Jul 1980
Engine
2B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7902-8007)BJ4#

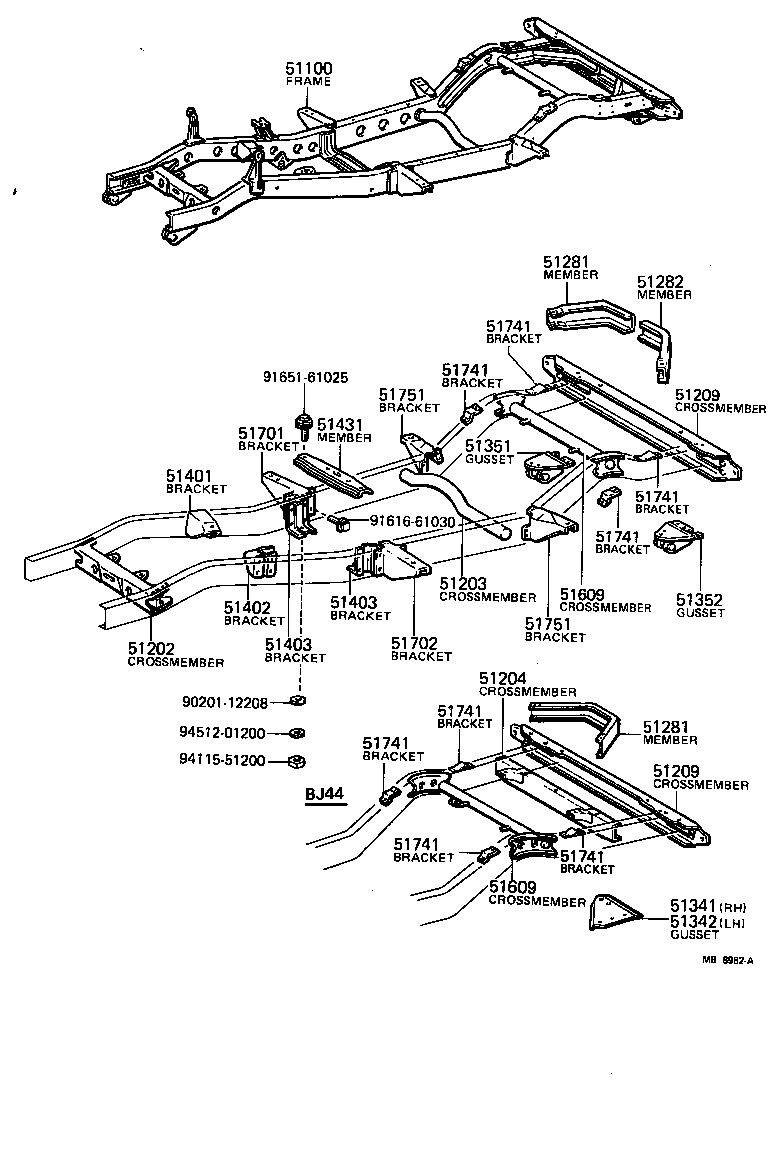

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100 - FRAME ASSY | ||||
| 51001-60282 |
BJ44 |
1 | ||
| 51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1 | ||||
| 51201-60060 |
BJ4# |
1 | ||
| 51201-60061 |
BJ4# |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51221-60010 |
BJ4#,FJ4# |
1 | ||
| 51202-60041 |
BJ4# |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-60090 |
BJ44 |
1 | ||
| 51209 - CROSSMEMBER SUB-ASSY, FRAME, NO.8 | ||||
| 51209-60030 |
BJ4# |
1 | ||
| 51209 - CROSSMEMBER SUB-ASSY, FRAME, NO.8 | ||||
| 51209-60030 |
BJ4# |
1 | ||
| 51281 - MEMBER, REAR DIAGONAL, RH | ||||
| 51281-60011 |
BJ44 |
1 | ||
| 51281 - MEMBER, REAR DIAGONAL, RH | ||||
| 51281-60011 |
BJ44 |
1 | ||
| 51341 - GUSSET, FRAME NO.4 CROSSMEMBER, RH | ||||
| 51391-35010 |
BJ43,44,FJ43 |
1 | ||
| 51342 - GUSSET, FRAME NO.4 CROSSMEMBER, LH | ||||
| 51392-35010 |
BJ43,44,FJ43 |
1 | ||
| 51609 - CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT | ||||
| 51203-60042 |
BJ44 |
1 | ||
| 51609 - CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT | ||||
| 51203-60042 |
BJ44 |
1 | ||
| 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH | ||||
| 51701-60020 |
BJ4# |
1 | ||
| 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH | ||||
| 51701-60020 |
BJ4# |
1 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51741-60010 |
BJ4#,FJ4# |
4 | ||
| 51741-60011 |
BJ4# |
4 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51741-60010 |
BJ4#,FJ4# |
4 | ||
| 51741-60011 |
BJ4# |
4 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51741-60010 |
BJ4#,FJ4# |
4 | ||
| 51741-60011 |
BJ4# |
4 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51741-60010 |
BJ4#,FJ4# |
4 | ||
| 51741-60011 |
BJ4# |
4 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51741-60010 |
BJ4#,FJ4# |
4 | ||
| 51741-60011 |
BJ4# |
4 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51741-60010 |
BJ4#,FJ4# |
4 | ||
| 51741-60011 |
BJ4# |
4 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51741-60010 |
BJ4#,FJ4# |
4 | ||
| 51741-60011 |
BJ4# |
4 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51741-60010 |
BJ4#,FJ4# |
4 | ||
| 51741-60011 |
BJ4# |
4 | ||
| 51751 - BRACKET, BODY SUPPORT, NO.1 | ||||
| 51752-60020 |
BJ4# LH. |
1 | ||
| 51751-60020 |
BJ4# RH. |
1 | ||
| 51751 - BRACKET, BODY SUPPORT, NO.1 | ||||
| 51752-60020 |
BJ4# LH. |
1 | ||
| 51751-60020 |
BJ4# RH. |
1 | ||
| Common parts | ||||
| 90201-12208 | ||||
| 91616-61030 | ||||
| 91651-61025 | ||||
| 94115-51200 | ||||
| 94512-01200 | ||||
