BJ44-KCJY (1979)

Toyota Land Cruiser Van

Production Feb 1979 - Jul 1980
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7902-8007)2B

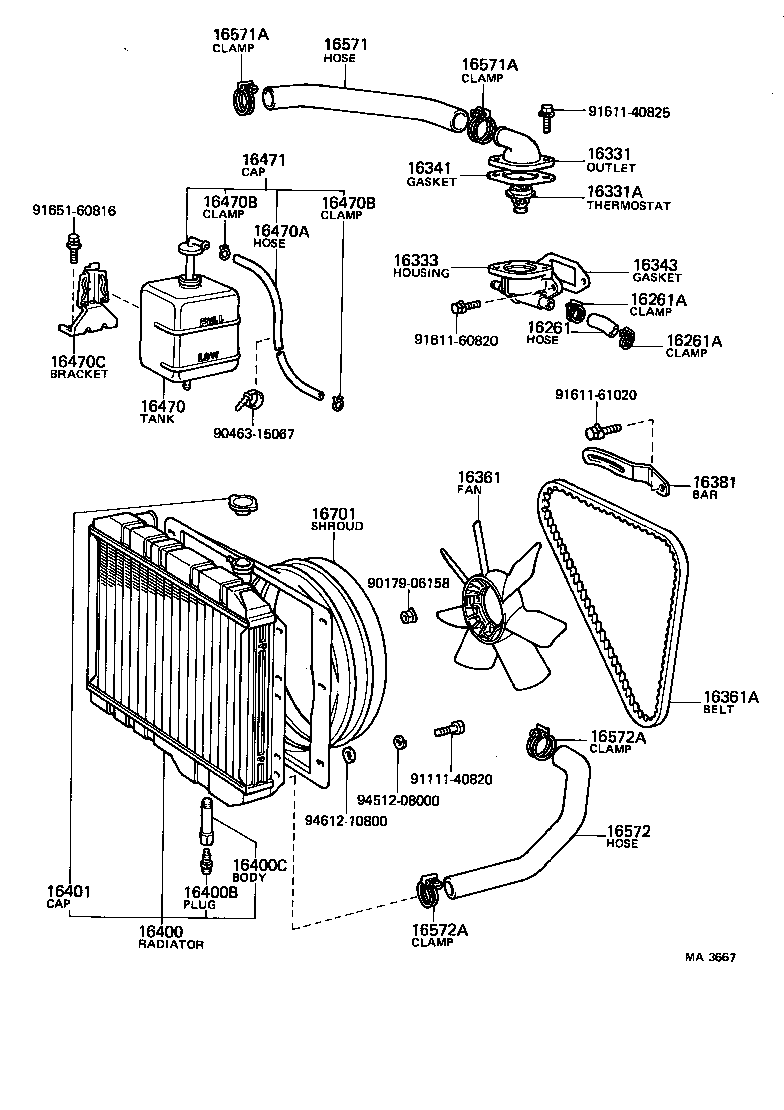

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16331 16331A 16333 16341 16343 16361 16361A 16381 16400 16400B 16400C 16401 16470 16470A 16470B 16470B 16470C 16471 16571 16571A 16571A 16572 16572A 16572A 16701 9017906158 9046315067 9111140820 9161140825 9161160820 9161161020 9165160816 9451208000 9461210800
Part # Description Qty Price
16361 - FAN
16361-38010

2B..BJ4#

W/COUPLING,7 BLADES

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99343-01175

2B..BJ4#

L=1175

 1
16400 - RADIATOR ASSY
16400-59025

2B..BJ4#..TPC

 1
16470 - TANK ASSY, RADIATOR RESERVE
16480-24010

2B..BJ4#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12023

2B..BJ4#

*H,L=380

 1
16470C - BRACKET(FOR RADIATOR RESERVE TANK)
16402-56010

2B..BJ4#

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-56010

2B..BJ4#

 1
16701 - SHROUD SUB-ASSY, FAN
16701-56021

2B..BJ4#

 1
Common parts
90179-06158
90463-15067
91111-40820
91611-40825
91611-60820
91611-61020
91651-60816
94512-08000
94612-10800
