BJ41V-KY (1979)

Toyota Land Cruiser Van

Production Feb 1979 - Jul 1980
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-8007)

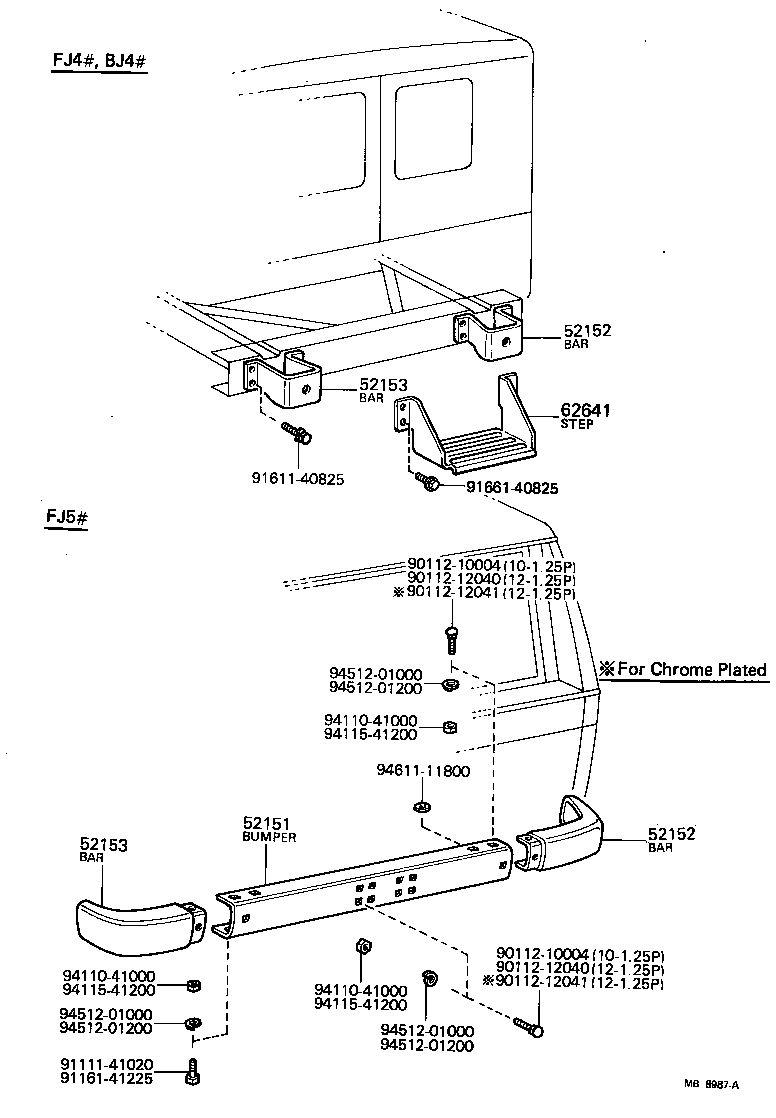

Click highlighted areas on diagram

diagram 52151 52152 52152 52153 52153 62641 9011210004 9011210004 9011212040 9011212040 9011212041 9011212041 9111141020 9116141225 9161140825 9166140825 9411041000 9411041000 9411041000 9411541200 9411541200 9411541200 9451201000 9451201000 9451201000 9451201200 9451201200 9451201200 9461111800
Part # Description Qty Price
52152 - BAR, REAR BUMPER, RH
52152-60011

BJ4#,FJ4#

 1
52152-60040

BJ4#,FJ4#

CHROME PLATED

 1
52152 - BAR, REAR BUMPER, RH
52152-60011

BJ4#,FJ4#

 1
52152-60040

BJ4#,FJ4#

CHROME PLATED

 1
52153 - BAR, REAR BUMPER, LH
52153-60040

BJ4#,FJ4#

CHROME PLATED

 1
52153-60011

BJ4#,FJ4#

 1
52153 - BAR, REAR BUMPER, LH
52153-60040

BJ4#,FJ4#

CHROME PLATED

 1
52153-60011

BJ4#,FJ4#

 1
Common parts
90112-10004
90112-12040
90112-12041
91111-41020
91161-41225
91611-40825
91661-40825
94110-41000
94115-41200
94512-01000
94512-01200
94611-11800
