BJ41V-KY (1979)

Toyota Land Cruiser Van

Production Feb 1979 - Jul 1980
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7902-8007)BJ4#

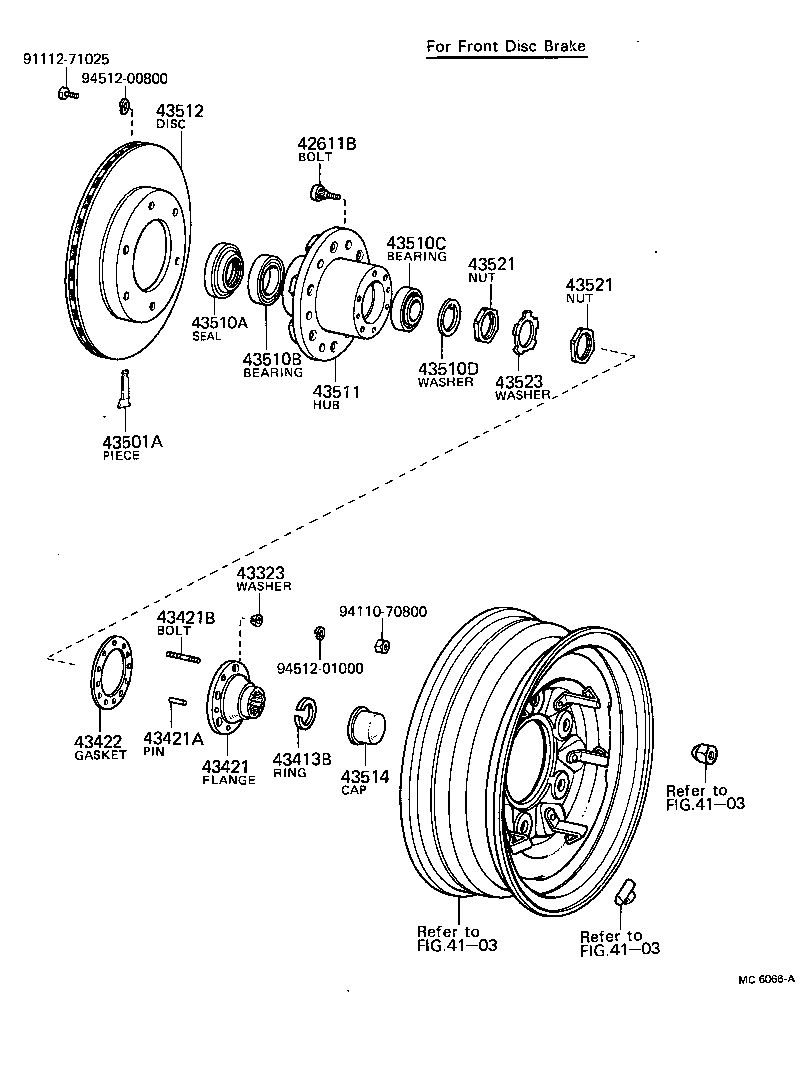

Click highlighted areas on diagram

diagram 4103 4103 4103 42611B 43323 43413B 43421 43421A 43421B 43422 43501A 43510A 43510B 43510C 43510D 43511 43512 43514 43521 43521 43523 9111271025 9411070800 9451200800 9451201000
Part # Description Qty Price
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02014

BJ4#,FJ4#,5#

 12
90942-02014

BJ4#

FOR DISC BRAKE

 12
43413B - RING, DRIVE SHAFT SNAP
90520-28038

BJ4#,FJ4#,5#

 2
43421 - FLANGE, FRONT AXLE OUTER SHAFT
43421-60013

BJ4#,FJ56

 2
43421-60010

BJ4#,FJ4#,5#

 2
43421A - PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE)
90250-07057

BJ4#,FJ4#,5#

 4
43422 - GASKET, FRONT AXLE OUTER SHAFT FLANGE
43422-60010

BJ4#,FJ4#,5#

 2
43501A - PIECE, BALANCE (FOR FRONT BRAKE DRUM)
90937-01027

BJ4#,FJ4#,5#

30G.

 1
90937-01028

BJ4#,FJ4#,5#

60G.

 1
90937-01183

BJ4#

FOR DISC BRAKE

 1
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90312-55010

BJ4#,FJ4#,5#

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-41002

BJ4#,FJ4#,5#

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-38003

BJ4#,FJ4#,5#

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-38013

BJ4#,FJ4#,5#

 2
43511 - HUB, FRONT AXLE
43511-60021

BJ4#

FOR DISC BRAKE

 2
43511-60010

BJ4#,FJ4#,5#

 2
43512 - DISC, FRONT
43512-60011

BJ4#

FOR DISC BRAKE

 2
43514 - CAP, FRONT HUB GREASE
43423-60011

BJ4#,FJ56

 2
43423-60010

BJ4#,FJ4#,5#

 2
43521 - NUT, FRONT WHEEL ADJUSTING
43521-60010

BJ4#,FJ4#,5#

 4
43521 - NUT, FRONT WHEEL ADJUSTING
43521-60010

BJ4#,FJ4#,5#

 4
Common parts
91112-71025
94110-70800
94512-00800
94512-01000
Linked diagrams
4103
