BJ41V-KCY (1979)

Toyota Land Cruiser Van

Production Feb 1979 - Jul 1980
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7902-8007)BJ41,FJ56

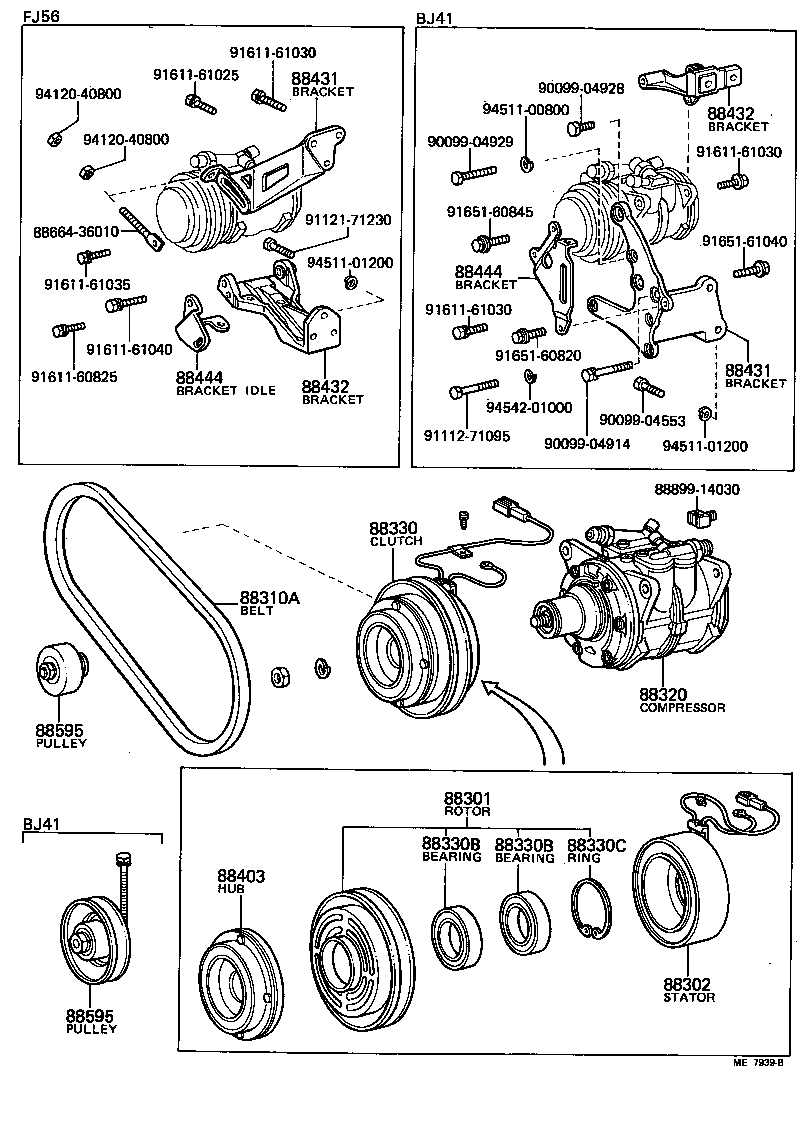

Click highlighted areas on diagram

diagram 88301 88302 88310A 88320 88330 88330B 88330B 88330C 88403 88431 88431 88432 88432 88444 88444 88595 88595 8866436010 8889914030 9009904553 9009904914 9009904928 9009904929 9111271095 9112171230 9161160825 9161161025 9161161030 9161161030 9161161030 9161161035 9161161040 9165160820 9165160845 9165161040 9412040800 9412040800 9451100800 9451101200 9451101200 9454201000
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-12040

BJ41,FJ56

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-25010

BJ41..V

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-11020

BJ41..V

 1
88320 - COMPRESSOR ASSY, COOLER
88320-60030

BJ41..V

 1
88330 - CLUTCH ASSY, MAGNET
88410-25010

BJ41..V

 1
88330B - BEARING, MAGNET CLUTCH
90099-10127

BJ41..V

 2
88330B - BEARING, MAGNET CLUTCH
90099-10127

BJ41..V

 2
88330C - RING, SNAP (FOR MAGNET CLUTCH)
90099-07113

BJ41..V

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-22030

BJ41..V

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-60010

BJ41..V

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-60010

BJ41..V

 1
88432 - BRACKET, COMPRESSOR MOUNTING, NO.2
88431-60020

BJ41..V

 1
88432 - BRACKET, COMPRESSOR MOUNTING, NO.2
88431-60020

BJ41..V

 1
88444 - BRACKET, IDLE PULLEY
88444-60010

BJ41..V

 1
88444 - BRACKET, IDLE PULLEY
88444-60010

BJ41..V

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-30250

BJ41..V

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-30250

BJ41..V

 1
Common parts
88664-36010
88899-14030
90099-04553
90099-04914
90099-04928
90099-04929
91112-71095
91121-71230
91611-60825
91611-61025
91611-61030
91611-61035
91611-61040
91651-60820
91651-60845
91651-61040
94120-40800
94511-00800
94511-01200
94542-01000
