BJ41V-KCY (1979)

Toyota Land Cruiser Van

Production Feb 1979 - Jul 1980
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-8007)

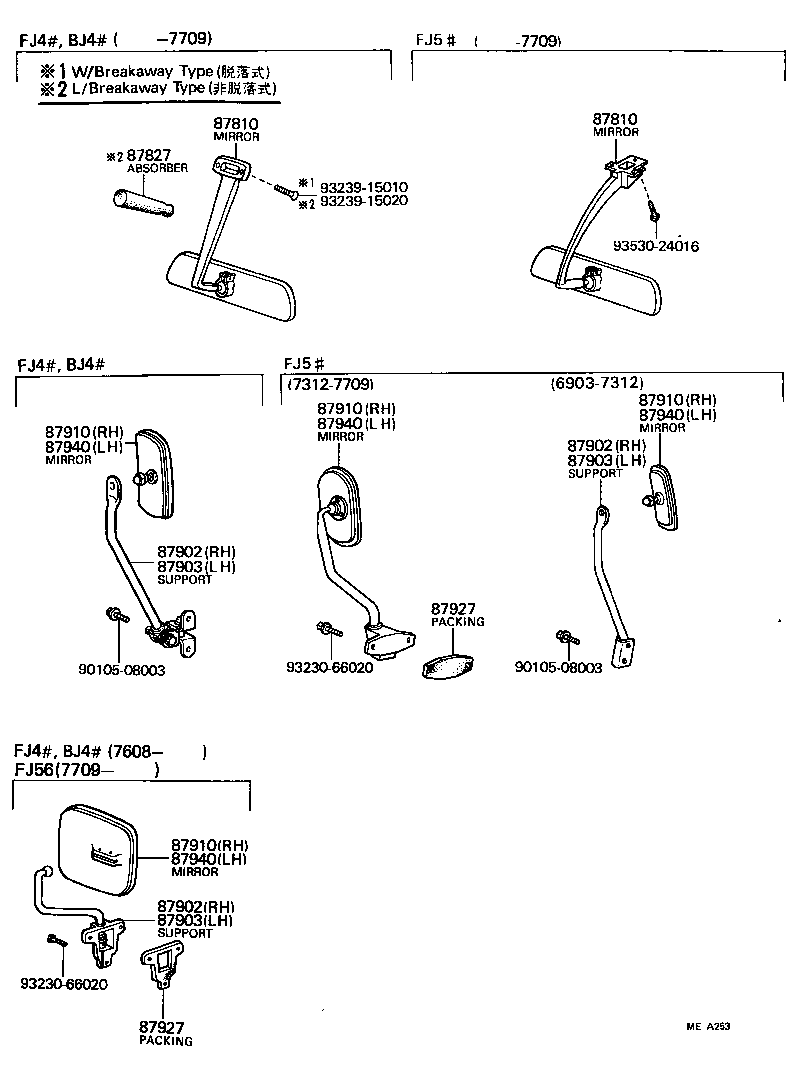

Click highlighted areas on diagram

diagram 87810 87810 87827 87902 87902 87902 87903 87903 87903 87910 87910 87910 87910 87927 87927 87940 87940 87940 87940 9010508003 9010508003 9323066020 9323066020 9323915010 9323915020 9353024016
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-60050

BJ4#,FJ4#

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-60050

BJ4#,FJ4#

 1
87902 - SUPPORT, REAR VIEW OUTSIDE MIRROR, RH
87902-90303

BJ41..V

FOR LUXURY SPEC.

 1
87902 - SUPPORT, REAR VIEW OUTSIDE MIRROR, RH
87902-90303

BJ41..V

FOR LUXURY SPEC.

 1
87902 - SUPPORT, REAR VIEW OUTSIDE MIRROR, RH
87902-90303

BJ41..V

FOR LUXURY SPEC.

 1
87903 - SUPPORT, REAR VIEW OUTSIDE MIRROR, LH
87905-90302

BJ41..V

FOR LUXURY SPEC.

 1
87903 - SUPPORT, REAR VIEW OUTSIDE MIRROR, LH
87905-90302

BJ41..V

FOR LUXURY SPEC.

 1
87903 - SUPPORT, REAR VIEW OUTSIDE MIRROR, LH
87905-90302

BJ41..V

FOR LUXURY SPEC.

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87901-90305

BJ41..V

FOR LUXURY SPEC.

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87901-90305

BJ41..V

FOR LUXURY SPEC.

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87901-90305

BJ41..V

FOR LUXURY SPEC.

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87901-90305

BJ41..V

FOR LUXURY SPEC.

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87901-90305

BJ41..V

FOR LUXURY SPEC.

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87901-90305

BJ41..V

FOR LUXURY SPEC.

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87901-90305

BJ41..V

FOR LUXURY SPEC.

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87901-90305

BJ41..V

FOR LUXURY SPEC.

 1
Common parts
90105-08003
93230-66020
93239-15010
93239-15020
93530-24016
