BJ41V-KCY (1979)

Toyota Land Cruiser Van

Production Feb 1979 - Jul 1980
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7902-8007)BJ4#

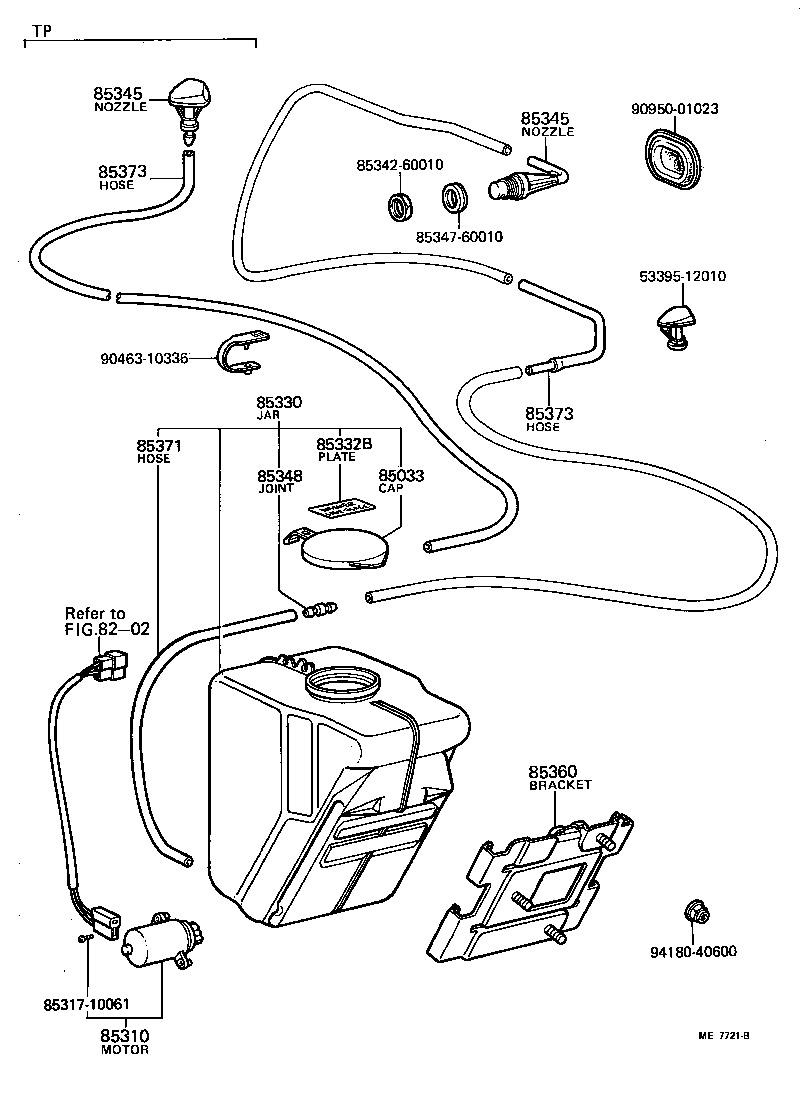

Click highlighted areas on diagram

diagram 5339512010 8202 85033 85310 8531710061 85330 85332B 8534260010 85345 85345 8534760010 85348 85360 85371 85373 85373 9046310336 9095001023 9418040600
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85332-60010

BJ4#,FJ56

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-60020

BJ4#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-60051

BJ4#

 1
85332B - LABEL, WASHER
85332-60020

BJ4#

 1
85345 - NOZZLE, WINDSHIELD WASHER
85035-60061

BJ41..V

 1
85345 - NOZZLE, WINDSHIELD WASHER
85035-60061

BJ41..V

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-10060

BJ4#

 1
85360 - BRACKET ASSY, WINDSHIELD WASHER
85361-60060

BJ4#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06341

BJ4#

*H,L=280

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
85370-60020

BJ41..V

L=400

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
85370-60020

BJ41..V

L=400

 1
Common parts
53395-12010
85317-10061
85342-60010
85347-60010
90463-10336
90950-01023
94180-40600
Linked diagrams
8202
