BJ41V-KCY (1979)

Toyota Land Cruiser Van

Production Feb 1979 - Jul 1980
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

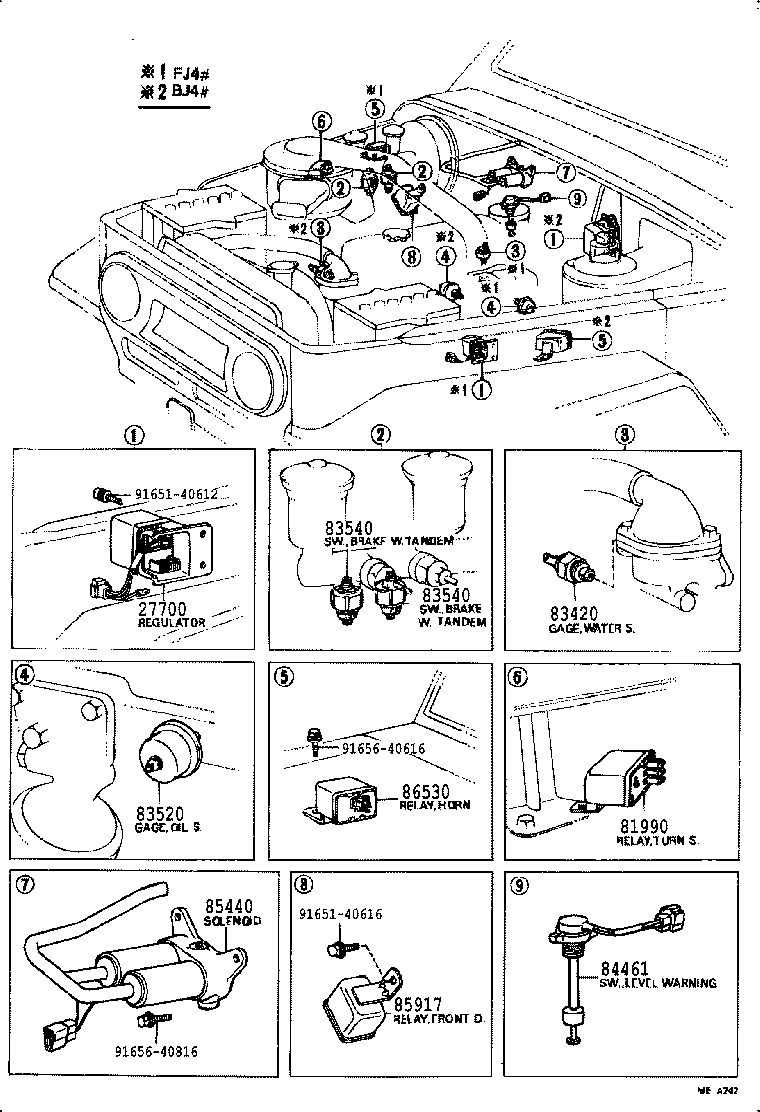

ILLUST NO. 3 OF 5(6903-8007)BJ4#,FJ4#

Click highlighted areas on diagram

diagram 27700 81990 83420 83520 83540 83540 85440 85917 86530 9165140612 9165140616 9165640616 9165640816
Part # Description Qty Price
27700 - REGULATOR ASSY, GENERATOR
27700-56050

2B..BJ4#

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-16010

BJ4#,FJ56

DENSO

 1
83420-20020

BJ4#,FJ56

YAZAKI

 1
Common parts
91651-40612
91651-40616
91656-40616
91656-40816

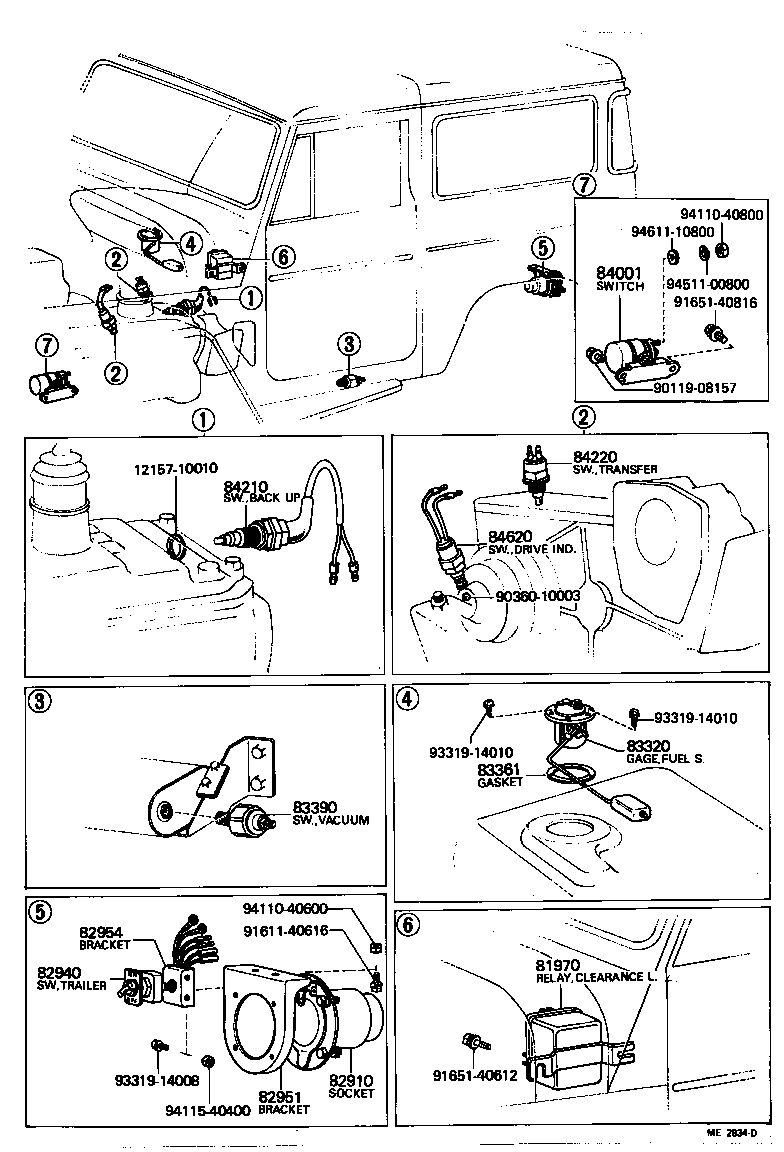

ILLUST NO. 5 OF 5(6903-8007)BJ4#,FJ4#

Click highlighted areas on diagram

diagram 1215710010 81970 82910 82940 82951 82954 83320 83361 83390 84001 84210 84220 84620 9011908157 9036010003 9161140616 9165140612 9165140816 9331914008 9331914010 9331914010 9411040600 9411040800 9411540400 9451100800 9461110800
Part # Description Qty Price
83320 - GAGE ASSY, FUEL SENDER
83320-60051

BJ4#

 1
83390 - SWITCH ASSY, VACUUM WARNING
83390-60010

BJ4#

 1
84001 - SWITCH ASSY, MAGNET
38630-60030

BJ4#

 1
84220 - SWITCH ASSY, TRANSFER LEVER SELECT
84210-14010

BJ4#

FOR MAGNET FRONT DRIVE

 1
84620 - SWITCH ASSY, FRONT DRIVE INDICATOR
84610-30020

BJ4#

 1
84610-30020

BJ4#,FJ4#,5#

 1
Common parts
12157-10010
90119-08157
90360-10003
91611-40616
91651-40612
91651-40816
93319-14008
93319-14010
94110-40600
94110-40800
94115-40400
94511-00800
94611-10800

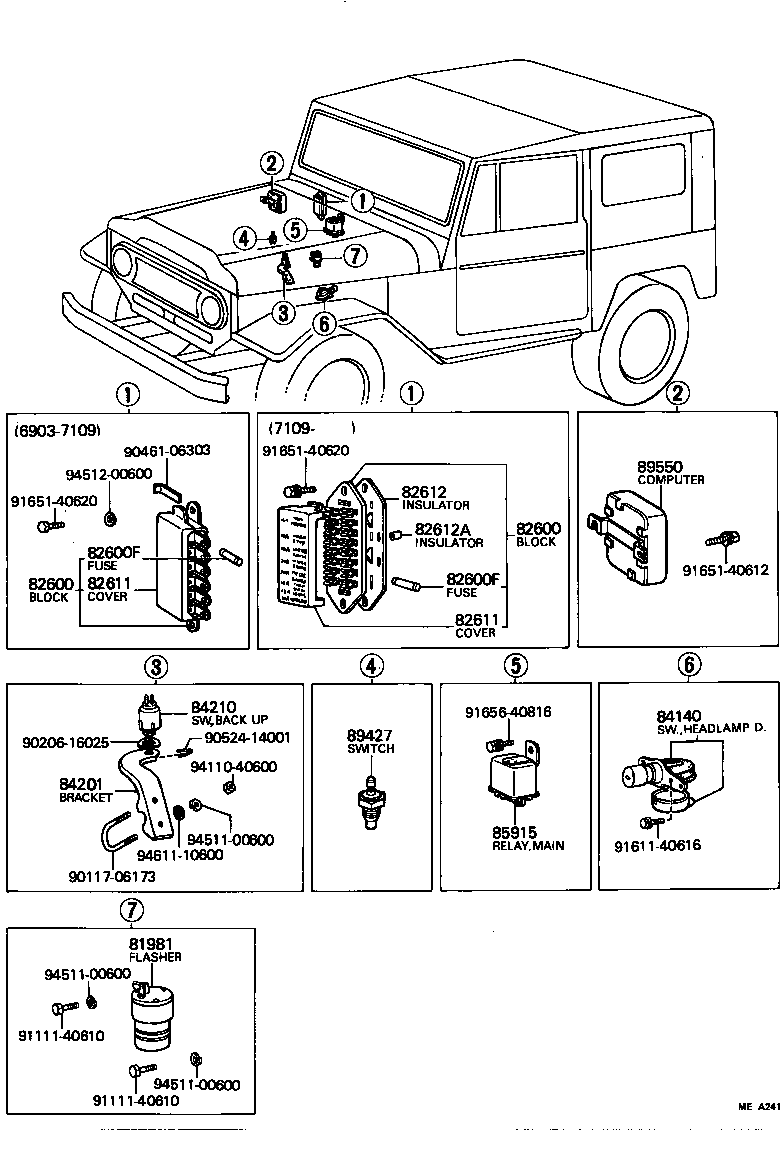

ILLUST NO. 2 OF 5(6903-8007)BJ4#,FJ4#

Click highlighted areas on diagram

diagram 81981 82600 82600 82600F 82600F 82611 82611 82612 82612A 84140 84201 84210 85915 89427 89550 9011706173 9020616025 9046106303 9052414001 9111140610 9111140610 9161140616 9165140612 9165140620 9165140620 9165640816 9411040600 9451100600 9451100600 9451100600 9451200600 9461110600
Part # Description Qty Price
82600F - FUSE, FUSE BLOCK
90982-07008

BJ4#,FJ56

5A

 1
99118-62920

BJ4#,FJ4#,5#

20A,20A

 2
99118-62915

BJ4#,FJ4#,5#

15A,15A

 8
82600F - FUSE, FUSE BLOCK
90982-07008

BJ4#,FJ56

5A

 1
99118-62920

BJ4#,FJ4#,5#

20A,20A

 2
99118-62915

BJ4#,FJ4#,5#

15A,15A

 8
82611 - COVER, FUSE BLOCK
82611-90300

BJ4#,FJ56

 1
82611 - COVER, FUSE BLOCK
82611-90300

BJ4#,FJ56

 1
Common parts
90117-06173
90206-16025
90461-06303
90524-14001
91111-40610
91611-40616
91651-40612
91651-40620
91656-40816
94110-40600
94511-00600
94512-00600
94611-10600

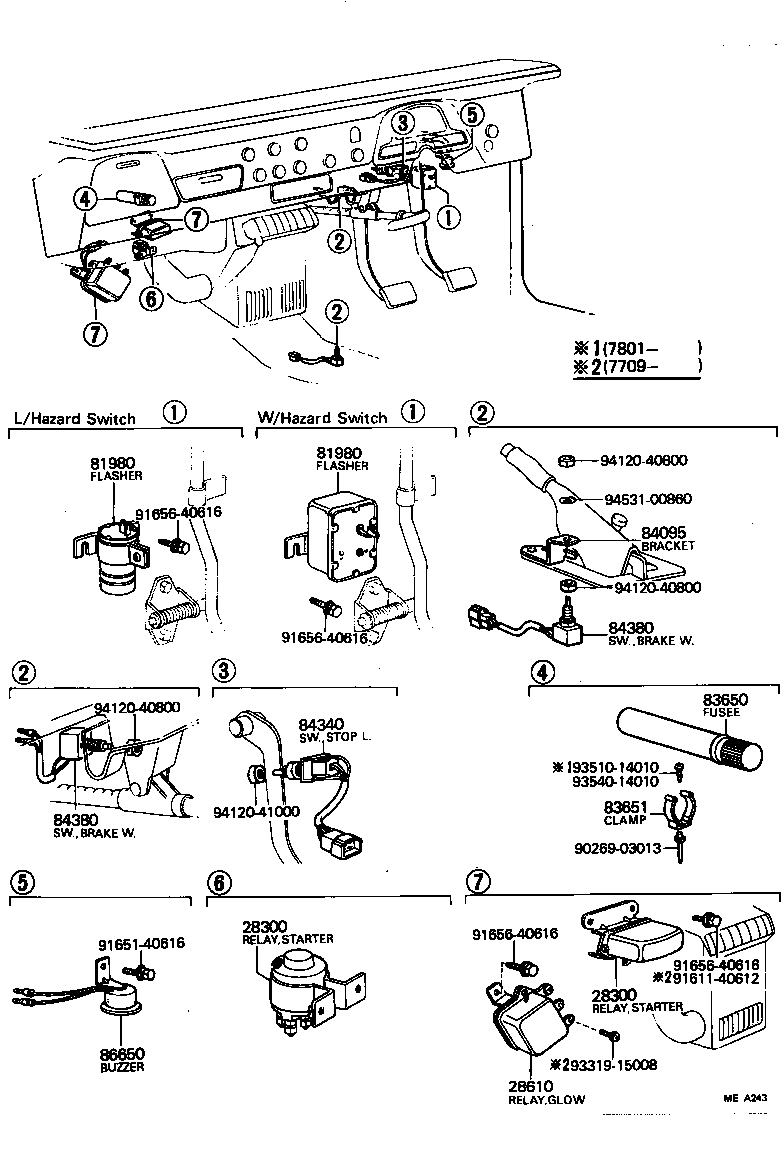

ILLUST NO. 4 OF 5(6903-8007)BJ4#,FJ4#

Click highlighted areas on diagram

diagram 28300 28300 28610 81980 81980 83650 83651 84095 84340 84380 84380 86650 9026903013 9161140612 9165140616 9165640616 9165640616 9165640616 9165640616 9331915008 9351014010 9354014010 9412040800 9412040800 9412040800 9412041000 9453100860
Part # Description Qty Price
84095 - BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH
84956-60010

BJ4#

 1
Common parts
90269-03013
91611-40612
91651-40616
91656-40616
93319-15008
93510-14010
93540-14010
94120-40800
94120-41000
94531-00860
