BJ41V-KCY (1979)

Toyota Land Cruiser Van

Production Feb 1979 - Jul 1980
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(7902-8007)

Click highlighted areas on diagram

diagram 8281790300 8281890300 8281990305 9046106083 9046108090 9046108192 9046108202 9046108385 9046108430 9046108911 9046110274 9046110398 9046210005 9046304079 9046304340 9046306161 9046308027 9046308030 9046308207 9046308375 9046310010 9046310521 9046315067 9046400190 9046710007
Part # Description Qty Price
Common parts
82817-90300
82818-90300
82819-90305
90461-06083
90461-08090
90461-08192
90461-08202
90461-08385
90461-08430
90461-08911
90461-10274
90461-10398
90462-10005
90463-04079
90463-04340
90463-06161
90463-08027
90463-08030
90463-08207
90463-08375
90463-10010
90463-10521
90463-15067
90464-00190
90467-10007

ILLUST NO. 3 OF 3(7902-8007)

Click highlighted areas on diagram

diagram 9046108026 9046108213 9046110476 9046112543 9046112690 9046304573 9046308026 9046310012 9046310024 9046310060 9046312570 9046315454 9046736135 9048001316 9048010300 9048013334 9048015007 9048015172 9048015194 9048018011 9048021511 9048036508 9048040303 9048058059
Part # Description Qty Price
Common parts
90461-08026
90461-08213
90461-10476
90461-12543
90461-12690
90463-04573
90463-08026
90463-10012
90463-10024
90463-10060
90463-12570
90463-15454
90467-36135
90480-01316
90480-10300
90480-13334
90480-15007
90480-15172
90480-15194
90480-18011
90480-21511
90480-36508
90480-40303
90480-58059

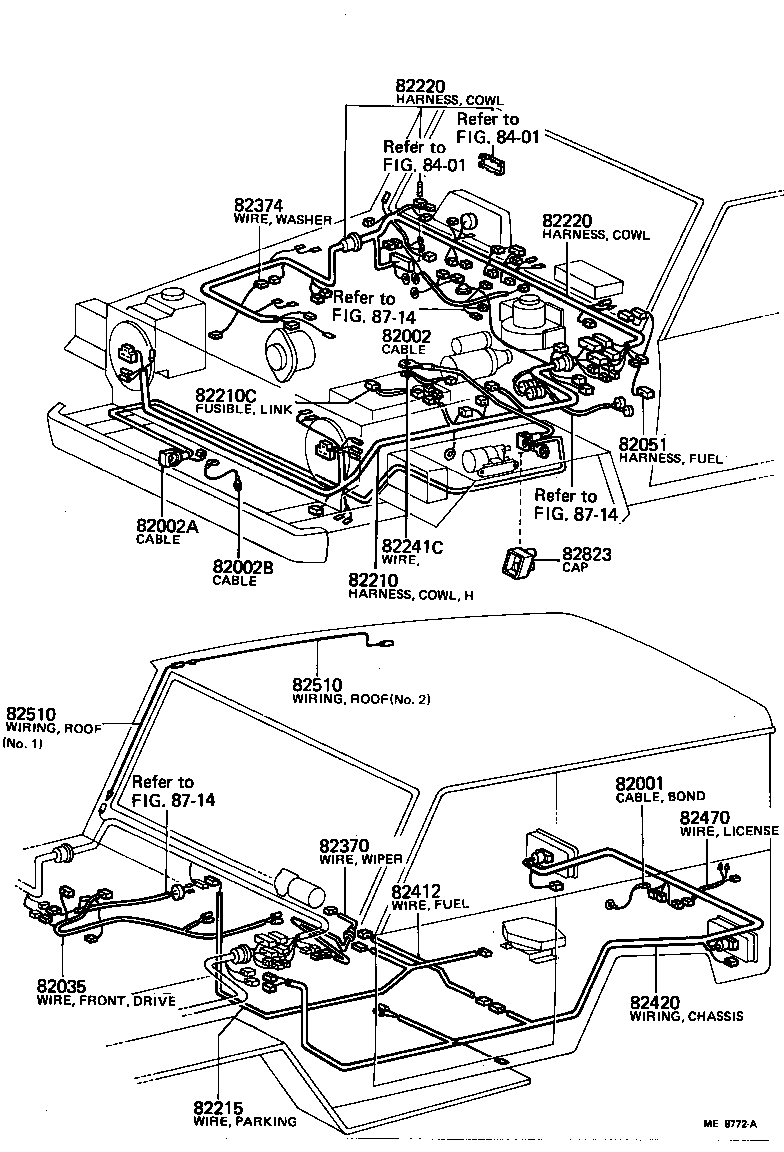

ILLUST NO. 1 OF 3(7902-8007)BJ4#

Click highlighted areas on diagram

diagram 82001 82002 82002A 82002B 82035 82051 82210 82210C 82215 82220 82220 82241C 82370 82374 82412 82420 82470 82510 82510 82823 8401 8401 8714 8714 8714
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
82381-60010

BJ4#,FJ4#,5#

L=150

 1
82002 - CABLE, BATTERY TO MAGNET SWITCH
38915-90300

BJ4#

 1
82002A - CABLE, MAGNET SWITCH TO WINCH
38916-90301

BJ4#

 1
82002B - CABLE, WINCH TO GROUND
90980-07175

BJ4#

 1
82035 - WIRE SUB-ASSY, FRONT DRIVE
82035-90304

BJ4#

 1
82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
82210-90631

BJ4#

 1
82210C - FUSIBLE LINK
90982-08101

BJ4#

 1
82215 - WIRE, PARKING BRAKE LAMP SWITCH
82215-90300

BJ4#

 1
82215-90304

BJ4#

W/REAR HEATER

 1
82220 - HARNESS ASSY, WIRING COWL
82220-90309

BJ4#

 1
82220 - HARNESS ASSY, WIRING COWL
82220-90309

BJ4#

 1
82241C - WIRE, RELAY
82241-90303

BJ4#

FOR ELECTRICAL WINCH

 1
82374 - WIRE, WASHER
82374-60010

BJ4#

 1
82412 - WIRE, FUEL GAGE
82412-90310

BJ4#

 1
82420 - WIRING ASSY, CHASSIS
82420-90342

BJ41

 1
82470 - WIRE ASSY, LICENSE LAMP FEED
82470-90308

BJ41..VKC

 1
82823 - CAP, TERMINAL, NO.1
82823-90300

BJ4#

FOR ELECTRICAL WINCH

 1
