Toyota Land cruiser van BJ41 SEAT & SEAT TRACK

BJ41V-KCY (1979)

Toyota Land Cruiser Van

Production Feb 1979 - Jul 1980

Engine 2B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

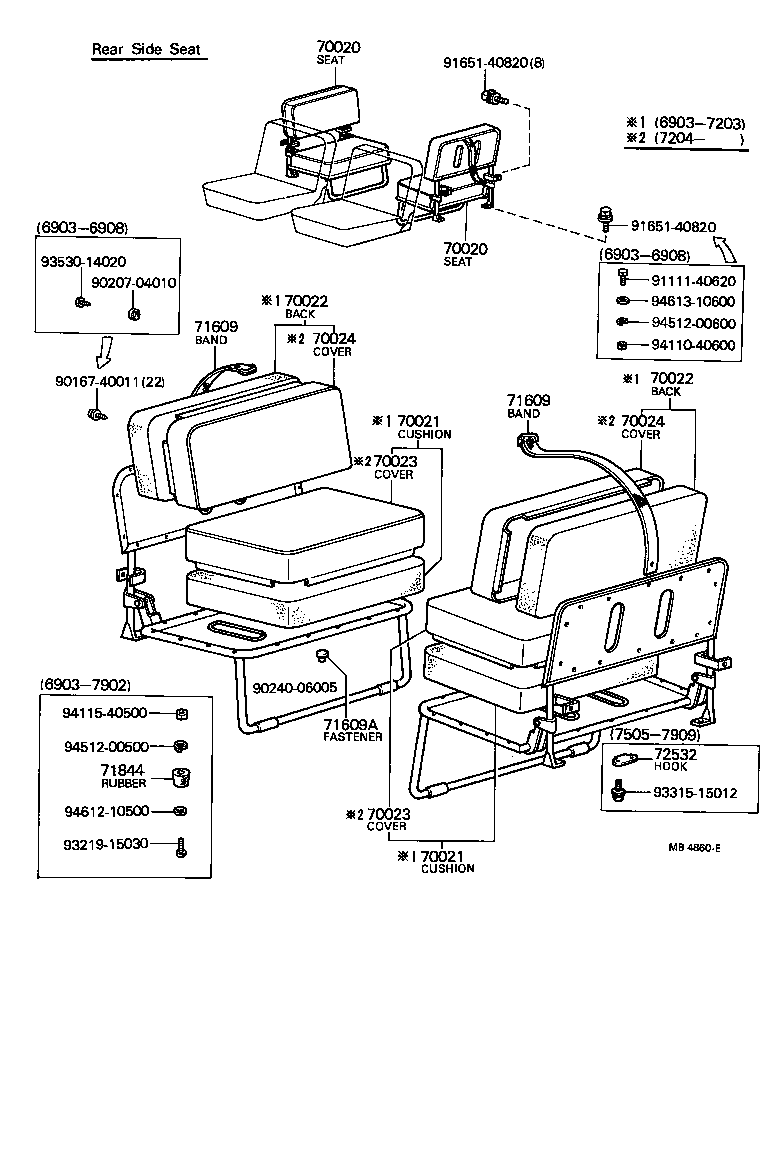

(6903-8007)BJ4#,FJ4#

Click highlighted areas on diagram

Part #	Description	Period	Qty
70020 - SEAT ASSY, NO.2
71800-90273	BJ41..V LH.	02/1979 - 09/1979	1
71700-90280	BJ41..V RH.	09/1979 - 07/1980	1
71800-90277	BJ41..V LH.	09/1979 - 07/1980	1
71700-90288	BJ41..V RH.,LUXURY TYPE	12/1979 - 07/1980	1
71800-90282	BJ41..V LH.,LUXURY TYPE	12/1979 - 07/1980	1
71700-90275	BJ41..V RH.	02/1979 - 09/1979	1
70020 - SEAT ASSY, NO.2
71800-90273	BJ41..V LH.	02/1979 - 09/1979	1
71700-90280	BJ41..V RH.	09/1979 - 07/1980	1
71800-90277	BJ41..V LH.	09/1979 - 07/1980	1
71700-90288	BJ41..V RH.,LUXURY TYPE	12/1979 - 07/1980	1
71800-90282	BJ41..V LH.,LUXURY TYPE	12/1979 - 07/1980	1
71700-90275	BJ41..V RH.	02/1979 - 09/1979	1
70023 - COVER ASSY, NO.2 SEAT CUSHION
71075-90073	BJ41..V	02/1979 - 09/1979	2
71075-90080	BJ41..V	09/1979 - 07/1980	2
71076-90081	BJ41..VKC THE MIGHTY BJ,LH	05/1980 - 05/1980	1
71075-90087	BJ41..VKC THE MIGHTY BJ,RH	05/1980 - 05/1980	1
71075-90086	BJ41..V LUXURY TYPE	12/1979 - 07/1980	2
70023 - COVER ASSY, NO.2 SEAT CUSHION
71075-90073	BJ41..V	02/1979 - 09/1979	2
71075-90080	BJ41..V	09/1979 - 07/1980	2
71076-90081	BJ41..VKC THE MIGHTY BJ,LH	05/1980 - 05/1980	1
71075-90087	BJ41..VKC THE MIGHTY BJ,RH	05/1980 - 05/1980	1
71075-90086	BJ41..V LUXURY TYPE	12/1979 - 07/1980	2
70024 - COVER ASSY, NO.2 SEAT BACK
71077-90073	BJ41..V	02/1979 - 07/1980	2
71078-90070	BJ41..VKC THE MIGHTY BJ,LH	05/1980 - 05/1980	1
71077-90078	BJ41..V LUXURY TYPE	12/1979 - 07/1980	2
71077-90079	BJ41..VKC THE MIGHTY BJ,RH	05/1980 - 05/1980	1
70024 - COVER ASSY, NO.2 SEAT BACK
71077-90073	BJ41..V	02/1979 - 07/1980	2
71078-90070	BJ41..VKC THE MIGHTY BJ,LH	05/1980 - 05/1980	1
71077-90078	BJ41..V LUXURY TYPE	12/1979 - 07/1980	2
71077-90079	BJ41..VKC THE MIGHTY BJ,RH	05/1980 - 05/1980	1
71609A - FASTENER, REAR SIDE SEAT BAND
65928-60010	BJ4#,FJ4#,5#	03/1969 - 07/1980	2
71844 - RUBBER, REAR SEAT CUSHION BASE
71882-60010	BJ4#,FJ4# REAR SEAT	03/1969 - 05/1975	6
Common parts
90167-40011
90207-04010
90240-06005
91111-40620
91651-40820
93219-15030
93315-15012
93530-14020
94110-40600
94115-40500
94512-00500
94512-00600
94612-10500
94613-10600

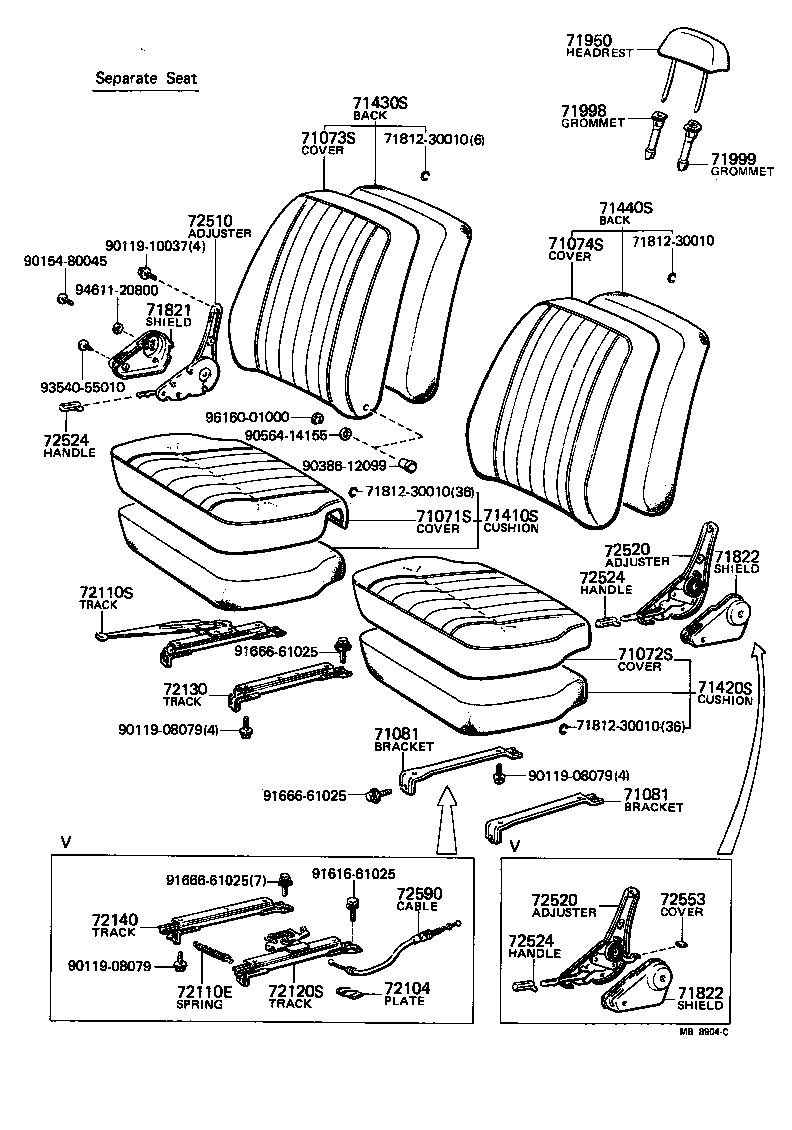

(7902-8007)BJ4#

Click highlighted areas on diagram

Part #	Description	Period	Qty
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-90348	BJ41..V LUXURY TYPE	12/1979 - 07/1980	1
71071-90344	BJ4#	02/1979 - 07/1980	1
71071-90070	BJ41..VKC THE MIGHTY BJ	05/1980 - 05/1980	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71071-90348	BJ41..V LUXURY TYPE	12/1979 - 07/1980	1
71072-90348	BJ41..VKC THE MIGHTY BJ	05/1980 - 05/1980	1
71071-90344	BJ4#	02/1979 - 07/1980	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-90085	BJ41..VKC THE MIGHTY BJ	05/1980 - 05/1980	1
71073-90078	BJ4#	02/1979 - 07/1980	1
71073-90084	BJ41..V LUXURY TYPE	12/1979 - 07/1980	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-90089	BJ41..V LUXURY TYPE	12/1979 - 07/1980	1
71074-90270	BJ41..VKC THE MIGHTY BJ	05/1980 - 05/1980	1
71074-90082	BJ4#	02/1979 - 07/1980	1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-90087	BJ41..V LUXURY TYPE	12/1979 - 07/1980	1
71410-90081	BJ4#	02/1979 - 07/1980	1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-90085	BJ41..V LUXURY TYPE	12/1979 - 07/1980	1
71420-90083	BJ41..V	02/1979 - 07/1980	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-90084	BJ4#	02/1979 - 07/1980	1
71430-90089	BJ41..V LUXURY TYPE	12/1979 - 07/1980	1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-90084	BJ4#	02/1979 - 07/1980	1
71440-90270	BJ41..V LUXURY TYPE	12/1979 - 07/1980	1
71821 - SHIELD, FRONT SEAT SIDE, RH
71821-90300	BJ4#	02/1979 - 07/1980	1
71821-90302	BJ41..VKC THE MIGHTY BJ	05/1980 - 05/1980	1
71821-90301	BJ41..V LUXURY TYPE	12/1979 - 07/1980	1
71822 - SHIELD, FRONT SEAT SIDE, LH
71822-90302	BJ41..VKC THE MIGHTY BJ	05/1980 - 05/1980	1
71822-90301	BJ41..V LUXURY TYPE	12/1979 - 07/1980	1
71822-90300	BJ4#	02/1979 - 07/1980	1
71822 - SHIELD, FRONT SEAT SIDE, LH
71822-90302	BJ41..VKC THE MIGHTY BJ	05/1980 - 05/1980	1
71822-90301	BJ41..V LUXURY TYPE	12/1979 - 07/1980	1
71822-90300	BJ4#	02/1979 - 07/1980	1
71950 - HEADREST ASSY, FRONT SEAT
71950-90301	BJ4#	02/1979 - 07/1980	2
71950-90303	BJ41..VKC THE MIGHTY BJ	05/1980 - 05/1980	2
71950-90302	BJ41..V LUXURY TYPE	12/1979 - 07/1980	2
71998 - GROMMET, FRONT SEAT HEADREST, RH
71956-90301	BJ41..V LUXURY TYPE	12/1979 - 07/1980	2
71956-3002001	BJ4# BLACK	02/1979 - 07/1980	2
71956-3002001	BJ41..VKC THE MIGHTY BJ,BLACK	05/1980 - 05/1980	2
71999 - GROMMET, FRONT SEAT HEADREST, LH
71990-3002001	BJ4# BLACK	02/1979 - 07/1980	2
71990-3002001	BJ41..VKC THE MIGHTY BJ,BLACK	05/1980 - 05/1980	2
71990-90300	BJ41..V LUXURY TYPE	12/1979 - 07/1980	2
72104 - PLATE SUB-ASSY, SEAT TRACK STOPPER
72104-90301	BJ41..V	02/1979 - 07/1980	1
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
90506-20018	BJ41..V	02/1979 - 07/1980	1
72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
72110-90333	BJ4#	02/1979 - 07/1980	1
72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)
72140-90333	BJ41..V	02/1979 - 07/1980	1
72130 - TRACK ASSY, RH SEAT, INNER
72130-90333	BJ4#	02/1979 - 07/1980	1
72140 - TRACK ASSY, LH SEAT, INNER
72150-90333	BJ41..V	02/1979 - 07/1980	1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-90300	BJ41..V	02/1979 - 07/1980	1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72570-90300	BJ41..V	02/1979 - 07/1980	1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72570-90300	BJ41..V	02/1979 - 07/1980	1
72524 - HANDLE, RECLINING ADJUSTER RELEASE
72525-1401001	BJ41..VKC THE MIGHTY BJ,RH,BLACK	05/1980 - 05/1980	1
72525-1401001	BJ4# RH.,BLACK	02/1979 - 07/1980	1
72526-1401001	BJ41..VKC THE MIGHTY BJ,LH,BLACK	05/1980 - 05/1980	1
72526-1401001	BJ4# LH.,BLACK	02/1979 - 07/1980	1
72525-90300	BJ41..V RH.,LUXURY TYPE	12/1979 - 07/1980	1
72526-90300	BJ41..V LH.,LUXURY TYPE	12/1979 - 07/1980	1
72524 - HANDLE, RECLINING ADJUSTER RELEASE
72525-1401001	BJ41..VKC THE MIGHTY BJ,RH,BLACK	05/1980 - 05/1980	1
72525-1401001	BJ4# RH.,BLACK	02/1979 - 07/1980	1
72526-1401001	BJ41..VKC THE MIGHTY BJ,LH,BLACK	05/1980 - 05/1980	1
72526-1401001	BJ4# LH.,BLACK	02/1979 - 07/1980	1
72525-90300	BJ41..V RH.,LUXURY TYPE	12/1979 - 07/1980	1
72526-90300	BJ41..V LH.,LUXURY TYPE	12/1979 - 07/1980	1
72524 - HANDLE, RECLINING ADJUSTER RELEASE
72525-1401001	BJ41..VKC THE MIGHTY BJ,RH,BLACK	05/1980 - 05/1980	1
72525-1401001	BJ4# RH.,BLACK	02/1979 - 07/1980	1
72526-1401001	BJ41..VKC THE MIGHTY BJ,LH,BLACK	05/1980 - 05/1980	1
72526-1401001	BJ4# LH.,BLACK	02/1979 - 07/1980	1
72525-90300	BJ41..V RH.,LUXURY TYPE	12/1979 - 07/1980	1
72526-90300	BJ41..V LH.,LUXURY TYPE	12/1979 - 07/1980	1
72553 - COVER, RECLINING PEDAL
72553-12020	BJ41..V	02/1979 - 07/1980	1
72590 - CABLE ASSY, SEAT BACK CONTROL
72210-90300	BJ41..V	02/1979 - 07/1980	1
Common parts
71812-30010
90119-08079
90119-10037
90154-80045
90386-12099
90564-14155
91616-61025
91666-61025
93540-55010
94611-20800
96160-01000
