BJ41V-KCY (1979)

Toyota Land Cruiser Van

Production Feb 1979 - Jul 1980
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-8007)BJ4#,FJ4#

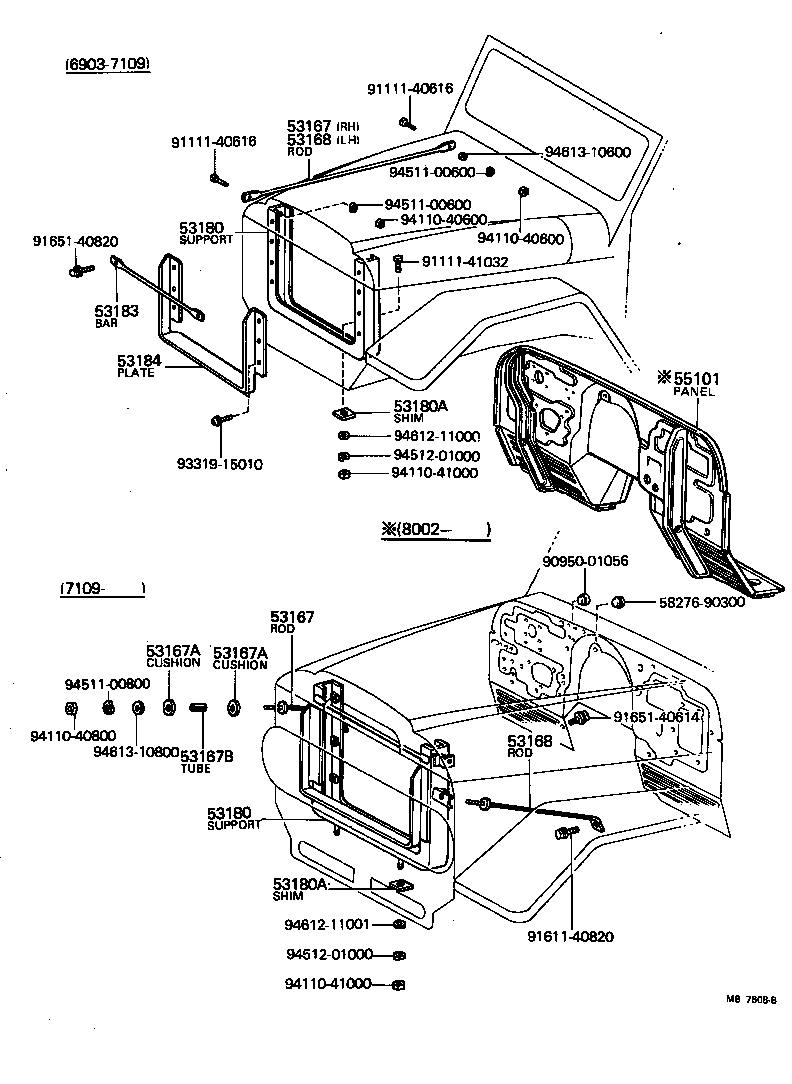

Click highlighted areas on diagram

diagram 53167 53167 53167A 53167A 53167B 53168 53168 53180 53180 53180A 53180A 53183 53184 55101 5827690300 9095001056 9111140616 9111140616 9111141032 9161140820 9165140614 9165140820 9331915010 9411040600 9411040600 9411040800 9411041000 9411041000 9451100600 9451100600 9451100800 9451201000 9451201000 9461211000 9461211001 9461310600 9461310800
Part # Description Qty Price
53180 - SUPPORT ASSY, RADIATOR
53201-60011

BJ4#

 1
53180 - SUPPORT ASSY, RADIATOR
53201-60011

BJ4#

 1
53180A - SHIM(FOR RADIATOR SUPPORT)
90950-04010

BJ4#,FJ4#

 2
53180A - SHIM(FOR RADIATOR SUPPORT)
90950-04010

BJ4#,FJ4#

 2
55101 - PANEL SUB-ASSY, DASH
55101-90286

BJ4#

 1
Common parts
58276-90300
90950-01056
91111-40616
91111-41032
91611-40820
91651-40614
91651-40820
93319-15010
94110-40600
94110-40800
94110-41000
94511-00600
94511-00800
94512-01000
94612-11000
94612-11001
94613-10600
94613-10800
