BJ41V-KCY (1979)

Toyota Land Cruiser Van

Production Feb 1979 - Jul 1980
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-8007)BJ4#,FJ4#

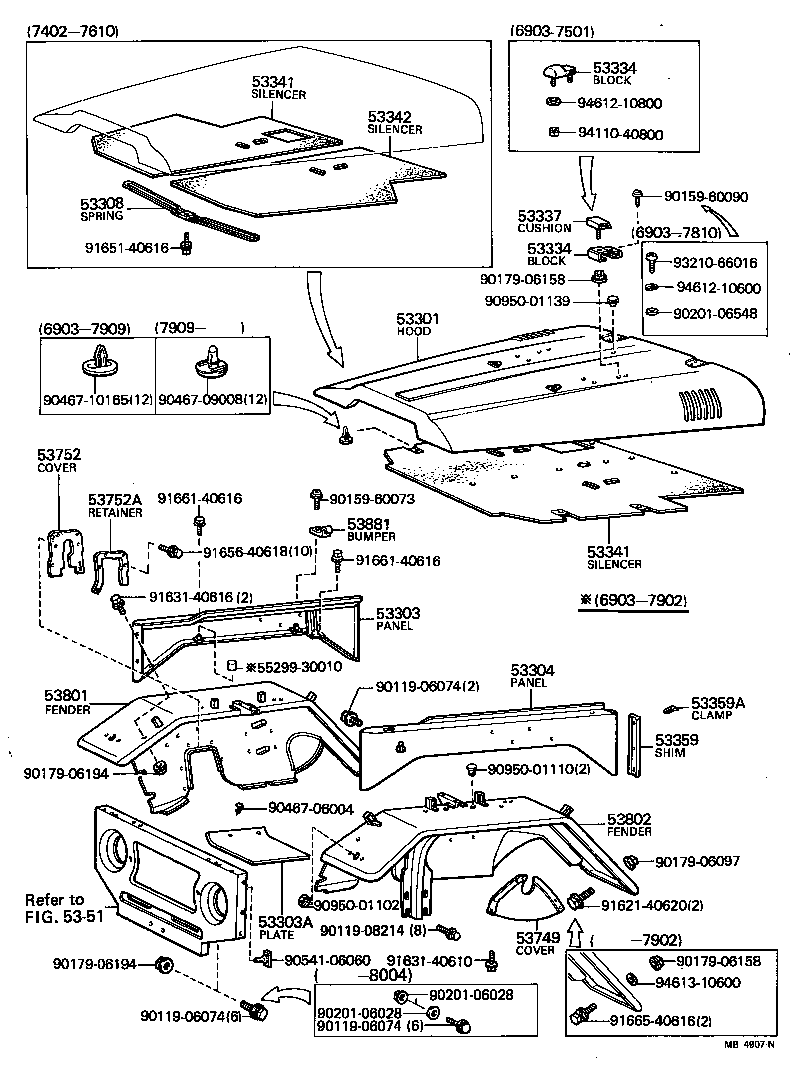

Click highlighted areas on diagram

diagram 53301 53303 53303A 53304 53308 53334 53334 53337 53341 53341 53342 53359 53359A 5351 53749 53752 53752A 53801 53802 53881 5529930010 9011906074 9011906074 9011906074 9011908214 9015960073 9015960090 9017906097 9017906158 9017906158 9017906194 9017906194 9020106028 9020106028 9020106548 9046706004 9046709008 9046710165 9054106060 9095001102 9095001110 9095001139 9162140620 9163140610 9163140616 9165140616 9165640618 9166140616 9166140616 9166540616 9321066016 9411040800 9461210600 9461210800 9461310600
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-90801

BJ4#

 1
53301-90316

BJ4#

 1
53303 - PANEL SUB-ASSY, HOOD SIDE, RH
53303-90304

BJ4#

 1
53334 - BLOCK, WINDSHIELD REST
53334-90305

BJ41..V

LUXURY TYPE

 2
53334 - BLOCK, WINDSHIELD REST
53334-90305

BJ41..V

LUXURY TYPE

 2
53341 - SILENCER, HOOD, NO.1
53316-90800

BJ4#

 1
53319-90300

BJ4#

 1
53341 - SILENCER, HOOD, NO.1
53316-90800

BJ4#

 1
53319-90300

BJ4#

 1
53359 - SHIM, HOOD SIDE PANEL CUSHION
53359-90301

BJ4#,FJ4#

 2
53801 - FENDER SUB-ASSY, FRONT RH
53810-90339

BJ4#

 1
53802 - FENDER SUB-ASSY, FRONT LH
53820-90078

BJ4#

 1
Common parts
55299-30010
90119-06074
90119-08214
90159-60073
90159-60090
90179-06097
90179-06158
90179-06194
90201-06028
90201-06548
90467-06004
90467-09008
90467-10165
90541-06060
90950-01102
90950-01110
90950-01139
91621-40620
91631-40610
91631-40616
91651-40616
91656-40618
91661-40616
91665-40616
93210-66016
94110-40800
94612-10600
94612-10800
94613-10600
Linked diagrams
5351
