BJ41V-KCY (1979)

Toyota Land Cruiser Van

Production Feb 1979 - Jul 1980
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7902-8007)BJ4#

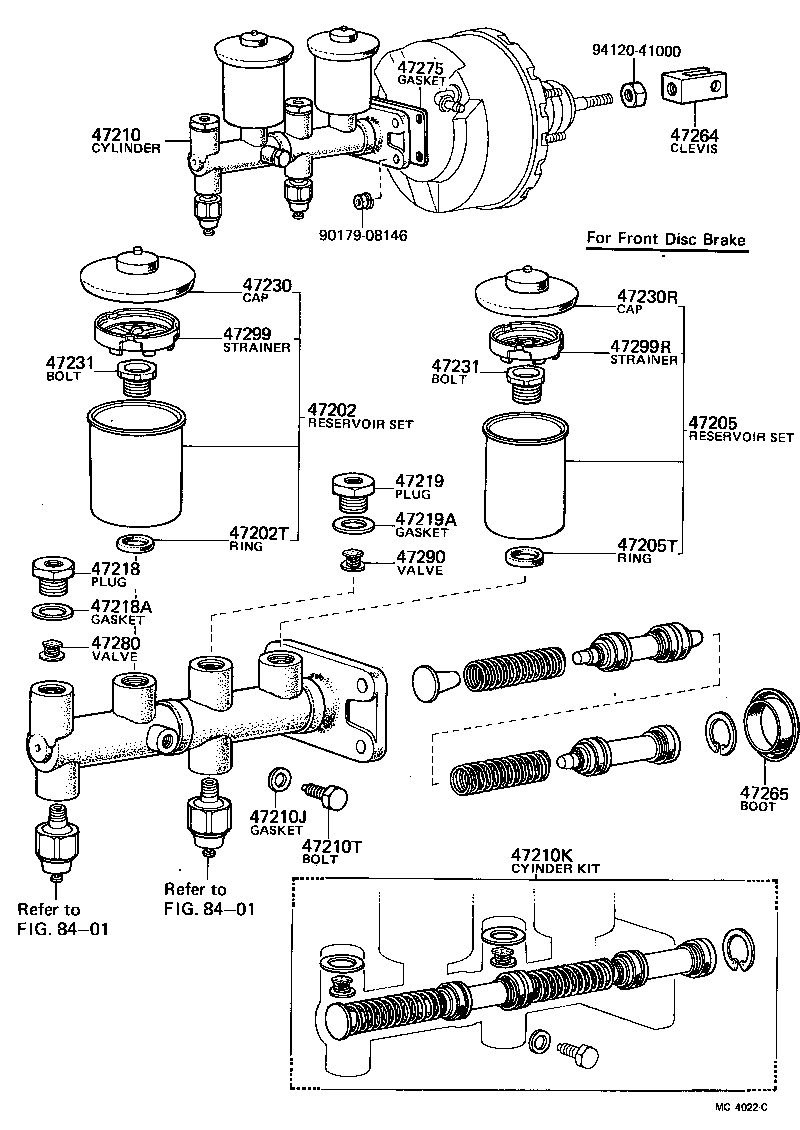

Click highlighted areas on diagram

diagram 47202 47202T 47205 47205T 47210 47210J 47210K 47210T 47218 47218A 47219 47219A 47230 47230R 47231 47231 47264 47265 47275 47280 47290 47299 47299R 8401 8401 9017908146 9412041000
Part # Description Qty Price
47210 - CYLINDER ASSY, MASTER, W/O BOOSTER
47201-60050

BJ4#

FOR FRONT DISC BRAKE

 1
47201-60031

BJ4#,FJ56

FOR FRONT DRUM BRAKE

 1
47210K - CYLINDER KIT, BRAKE MASTER
04493-60040

BJ4#

FOR FRONT DISC BRAKE

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06008

BJ4#,FJ56

 1
47218 - PLUG, MASTER CYLINDER FLUID OUTLET
47218-20010

BJ4#

FOR FRONT DISC BRAKE

 1
47218A - GASKET(FOR FLUID OUTLET PLUG)
90430-16242

BJ4#

FOR FRONT DISC BRAKE

 1
47219 - PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE)
47218-20010

BJ4#

FOR FRONT DISC BRAKE

 1
47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE)
90430-16242

BJ4#

FOR FRONT DISC BRAKE

 1
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-35010

BJ4#,FJ4#,5#

 1
47265 - BOOT, MASTER CYLINDER
47265-35030

BJ4#,FJ56

FOR FRONT DRUM BRAKE

 1
47265-20050

BJ4#

FOR FRONT DISC BRAKE

 1
47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK
47280-20020

BJ4#

FOR FRONT DISC BRAKE

 1
47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)
47280-20020

BJ4#

FOR FRONT DISC BRAKE

 1
Common parts
90179-08146
94120-41000
Linked diagrams
8401
