BJ40V-KC (1974)

Toyota Land Cruiser Van

Production Feb 1974 - Feb 1979
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7402-7709)B

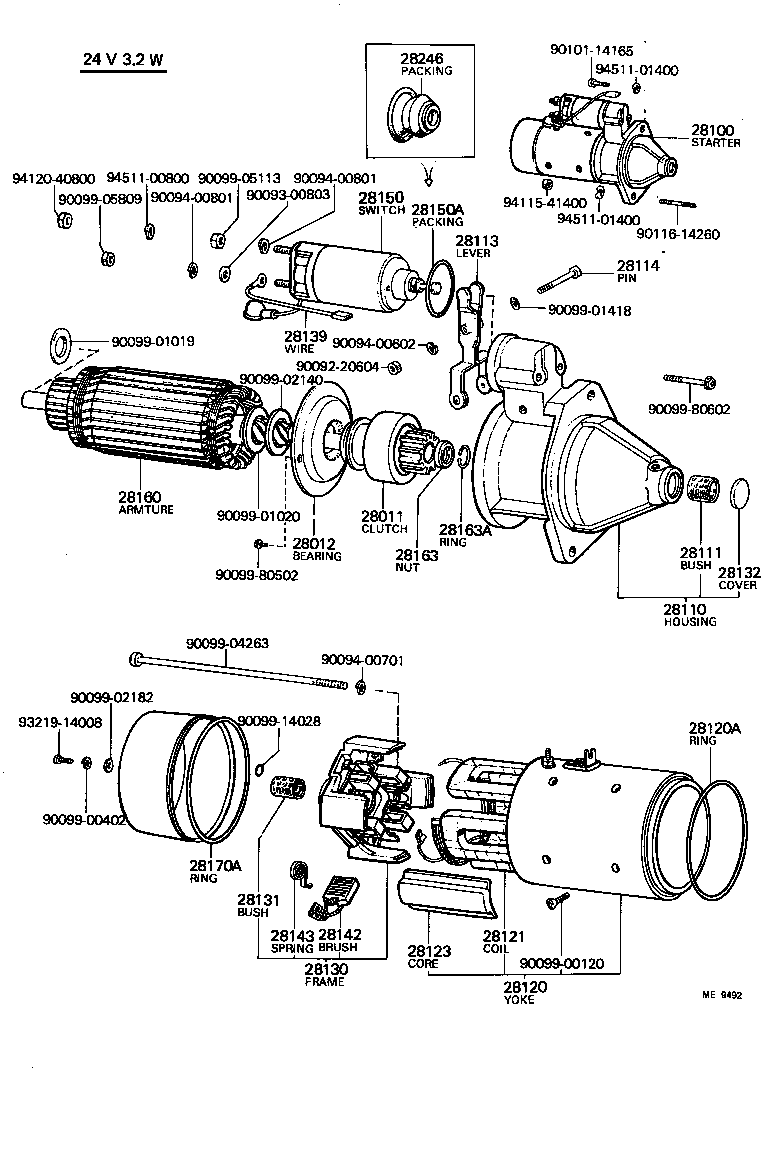

Click highlighted areas on diagram

diagram 28011 28012 28100 28110 28111 28113 28114 28120 28120A 28121 28123 28130 28131 28132 28139 28142 28143 28150 28150A 28160 28163 28163A 28170A 28246 9009220604 9009300803 9009400602 9009400701 9009400801 9009400801 9009900120 9009900402 9009901019 9009901020 9009901418 9009902140 9009902182 9009904263 9009905113 9009905809 9009914028 9009980502 9009980602 9010114165 9011614260 9321914008 9411541400 9412040800 9451100800 9451101400 9451101400
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-56011

B..BJ4#

 1
28012 - BEARING SUB-ASSY, CENTER
28012-56010

B..BJ4#

 1
28100 - STARTER ASSY
28100-56010

B..BJ4#

24V 3.2KW

 1
28100-56011

B..BJ4#

24V 3.2KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-56011

B..BJ4#

 1
28110-56012

B..BJ4#

 1
28110-56010

B..BJ4#

 1
28111 - BUSH(FOR STARTER HOUSING)
28111-46011

B..BJ4#

 1
28113 - LEVER, STARTER PINION DRIVE
28113-56011

B..BJ4#

 1
28114 - PIN, STARTER DRIVE LEVER SET
28114-46010

B..BJ4#

 1
28120 - YOKE ASSY, STARTER
28120-56011

B..BJ4#

 1
28120-56010

B..BJ4#

 1
28120A - RING, O(FOR STARTER YOKE)
90099-14027

B..BJ4#

 1
28121 - COIL, STARTER FIELD
28121-56010

B..BJ4#

 1
28123 - CORE, STARTER POLE
28123-46011

B..BJ4#

 4
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-56010

B..BJ4#

 1
28131 - BUSH, COMMUTATOR END FRAME
28111-46011

B..BJ4#

 1
28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING)
28166-21010

B..BJ4#

 1
28139 - WIRE, LEAD, NO.1(FOR STARTER)
28139-46010

B..BJ4#

 1
28142 - BRUSH, STARTER
28142-46020

B..BJ4#

 4
28143 - SPRING, STARTER BRUSH
28143-46011

B..BJ4#

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-56010

B..BJ4#

 1
28150-56011

B..BJ4#

 1
28150A - PACKING(FOR STARTER MAGNET SWITCH)
90099-14029

B..BJ4#

 1
28160 - ARMATURE ASSY, STARTER
28160-56010

B..BJ4#

 1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-46010

B..BJ4#

 1
28163A - RING, SNAP(FOR STARTER PINION STOP NUT)
90099-07049

B..BJ4#

 1
28170A - RING, O(FOR STARTER COVER)
90099-14023

B..BJ4#

 1
28246 - COVER, MAGNET SWITCH
28246-56011

B..BJ4#

 1
Common parts
90092-20604
90093-00803
90094-00602
90094-00701
90094-00801
90099-00120
90099-00402
90099-01019
90099-01020
90099-01418
90099-02140
90099-02182
90099-04263
90099-05113
90099-05809
90099-14028
90099-80502
90099-80602
90101-14165
90116-14260
93219-14008
94115-41400
94120-40800
94511-00800
94511-01400
