BJ40-KCJ (1974)

Toyota Land Cruiser Van

Production Feb 1974 - Feb 1979
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-8007)BJ4#,FJ4#

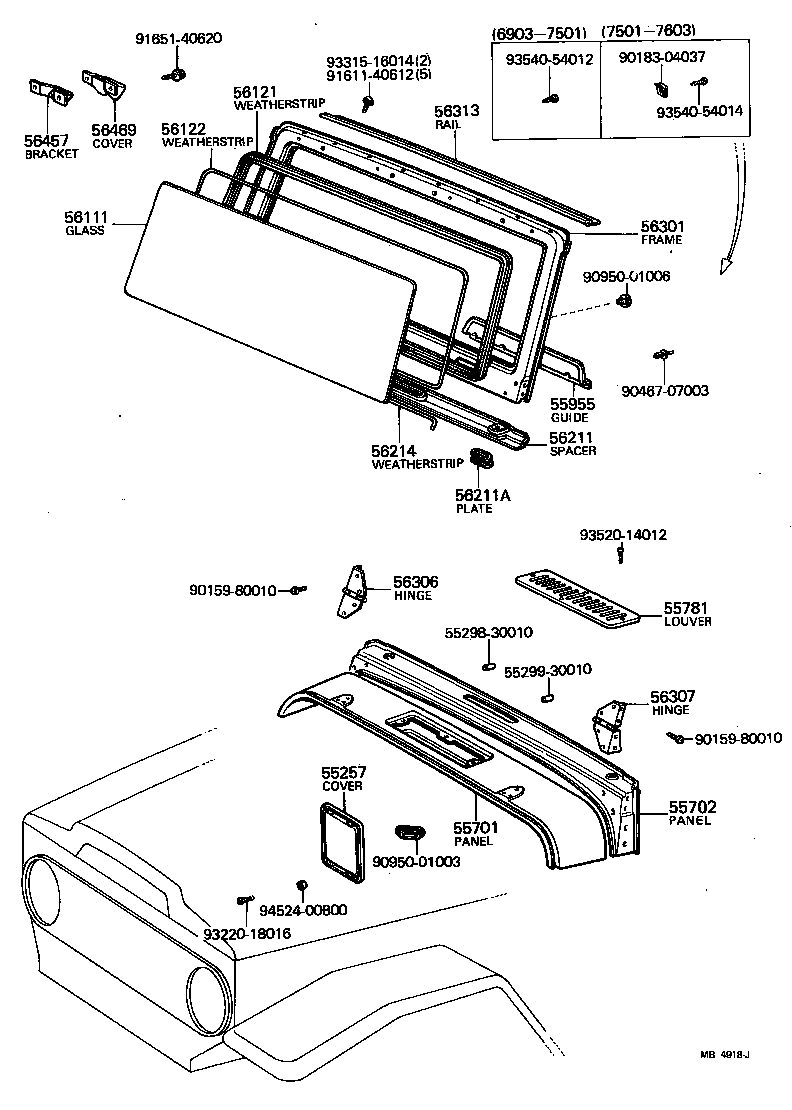

Click highlighted areas on diagram

diagram 55257 5529830010 5529930010 55701 55702 55781 55955 56111 56121 56122 56211 56211A 56214 56301 56306 56307 56313 56457 56469 9015980010 9015980010 9018304037 9046707003 9095001003 9095001006 9161140612 9165140620 9322018016 9331516014 9352014012 9354054012 9354054014 9452400800
Part # Description Qty Price
55781 - LOUVER, COWL VENTILATOR
55768-60010

BJ4#,FJ4#

 1
55955 - GUIDE, DEFROSTER NOZZLE
55955-90300

BJ4#,FJ4#

 2
56111 - GLASS, WINDSHIELD
56111-60040

BJ4#,FJ4#

LM.T=6.7

 1
56111-90301

BJ4#,FJ4#

LM.T=6.7

 1
56121 - WEATHERSTRIP, WINDSHIELD
56121-60011

BJ4#,FJ4#

FOR GLASS T=6.7&6.3

 1
56121-90301

BJ4#,FJ4#

FOR GLASS T=6.7

 1
56122 - WEATHERSTRIP, WINDSHIELD, NO.2
56122-60011

BJ4#,FJ4#

 1
56211 - SPACER, WINDSHIELD
56211-90300

BJ4#,FJ4#

 1
56301 - FRAME SUB-ASSY, WINDSHIELD
56301-90318

BJ4#,FJ4#

 1
56301-90324

BJ4#

 1
56306 - HINGE SUB-ASSY, WINDSHIELD SUPPORT, RH
56306-90300

BJ4#,FJ4#

 1
56306-90301

BJ4#,FJ4#

 1
56307 - HINGE SUB-ASSY, WINDSHIELD SUPPORT, LH
56307-90301

BJ4#,FJ4#

 1
56307-90300

BJ4#,FJ4#

 1
56313 - RAIL, WINDSHIELD FRAME, UPPER
56313-90300

BJ4#,FJ4#

 1
56457 - BRACKET, WINDSHIELD CATCH, UPPER
56457-60010

BJ4#,FJ4#

 2
Common parts
55298-30010
55299-30010
90159-80010
90183-04037
90467-07003
90950-01003
90950-01006
91611-40612
91651-40620
93220-18016
93315-16014
93520-14012
93540-54012
93540-54014
94524-00800
