BJ40-KC (1974)

Toyota Land Cruiser Van

Production Feb 1974 - Feb 1979
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7402-7704)BJ4#

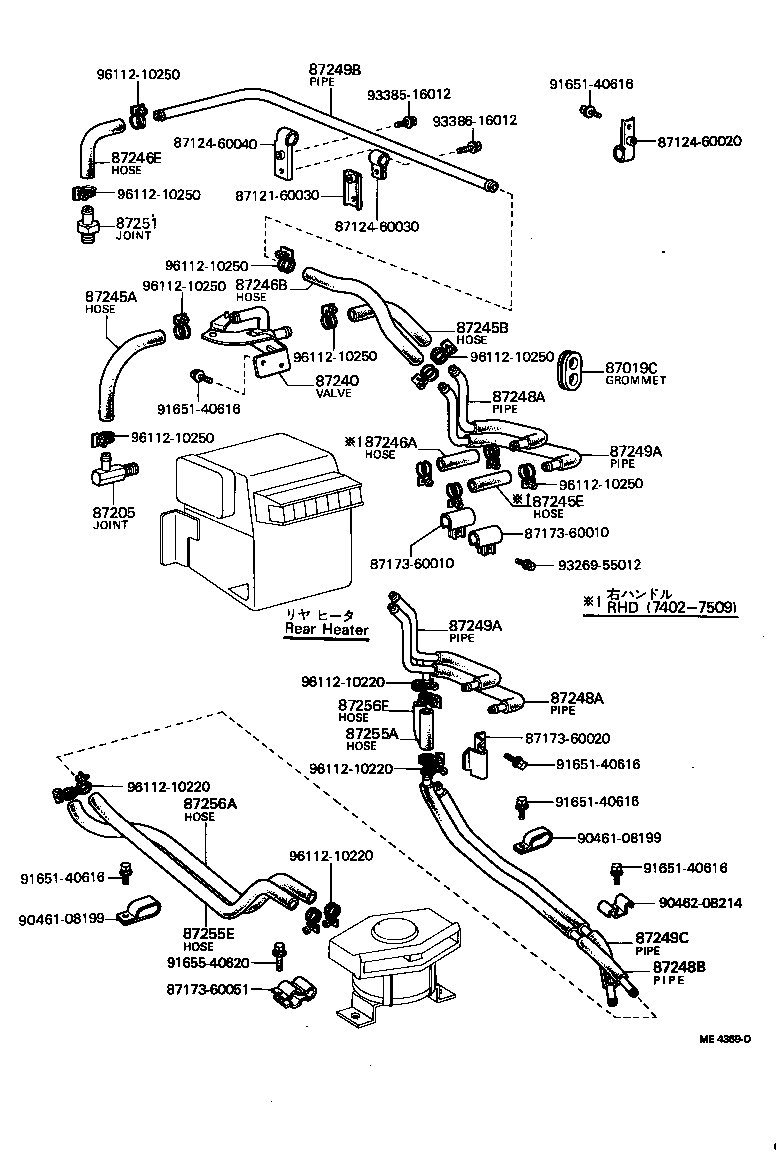

Click highlighted areas on diagram

diagram 87019C 8712160030 8712460020 8712460030 8712460040 8717360010 8717360010 8717360020 8717360051 87205 87240 87245A 87245B 87245E 87246A 87246B 87246E 87248A 87248A 87248B 87249A 87249A 87249B 87249C 87251 87255A 87255E 87256A 87256E 9046108199 9046108199 9046208214 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165540620 9326955012 9338516012 9338616012 9611210220 9611210220 9611210220 9611210220 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01167

BJ4#,FJ4#,5#

 1
87245E - HOSE, HEATER WATER, INLET E
99552-30055

BJ4#,FJ5#

L=55

 1
87246A - HOSE, HEATER WATER, OUTLET A
99552-30055

BJ4#,FJ5#

L=55

 1
87248A - PIPE, HEATER WATER INLET, A
87248-60250

BJ4#

FOR W/REAR HEATER

 1
87248A - PIPE, HEATER WATER INLET, A
87248-60250

BJ4#

FOR W/REAR HEATER

 1
87248B - PIPE, HEATER WATER INLET, B
87248-60122

BJ4#

 1
87249A - PIPE, HEATER WATER OUTLET, A
87249-60120

BJ4#

FOR W/REAR HEATER

 1
87249A - PIPE, HEATER WATER OUTLET, A
87249-60120

BJ4#

FOR W/REAR HEATER

 1
87249C - PIPE, HEATER WATER OUTLET, C
87248-60132

BJ4#

 1
Common parts
87121-60030
87124-60020
87124-60030
87124-60040
87173-60010
87173-60020
87173-60051
90461-08199
90462-08214
91651-40616
91655-40620
93269-55012
93385-16012
93386-16012
96112-10220
96112-10250
