BJ40-KC (1974)

Toyota Land Cruiser Van

Production Feb 1974 - Feb 1979
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-8007)BJ4#,FJ4#

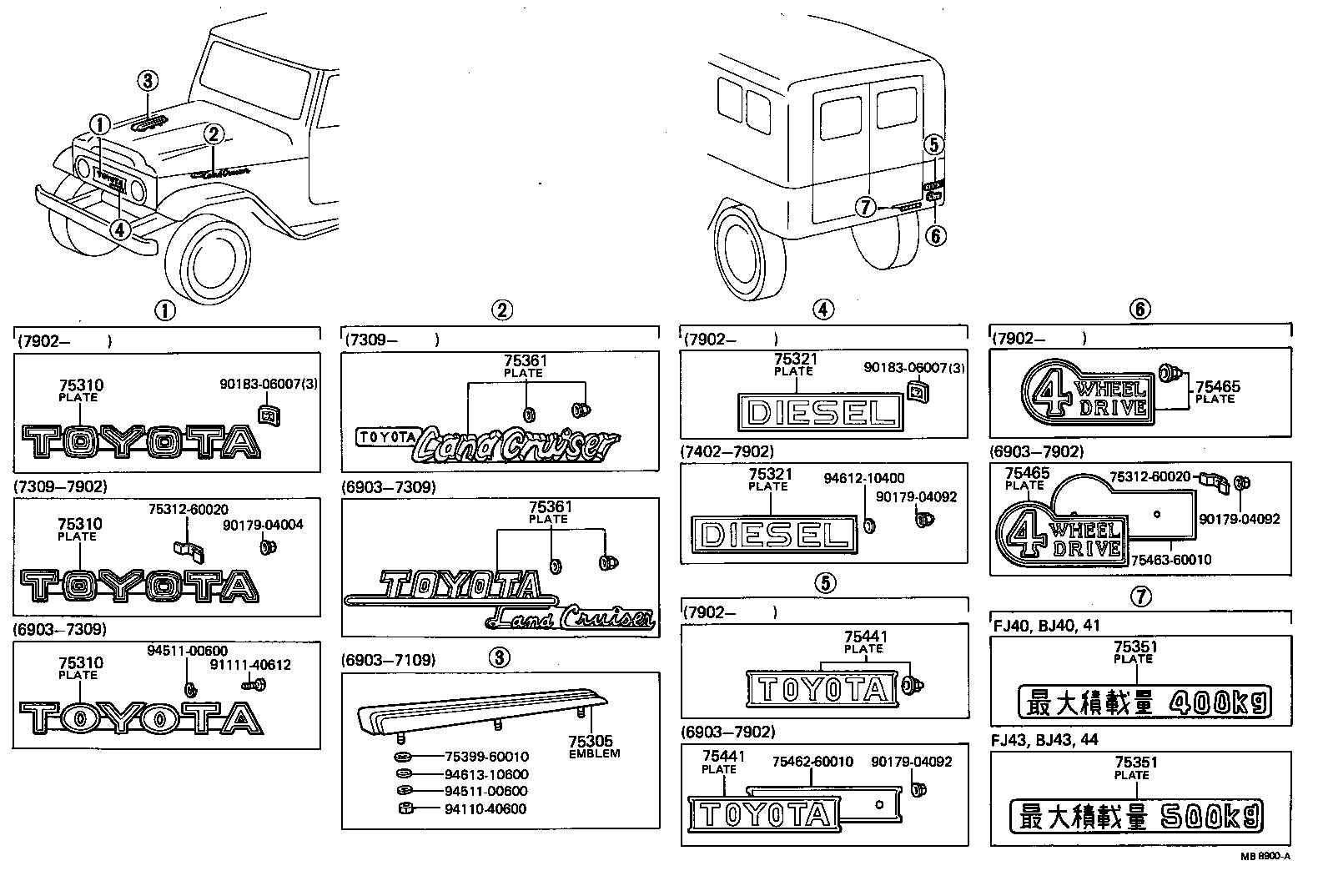

Click highlighted areas on diagram

diagram 75305 75310 75310 75310 7531260020 7531260020 75321 75321 75351 75351 75361 75361 7539960010 75441 75441 7546260010 7546360010 75465 75465 9017904004 9017904092 9017904092 9017904092 9018306007 9018306007 9111140612 9411040600 9451100600 9451100600 9461210400 9461310600
Part # Description Qty Price
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75325-90300

BJ4#

 1
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75325-90300

BJ4#

 1
75351 - PLATE, REAR NAME, NO.6 (MAXIMUM LOAD)
75472-60010

BJ40,41,FJ40

400KG,400KG.

 1
75351 - PLATE, REAR NAME, NO.6 (MAXIMUM LOAD)
75472-60010

BJ40,41,FJ40

400KG,400KG.

 1
75441 - PLATE, REAR NAME, NO.1
75450-60011

BJ4#,FJ4#

TOYOTA

 1
75441 - PLATE, REAR NAME, NO.1
75450-60011

BJ4#,FJ4#

TOYOTA

 1
75465 - PLATE, REAR NAME, NO.5 (MECHANISM)
75453-60012

BJ4#,FJ4#

 1
75465 - PLATE, REAR NAME, NO.5 (MECHANISM)
75453-60012

BJ4#,FJ4#

 1
Common parts
75312-60020
75399-60010
75462-60010
75463-60010
90179-04004
90179-04092
90183-06007
91111-40612
94110-40600
94511-00600
94612-10400
94613-10600
