PZJ77HV-MRU (1990)
Toyota Land Cruiser S/T,H/T
Production
Apr 1990
-
Aug 1992
Engine
1PZ
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9004- )HZJ76,77,KZJ78,LJ78,PZJ77

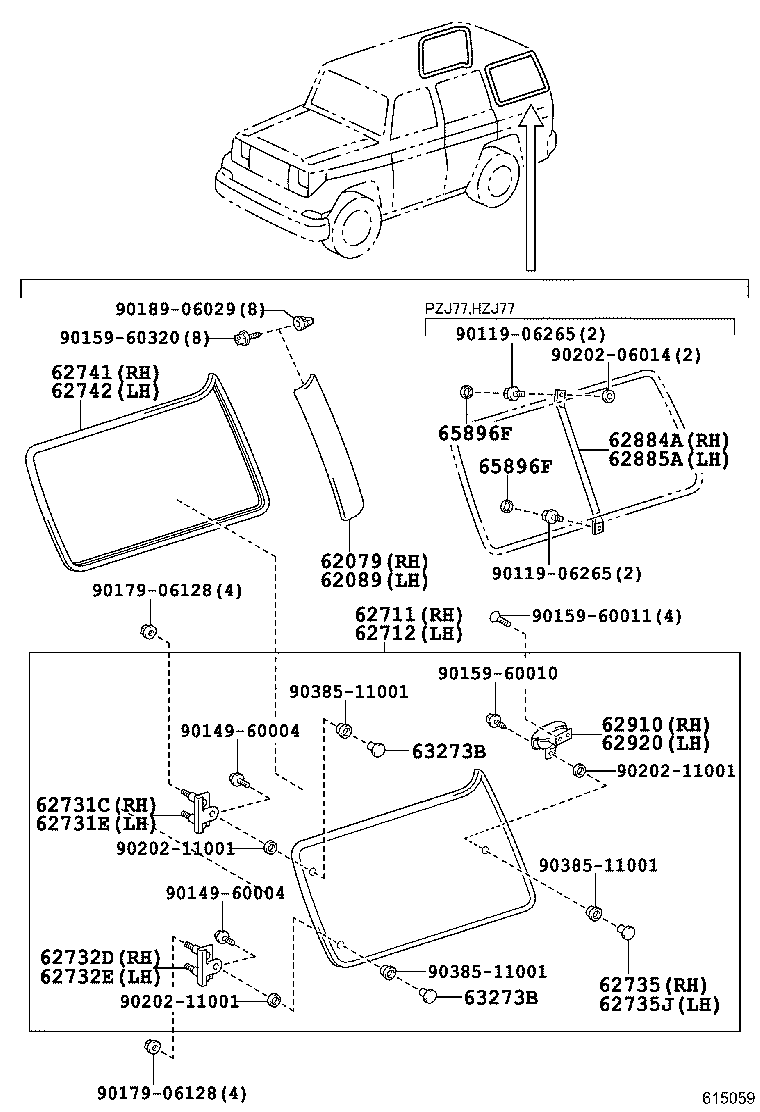

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62731C - HINGE, QUARTER WINDOW, RH | ||||
| 62731-60010 |
HZJ77..ZX;HZJ76,LJ78,PZJ77 |
1 | ||
| 62731E - HINGE, QUARTER WINDOW, LH | ||||
| 62731-60010 |
HZJ77..ZX;HZJ76,LJ78,PZJ77 |
1 | ||
| 62732D - HINGE, QUARTER WINDOW, NO.2, RH | ||||
| 62732-60010 |
HZJ77..ZX;HZJ76,LJ78,PZJ77 |
1 | ||
| 62732E - HINGE, QUARTER WINDOW, LH | ||||
| 62732-60010 |
HZJ77..ZX;HZJ76,LJ78,PZJ77 |
1 | ||
| 62735 - RETAINER, QUARTER WINDOW HINGE | ||||
| 62735-14010 |
HZJ77..ZX;HZJ76,LJ78,PZJ77 |
1 | ||
| 62735J - RETAINER, QUARTER WINDOW HINGE, LH | ||||
| 62735-14010 |
HZJ77,LJ78..(SX5,ZX)..(1NO,5NO);HZJ76,LJ78,PZJ77..EX,EX5,LX,LX5,STD,ZX |
1 | ||
| 62741 - WEATHERSTRIP, QUARTER WINDOW, RH | ||||
| 62741-60060 |
HZJ77..ZX;HZJ76,LJ78,PZJ77 |
1 | ||
| 62742 - WEATHERSTRIP, QUARTER WINDOW, LH | ||||
| 62741-60060 |
HZJ77..ZX;HZJ76,LJ78,PZJ77 |
1 | ||
| 62910 - LOCK ASSY, QUARTER OR SIDE WINDOW, RH | ||||
| 62910-60010 |
HZJ77..ZX;HZJ76,LJ78,PZJ77 |
1 | ||
| 62920 - LOCK ASSY, QUARTER WINDOW, LH | ||||
| 62910-60010 |
HZJ77..ZX;HZJ76,LJ78,PZJ77 |
1 | ||
| 63273B - RETAINER, ROOF WINDOW HINGE | ||||
| 63273-95701 |
HZJ77..ZX;HZJ76,LJ78,PZJ77 |
2 | ||
| 63273B - RETAINER, ROOF WINDOW HINGE | ||||
| 63273-95701 |
HZJ77..ZX;HZJ76,LJ78,PZJ77 |
2 | ||
| 65896F - CAP, COVER TOP SET BOLT | ||||
| 65896-90K00 |
HZJ7#,PZJ7#..HT |
4 | ||
| 65896F - CAP, COVER TOP SET BOLT | ||||
| 65896-90K00 |
HZJ7#,PZJ7#..HT |
4 | ||
| Common parts | ||||
| 90119-06265 | ||||
| 90149-60004 | ||||
| 90159-60010 | ||||
| 90159-60011 | ||||
| 90159-60320 | ||||
| 90179-06128 | ||||
| 90189-06029 | ||||
| 90202-06014 | ||||
| 90202-11001 | ||||
| 90385-11001 | ||||
