PZJ77HV-MRU (1990)
Toyota Land Cruiser S/T,H/T
Production
Apr 1990
-
Aug 1992
Engine
1PZ
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

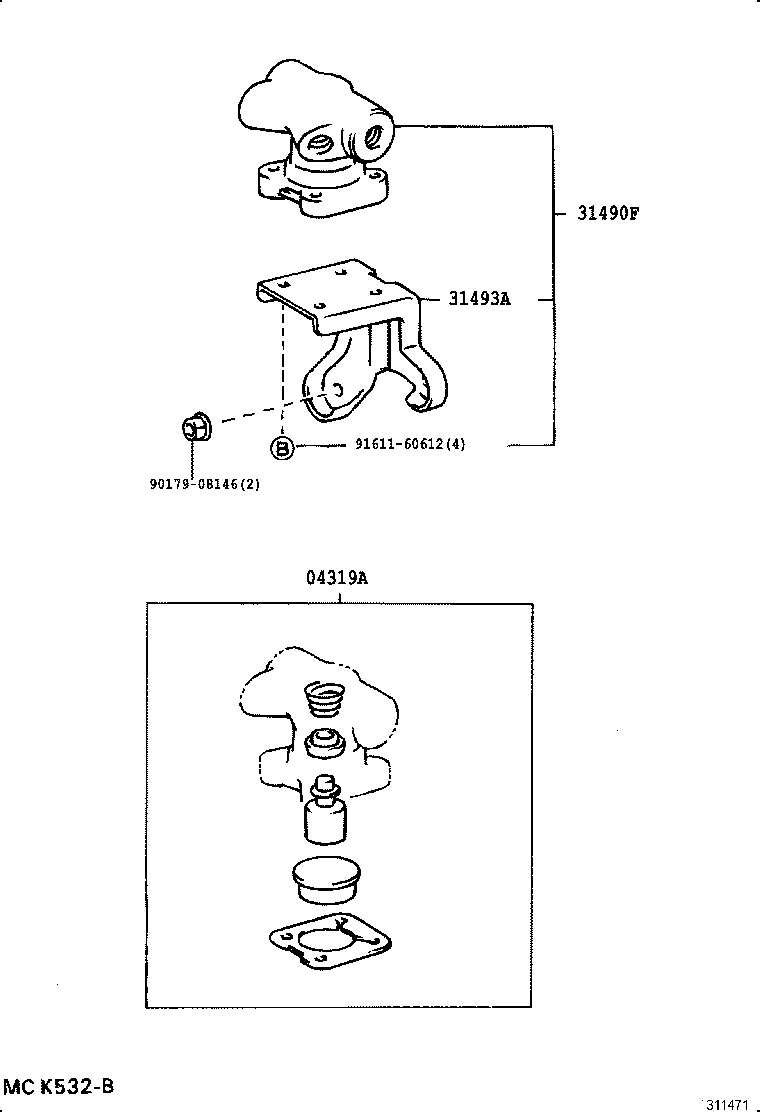

ILLUST NO. 2 OF 2(9001-9908)HZJ7#,PZJ7#..MTM
Click highlighted areas on diagram
ｱﾘ(ｸﾗﾂﾁ ﾌﾞ-ｽﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04319A - CYLINDER KIT, CLUTCH ACCUMULATOR | ||||
| 04319-36011 |
PZJ7#..STD ｱﾘ(ｸﾗﾂﾁ ﾌﾞ-ｽﾀ) |
1 | ||
| 31490F - ACCUMULATOR ASSY, MASTER CYLINDER | ||||
| 31490-60050 |
PZJ7#..STD ｱﾘ(ｸﾗﾂﾁ ﾌﾞ-ｽﾀ) |
1 | ||
| 31490-60020 |
PZJ7#..STD |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 91611-60612 | ||||

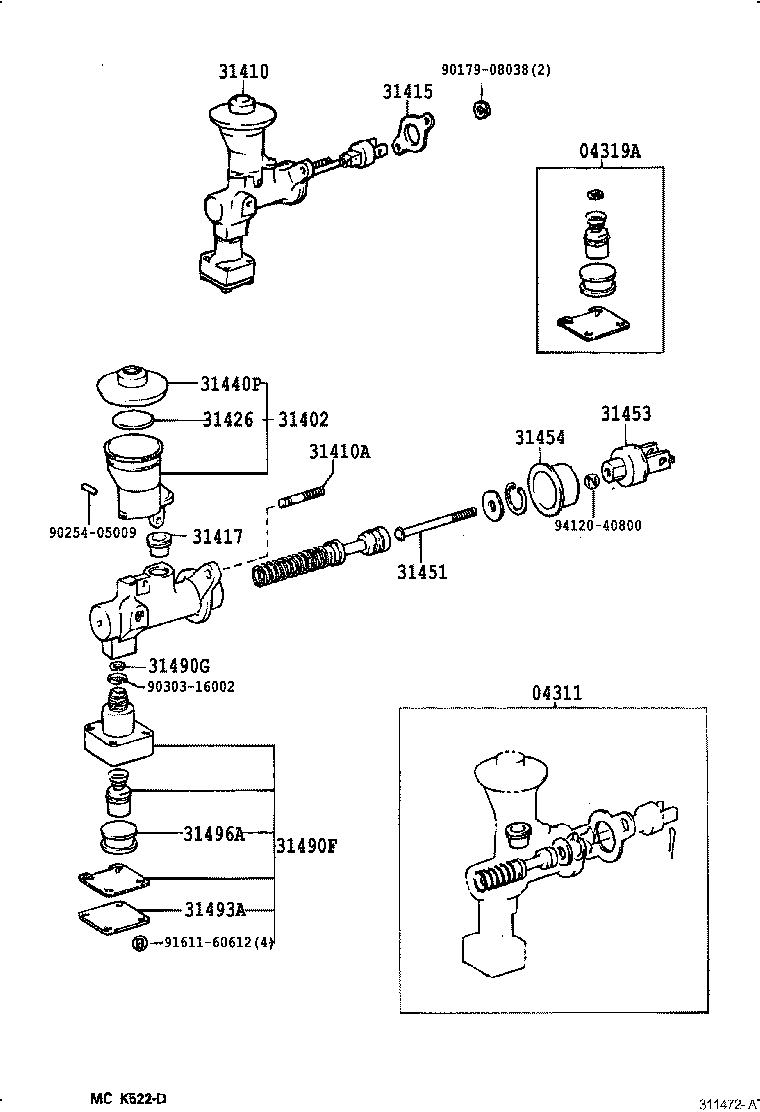

ILLUST NO. 1 OF 2(9001-9401)PZJ7#..STD ; (9401-9405)SOT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04311 - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-60110 |
PZJ7#..STD ｱﾘ(ｸﾗﾂﾁ ﾌﾞ-ｽﾀ) |
1 | ||
| 04311-60100 |
FJ75,PZJ7#..STD |
1 | ||
| 04319A - CYLINDER KIT, CLUTCH ACCUMULATOR | ||||
| 04319-36011 |
PZJ7#..STD ｱﾘ(ｸﾗﾂﾁ ﾌﾞ-ｽﾀ) |
1 | ||
| 31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER | ||||
| 31402-35030 |
FJ75,PZJ7#..STD |
1 | ||
| 31402-20050 |
PZJ7#..STD ｱﾘ(ｸﾗﾂﾁ ﾌﾞ-ｽﾀ) |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31410-60430 |
PZJ7#..STD |
1 | ||
| 31401-60060 |
PZJ7#..STD ｱﾘ(ｸﾗﾂﾁ ﾌﾞ-ｽﾀ) |
1 | ||
| 31415 - GASKET, CLUTCH MASTER CYLINDER | ||||
| 31415-60010 |
PZJ7#..STD ｱﾘ(ｸﾗﾂﾁ ﾌﾞ-ｽﾀ) |
1 | ||
| 31415-60020 |
FJ75,PZJ7#..STD |
1 | ||
| 31417 - GROMMET, CLUTCH RESERVOIR | ||||
| 31417-35010 |
HZJ73,77..MTM..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#..MTM |
1 | ||
| 31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR | ||||
| 31426-30011 |
HZJ73,77..MTM..ZX;FJ75,HZJ71,74,75,76,79,PZJ7#..MTM |
1 | ||
| 31440P - CAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20040 |
HZJ73,77..MTM..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#..MTM |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31404-36031 |
PZJ7#..STD |
1 | ||
| 31453-60020 |
PZJ7#..STD ｱﾘ(ｸﾗﾂﾁ ﾌﾞ-ｽﾀ) |
1 | ||
| 31454 - BOOT, CLUTCH MASTER CYLINDER | ||||
| 31454-60020 |
FJ75,PZJ7#..STD |
1 | ||
| 31490F - ACCUMULATOR ASSY, MASTER CYLINDER | ||||
| 31490-60050 |
PZJ7#..STD ｱﾘ(ｸﾗﾂﾁ ﾌﾞ-ｽﾀ) |
1 | ||
| 31490-60020 |
PZJ7#..STD |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 90254-05009 | ||||
| 90303-16002 | ||||
| 91611-60612 | ||||
| 94120-40800 | ||||
