PZJ70V-MRS (1990)

Toyota Land Cruiser S/T,H/T

Production Jan 1990 - Jan 1994
Engine 1PZ
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

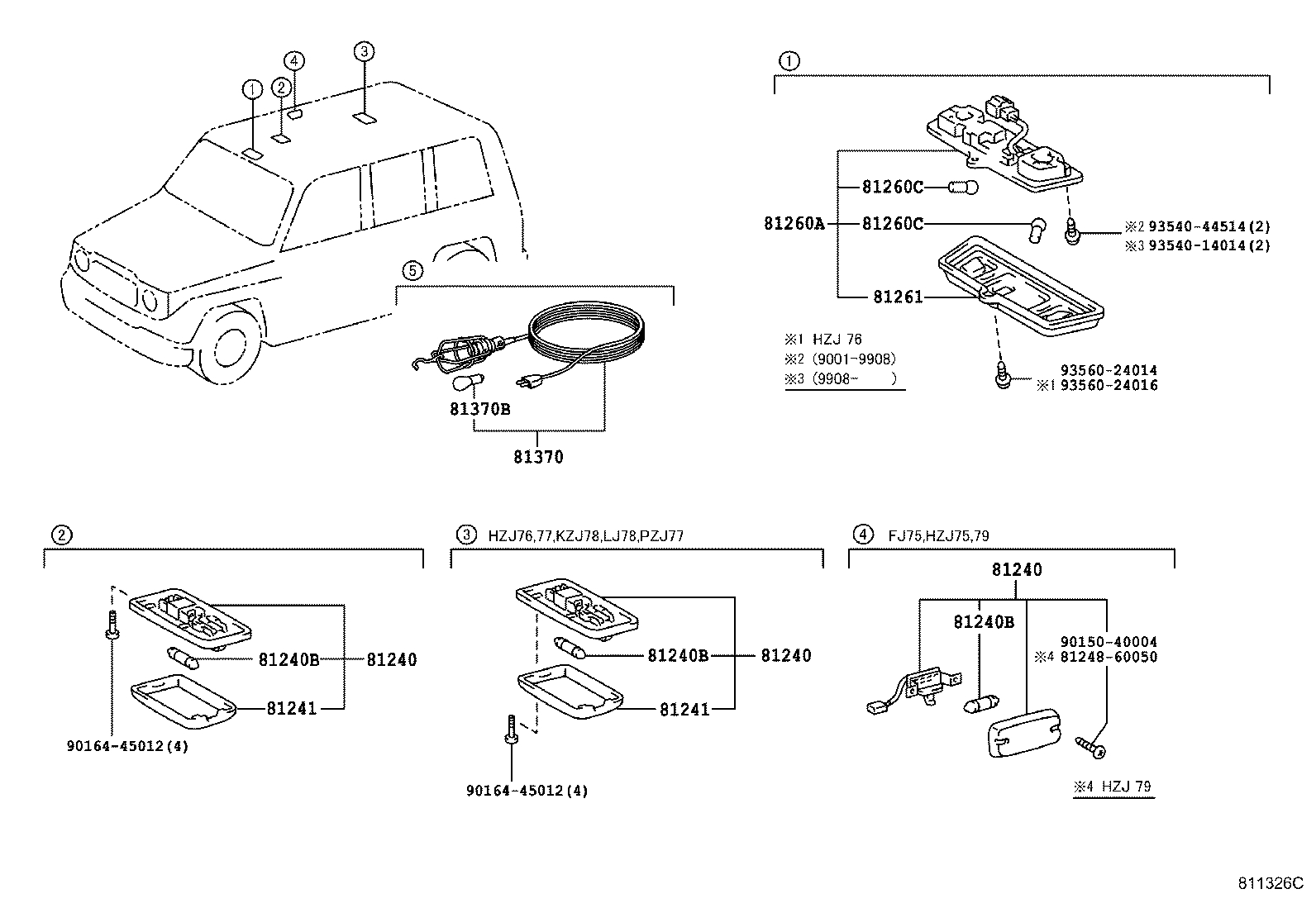

Click highlighted areas on diagram

diagram 81240 81240 81240 81240B 81240B 81240B 81241 81241 8124860050 81260A 81260C 81260C 81261 81370 81370B 9015040004 9016445012 9016445012 9354014014 9354044514 9356024014 9356024016
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-90K00

PZJ70

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-90K00

PZJ70

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-90K00

PZJ70

 1
81240B - BULB, ROOM LAMP, NO.1
90981-16019

HZJ73,PZJ70

24V 10W

 1
81240B - BULB, ROOM LAMP, NO.1
90981-16019

HZJ73,PZJ70

24V 10W

 1
81240B - BULB, ROOM LAMP, NO.1
90981-16019

HZJ73,PZJ70

24V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-20060

HZJ77..ZX;HZJ76,79,LJ7#,PZJ7#

 2
81241 - LENS, ROOM LAMP, NO.1
81241-20060

HZJ77..ZX;HZJ76,79,LJ7#,PZJ7#

 2
Common parts
81248-60050
90150-40004
90164-45012
93540-14014
93540-44514
93560-24014
93560-24016
