PZJ70V-MRS (1990)

Toyota Land Cruiser S/T,H/T

Production Jan 1990 - Jan 1994
Engine 1PZ
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

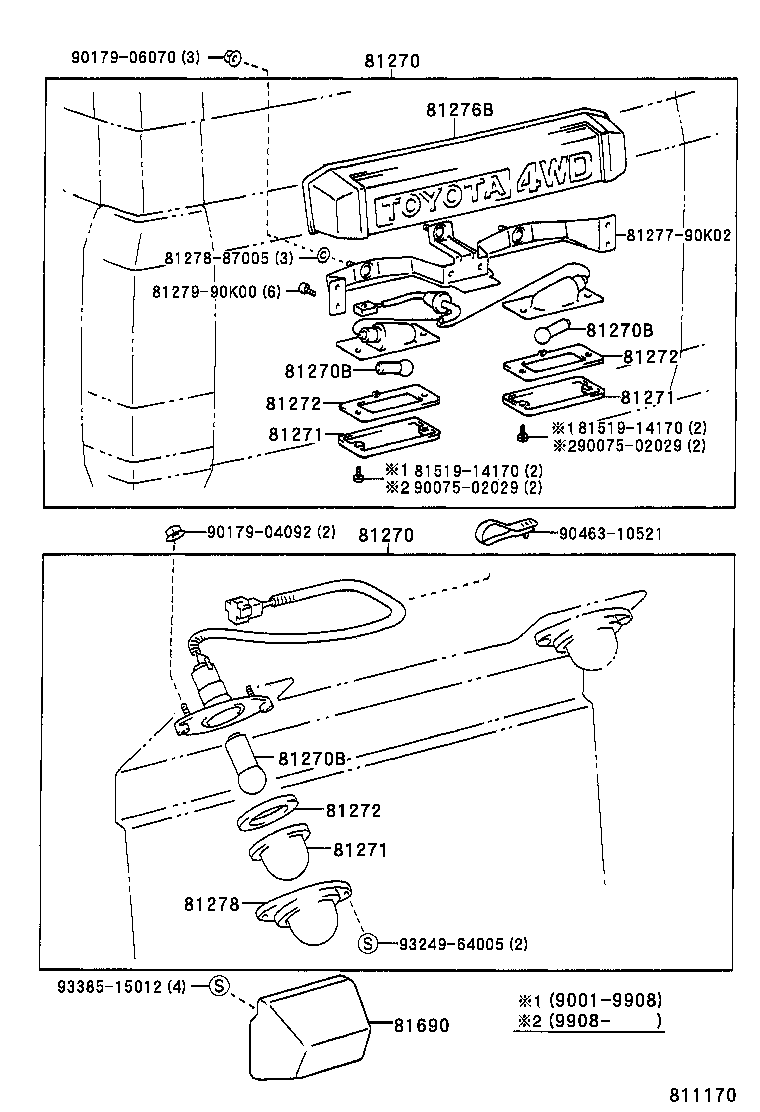

Click highlighted areas on diagram

diagram 81270 81270 81270B 81270B 81270B 81271 81271 81271 81272 81272 81272 81276B 8127790K02 81278 8127887005 8127990K00 8151914170 8151914170 81690 9007502029 9007502029 9017904092 9017906070 9046310521 9324964005 9338515012
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-90K01

HZJ7#,PZJ7#

 1
81270-60220

HZJ73,77,PZJ7#

 1
81270 - LAMP ASSY, LICENSE PLATE
81270-90K01

HZJ7#,PZJ7#

 1
81270-60220

HZJ73,77,PZJ7#

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-16016

HZJ73,77,PZJ7#

24V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-16016

HZJ73,77,PZJ7#

24V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-16016

HZJ73,77,PZJ7#

24V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-87004

HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#

 2
81271 - LENS, LICENSE PLATE LAMP
81271-87004

HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#

 2
81271 - LENS, LICENSE PLATE LAMP
81271-87004

HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-87004

HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-87004

HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-87004

HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#

 2
81276B - COVER, LICENSE PLATE LAMP
81276-90K02

HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#

 1
Common parts
81277-90K02
81278-87005
81279-90K00
81519-14170
90075-02029
90179-04092
90179-06070
90463-10521
93249-64005
93385-15012
