PZJ70V-MNS (1990)
Toyota Land Cruiser S/T,H/T

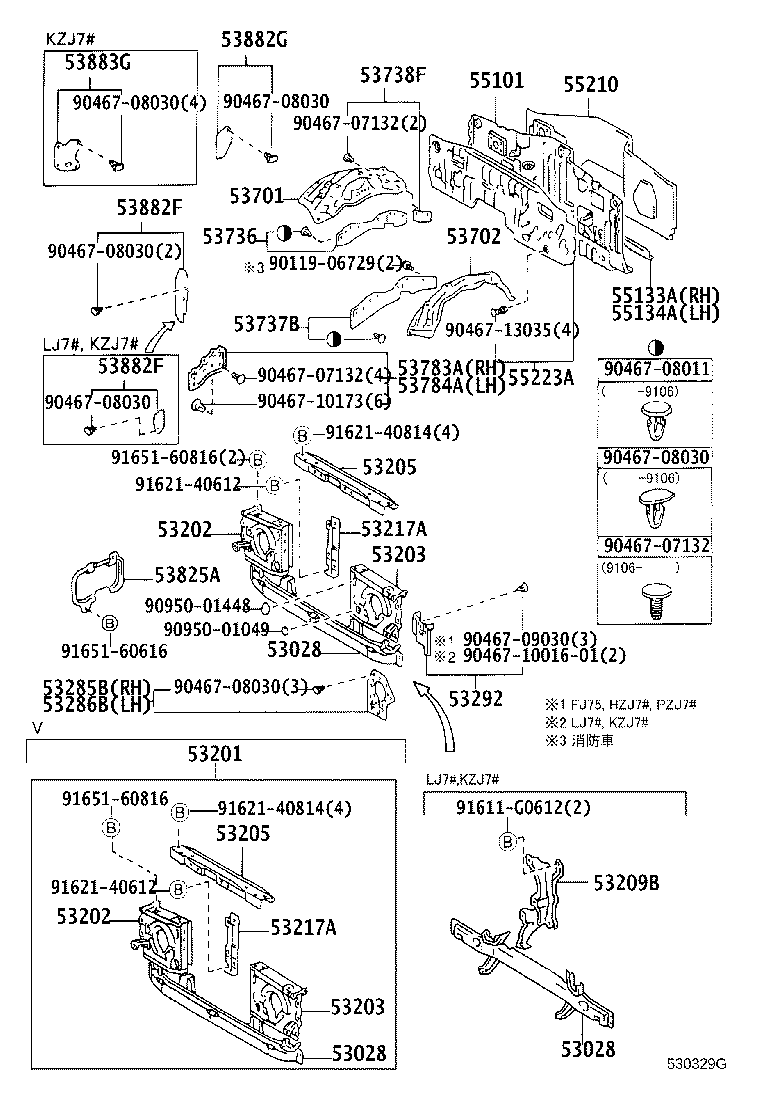

ILLUST NO. 1 OF 2(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53028 - SUPPORT SUB-ASSY, RADIATOR, LOWER | ||||
| 53028-60040 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
1 | ||
| 53028 - SUPPORT SUB-ASSY, RADIATOR, LOWER | ||||
| 53028-60040 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
1 | ||
| 53028 - SUPPORT SUB-ASSY, RADIATOR, LOWER | ||||
| 53028-60040 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-60110 |
FJ75,HZJ7#,PZJ7# |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-60110 |
FJ75,HZJ7#,PZJ7# |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-60110 |
HZJ7#,PZJ7# |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-60110 |
HZJ7#,PZJ7# |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-60020 |
HZJ73,PZJ70 |
1 | ||
| 53205-60020 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
1 | ||
| 53216-90K02 |
FJ75,HZJ7#,PZJ7# |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-60020 |
HZJ73,PZJ70 |
1 | ||
| 53205-60020 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
1 | ||
| 53216-90K02 |
FJ75,HZJ7#,PZJ7# |
1 | ||
| 53217A - BRACE, HOOD LOCK SUPPORT | ||||
| 53217-60060 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
1 | ||
| 53217A - BRACE, HOOD LOCK SUPPORT | ||||
| 53217-60060 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
1 | ||
| 53292 - SEAL, RADIATOR SUPPORT TO FRAME, LH | ||||
| 53292-90K00 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-60280 |
HZJ73,PZJ7#..LX,ZX ｱﾘ(ﾏﾆﾕｱﾙ ﾌﾘ- ﾎｲ-ﾙ ﾊﾌﾞ) |
1 | ||
| 53701-60280 |
HZJ7#,PZJ7# |
1 | ||
| 53701-60440 |
HZJ73,77,PZJ7#..LX,ZX |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-60500 |
HZJ73..4NO;HZJ77,PZJ70;HZJ73,PZJ77..(LX,ZX)..U ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
1 | ||
| 53702-90L45 |
PZJ77..4NO;HZJ7#,PZJ70;PZJ77..LX..1NO |
1 | ||
| 53702-60310 |
PZJ70..LX;HZJ7#,PZJ77..(LX,ZX)..U ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
1 | ||
| 53702-60300 |
HZJ73,77,PZJ7#..LX,ZX |
1 | ||
| 53702-60500 |
HZJ73..U;PZJ70..LX;PZJ77..LX..1NO ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ + ﾏﾆﾕｱﾙ ﾌﾘ- ﾎｲ-ﾙ ﾊﾌﾞ) |
1 | ||
| 53702-60310 |
PZJ77..LX..1NO;HZJ73,77,PZJ70..LX,ZX ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
1 | ||
| 53702-90L45 |
HZJ73,PZJ7#..LX,ZX ｱﾘ(ﾏﾆﾕｱﾙ ﾌﾘ- ﾎｲ-ﾙ ﾊﾌﾞ) |
1 | ||
| 53702-60310 |
PZJ77..1NO;HZJ7#,PZJ70..LX,ZX ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
1 | ||
| 53736 - SEAL, FRONT FENDER APRON, RH | ||||
| 53737-90K03 |
HZJ7#,PZJ7# |
1 | ||
| 53736-60040 |
FJ75,HZJ7#,PZJ7# |
1 | ||
| 53737-60040 |
FJ75,HZJ7#,PZJ7# |
1 | ||
| 53737B - SEAL, FRONT FENDER APRON, LH | ||||
| 53737-90K03 |
HZJ7#,PZJ7# |
1 | ||
| 53737-60040 |
HZJ7#,PZJ7# |
1 | ||
| 53825A - PROTECTOR, FRONT FENDER, UPPER RH | ||||
| 53825-60020 |
HZJ73,77..ZX;HZJ71,74,75,76,79,PZJ7# |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-60030 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-60030 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-6B110 |
PZJ7#..LX;HZJ7#..MTM |
1 | ||
| 55133A - REINFORCEMENT, DASH TO FLOOR, RH | ||||
| 55133-60020 |
HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7# |
1 | ||
| 55134A - REINFORCEMENT, DASH TO FLOOR, LH | ||||
| 55134-60010 |
HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7# |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-60030 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-60120 |
HZJ7#,PZJ7# |
1 | ||
| 55223-60060 |
HZJ7#,PZJ7# |
1 | ||
| Common parts | ||||
| 90119-06729 | ||||
| 90467-07132 | ||||
| 90467-08011 | ||||
| 90467-08030 | ||||
| 90467-09030 | ||||
| 90467-1001601 | ||||
| 90467-10173 | ||||
| 90467-13035 | ||||
| 90950-01049 | ||||
| 90950-01448 | ||||
| 91611-G0612 | ||||
| 91621-40612 | ||||
| 91621-40814 | ||||
| 91651-60616 | ||||
| 91651-60816 | ||||

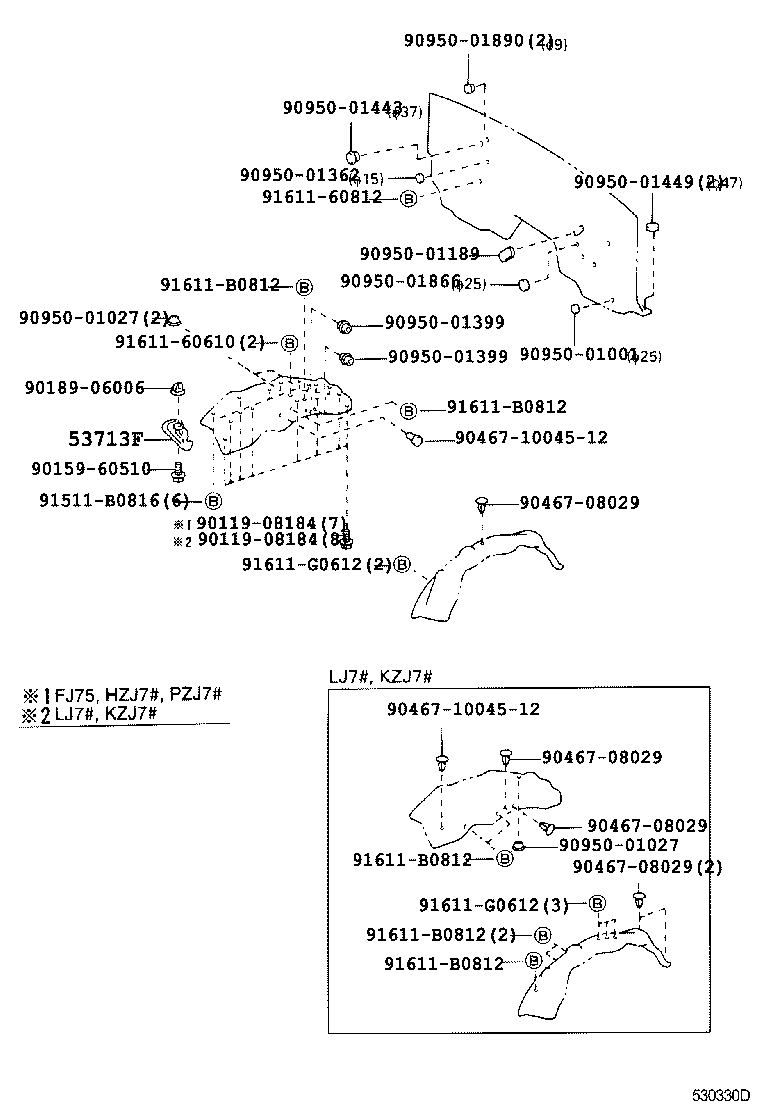

ILLUST NO. 2 OF 2(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53713F - PLATE, FENDER APRON SPLASH, RH | ||||
| 53713-60030 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
1 | ||
| Common parts | ||||
| 90119-08184 | ||||
| 90159-60510 | ||||
| 90189-06006 | ||||
| 90467-08029 | ||||
| 90467-1004512 | ||||
| 90950-01001 | ||||
| 90950-01027 | ||||
| 90950-01189 | ||||
| 90950-01362 | ||||
| 90950-01399 | ||||
| 90950-01443 | ||||
| 90950-01449 | ||||
| 90950-01866 | ||||
| 90950-01890 | ||||
| 91511-B0816 | ||||
| 91611-60610 | ||||
| 91611-60812 | ||||
| 91611-B0812 | ||||
| 91611-G0612 | ||||
