PZJ70V-MNS (1990)

Toyota Land Cruiser S/T,H/T

Production Jan 1990 - Jan 1994
Engine 1PZ
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )HZJ70,71,73,74,KZJ71,LJ71,PZJ70

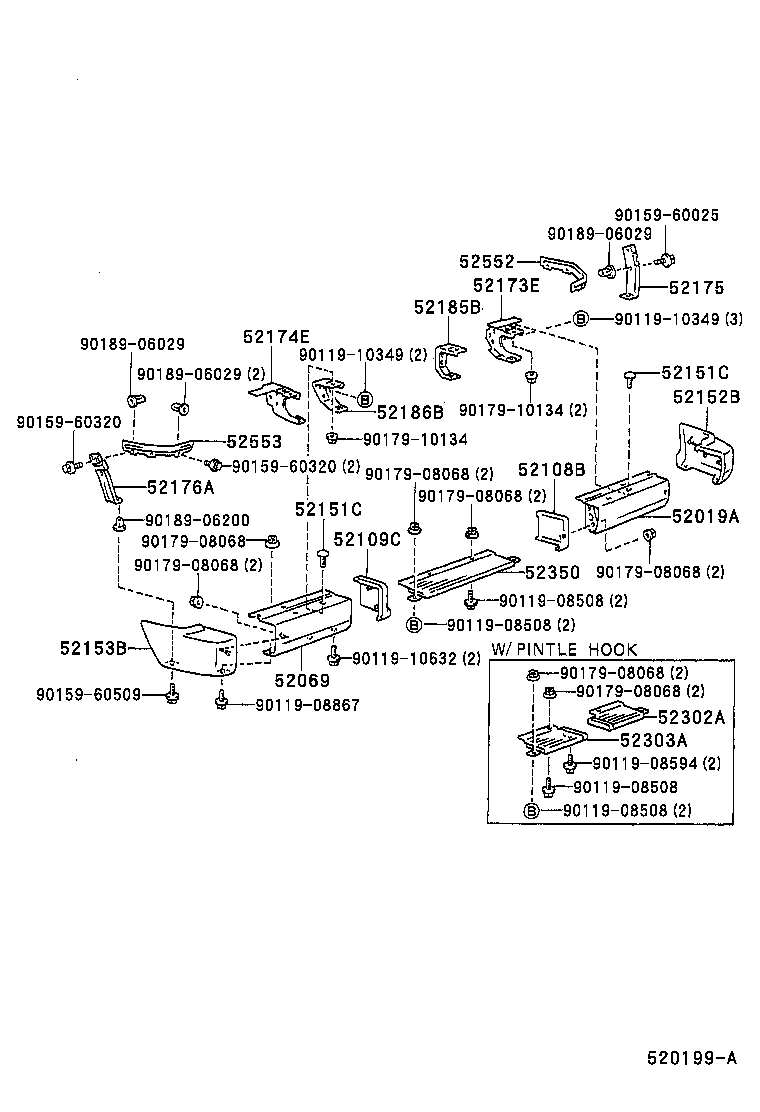

Click highlighted areas on diagram

diagram 52019A 52069 52108B 52109C 52151C 52151C 52152B 52153B 52173E 52174E 52175 52176A 52185B 52186B 52302A 52303A 52350 52552 52553 9011908508 9011908508 9011908508 9011908508 9011908594 9011908867 9011910349 9011910349 9011910632 9015960025 9015960320 9015960320 9015960509 9017908068 9017908068 9017908068 9017908068 9017908068 9017908068 9017908068 9017910134 9017910134 9018906029 9018906029 9018906029 9018906200
Part # Description Qty Price
52019A - BAR SUB-ASSY, REAR BUMPER, RH
52019-60030

HZJ73,77,LJ7#,PZJ7#..EX,EX5,LX,LX5,SX5,ZX

 1
52019-60030

HZJ73,77,KZJ7#,PZJ7#..EX,LX,SX,ZX

 1
52069 - BAR SUB-ASSY, REAR BUMPER, LH
52069-60030

HZJ73,77,LJ7#,PZJ7#..EX,EX5,LX,LX5,SX5,ZX

 1
52069-60030

HZJ73,77,KZJ7#,PZJ7#..EX,LX,SX,ZX

 1
52108B - EXTENSION SUB-ASSY, REAR BUMPER SIDE, RH
52108-60040

HZJ73..ZX;HZJ71,74,LJ71,PZJ70

 1
52109C - EXTENSION SUB-ASSY, REAR BUMPER SIDE, LH
52109-60040

HZJ73..ZX;HZJ71,74,LJ71,PZJ70

 1
52151C - BOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER)
90112-10021

PZJ77..LX..4NO;HZJ73,77,LJ7#,PZJ70..EX,EX5,LX,LX5,SX5,ZX

ﾒﾂｷ

 6
52151C - BOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER)
90112-10021

PZJ77..LX..4NO;HZJ73,77,LJ7#,PZJ70..EX,EX5,LX,LX5,SX5,ZX

ﾒﾂｷ

 6
52152B - EXTENSION, REAR BUMPER, RH
52106-60170

HZJ73..ZX;HZJ71,74,LJ71,PZJ70

 1
52153B - EXTENSION, REAR BUMPER, LH
52107-60140

HZJ73..ZX;HZJ71,74,LJ71,PZJ70

 1
52173E - BRACKET, REAR BUMPER BAR, RH
52173-60080

HZJ73,LJ71,PZJ70

 1
52174E - BRACKET, REAR BUMPER BAR, LH
52174-60070

HZJ73..ZX;HZJ71,74,LJ71,PZJ70

 1
52175 - BRACKET, REAR BUMPER ARM MOUNTING
52175-60020

HZJ73..ZX;HZJ71,74,LJ71,PZJ70

 1
52176A - BRACKET, REAR BUMPER ARM MOUNTING, LH
52176-60020

HZJ73..ZX;HZJ71,74,LJ71,PZJ70

 1
52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH
52185-60040

HZJ73..ZX;HZJ71,74,LJ71,PZJ70

 1
52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH
52186-60030

HZJ73..ZX;HZJ71,74,LJ71,PZJ70

 1
52302A - STEP SUB-ASSY, REAR BUMPER
52302-60010

HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ70

 1
52303A - STEP SUB-ASSY, REAR BUMPER, LH
52303-60010

HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ70

 1
52350 - STEP ASSY, REAR BUMPER
52351-60070

HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#

 1
52552 - FILLER, REAR BUMPER, RH
52552-60020

HZJ73..ZX;HZJ71,74,LJ71,PZJ70

 1
52553 - FILLER, REAR BUMPER, LH
52553-60020

HZJ73..ZX;HZJ71,74,LJ71,PZJ70

 1
Common parts
90119-08508
90119-08594
90119-08867
90119-10349
90119-10632
90159-60025
90159-60320
90159-60509
90179-08068
90179-10134
90189-06029
90189-06200
