PZJ70-MRS (1990)

Toyota Land Cruiser S/T,H/T

Production Jan 1990 - Jan 1994
Engine 1PZ
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

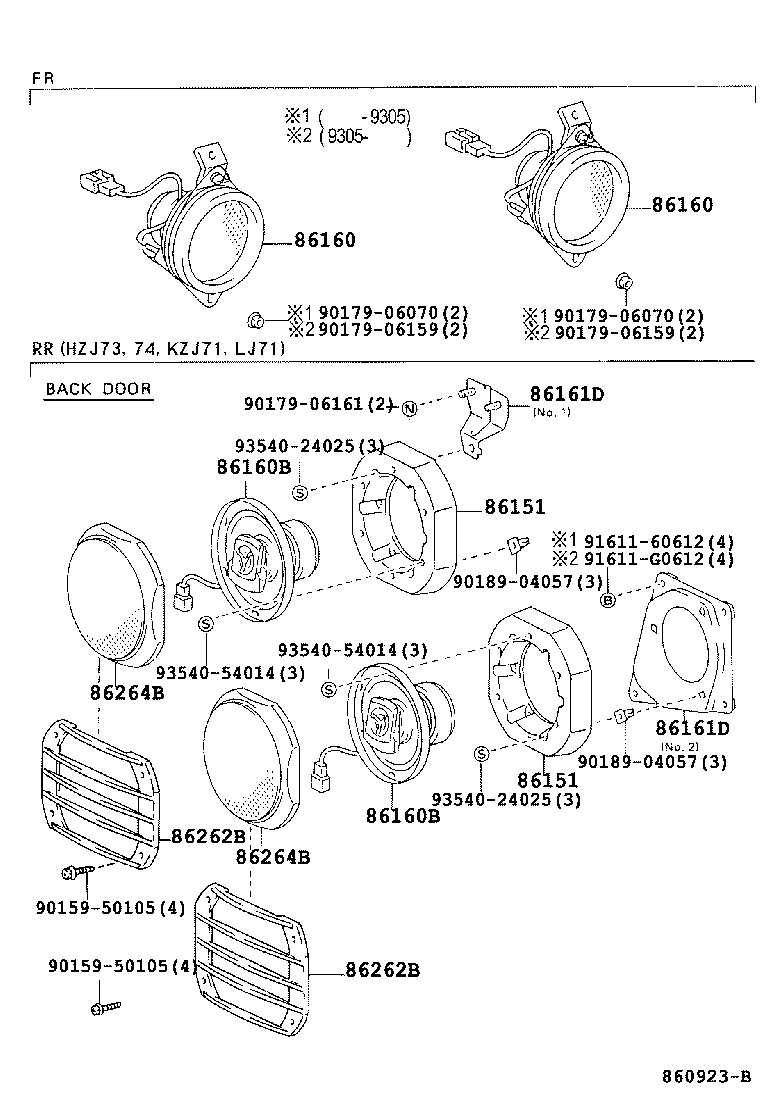

ILLUST NO. 1 OF 2(9001- )

Click highlighted areas on diagram

diagram 86151 86151 86160 86160 86160B 86160B 86161D 86161D 86262B 86262B 86264B 86264B 9015950105 9015950105 9017906070 9017906070 9017906159 9017906159 9017906161 9018904057 9018904057 9161160612 91611G0612 9354024025 9354024025 9354054014 9354054014
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-90K00

FJ75,HZJ75,PZJ7#..STD

 1
86160-90K01

PZJ7#..STD..4NO

2 ｽﾋﾟ-ｶ

 2
86160-90K01

PZJ7#..STD

2 ｽﾋﾟ-ｶ

 2
86160-90K00

HZJ75,PZJ7#..STD

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-90K00

FJ75,HZJ75,PZJ7#..STD

 1
86160-90K01

PZJ7#..STD..4NO

2 ｽﾋﾟ-ｶ

 2
86160-90K01

PZJ7#..STD

2 ｽﾋﾟ-ｶ

 2
86160-90K00

HZJ75,PZJ7#..STD

 1
Common parts
90159-50105
90179-06070
90179-06159
90179-06161
90189-04057
91611-60612
91611-G0612
93540-24025
93540-54014

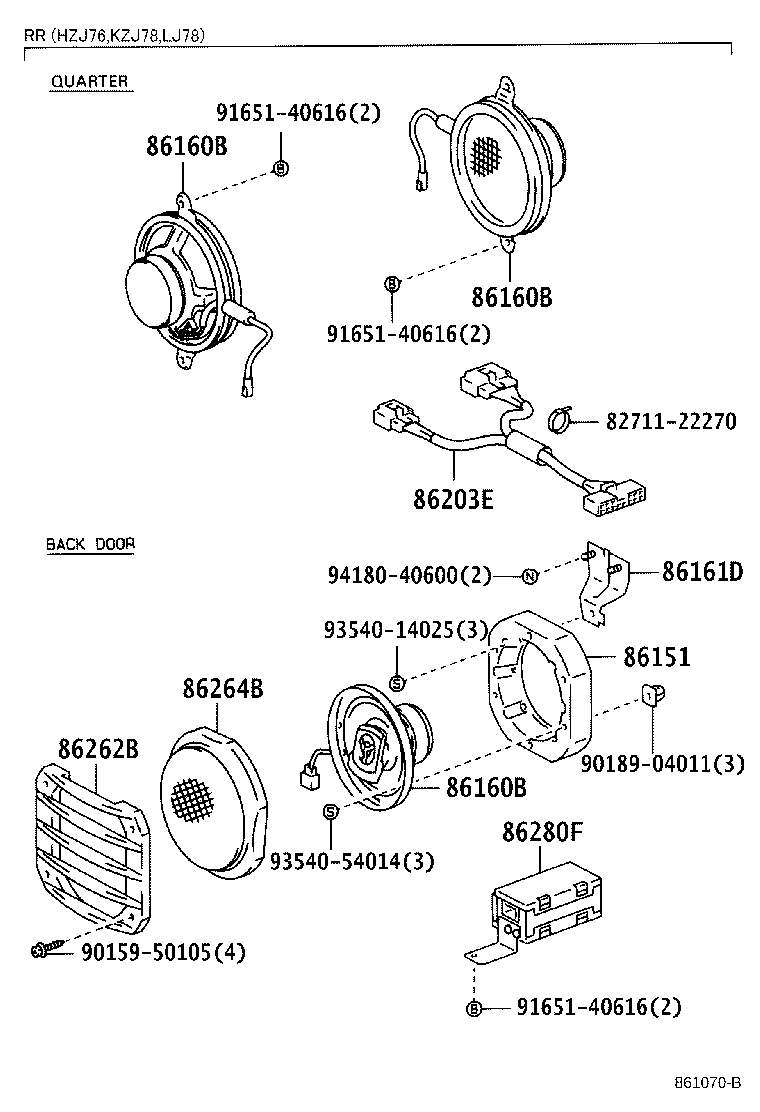

ILLUST NO. 2 OF 2(9001- )

Click highlighted areas on diagram

diagram 8271122270 86151 86160B 86160B 86160B 86161D 86203E 86262B 86264B 86280F 9015950105 9018904011 9165140616 9165140616 9165140616 9354014025 9354054014 9418040600
Part # Description Qty Price
Common parts
82711-22270
90159-50105
90189-04011
91651-40616
93540-14025
93540-54014
94180-40600
