PZJ70-MRS (1990)

Toyota Land Cruiser S/T,H/T

Production Jan 1990 - Jan 1994
Engine 1PZ
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )SOT

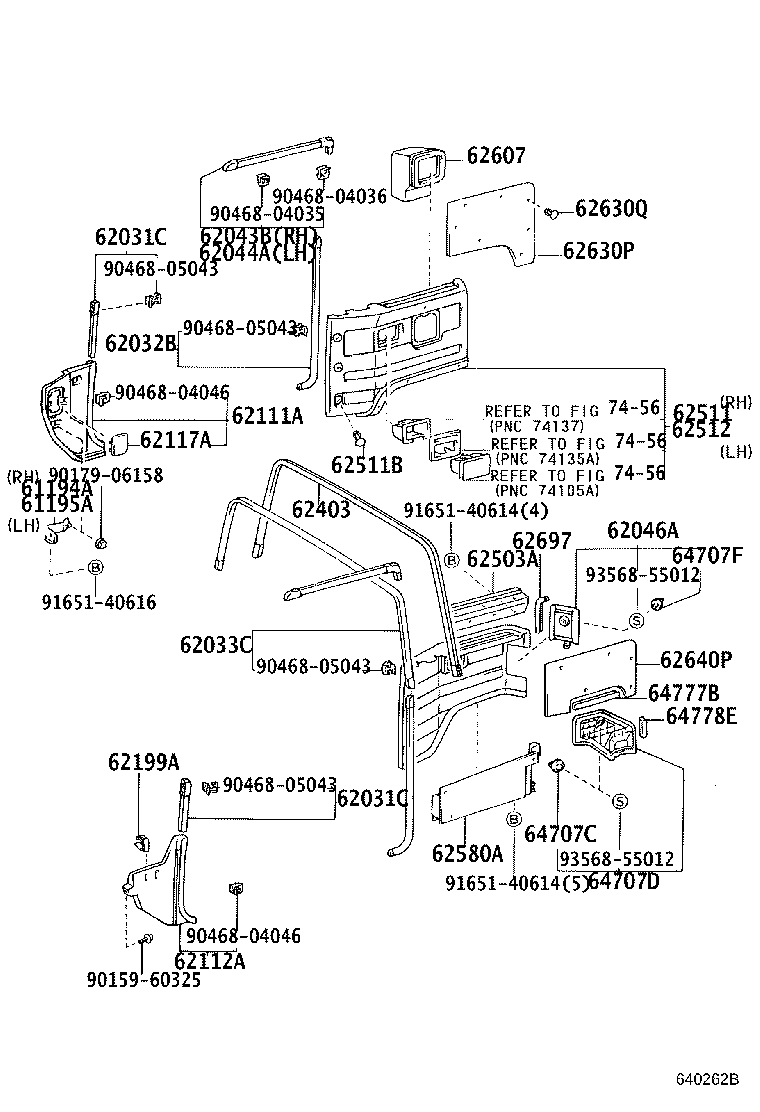

Click highlighted areas on diagram

diagram 61194A 61195A 62031C 62031C 62032B 62033C 62043B 62044A 62046A 62111A 62112A 62117A 62199A 62403 62503A 62511 62511B 62512 62580A 62607 62630P 62630Q 62640P 62697 64707C 64707D 64707F 64777B 64778E 7456 7456 7456 9015960325 9017906158 9046804035 9046804036 9046804046 9046804046 9046805043 9046805043 9046805043 9046805043 9165140614 9165140614 9165140616 9356855012 9356855012
Part # Description Qty Price
61194A - BRACKET, COWL SIDE TRIM, RH
61194-90K00

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#

 1
62031C - TRIM SUB-ASSY, FRONT DOOR OPENING, NO.1
62031-90K0016

FJ75,PZJ70..PIC,SOT

LIGHT SABLE,TRIM4#

 2
62031-90K0016

PZJ70..SOT

LIGHT SABLE,TRIM4#

 2
62031-90K0013

PZJ70..SOT;FJ75,HZJ73,75

LIGHT GRAY,TRIM1#

 2
62031C - TRIM SUB-ASSY, FRONT DOOR OPENING, NO.1
62031-90K0016

FJ75,PZJ70..PIC,SOT

LIGHT SABLE,TRIM4#

 2
62031-90K0016

PZJ70..SOT

LIGHT SABLE,TRIM4#

 2
62031-90K0013

PZJ70..SOT;FJ75,HZJ73,75

LIGHT GRAY,TRIM1#

 2
62032B - TRIM SUB-ASSY, FRONT DOOR OPENING, NO.2
62032-90K0016

PZJ70..SOT

LIGHT SABLE,TRIM4#

 2
62032-90K0013

FJ75,HZJ75,PZJ70..PIC,SOT

LIGHT GRAY,TRIM1#

 2
62032-90K0016

FJ75,PZJ70..PIC,SOT

LIGHT SABLE,TRIM4#

 2
62033C - TRIM SUB-ASSY, FRONT DOOR OPENING, NO.3
62033-90K0108

PZJ70..SOT

IVORY,TRIM1#,4#

 1
62033-90K0108

PZJ70..SOT

IVORY,TRIM1#

 1
62043B - TRIM SUB-ASSY, FRONT DOOR OPENING, NO.3 RH
62043-90K0008

HZJ73;PZJ70..SOT

IVORY,TRIM1#

 1
62043-90K0008

PZJ70..SOT

IVORY,TRIM1#,4#

 1
62044A - TRIM SUB-ASSY, FRONT DOOR OPENING, NO.3 LH
62044-90K0008

PZJ70..SOT

IVORY,TRIM1#,4#

 1
62044-90K0008

HZJ73;PZJ70..SOT

IVORY,TRIM1#

 1
62046A - COVER SUB-ASSY, QUARTER TRIM LID, LH
62046-90K0106

PZJ70

LIGHT SABLE,TRIM4#

 1
62046-90K0113

PZJ70

LIGHT GRAY,TRIM1#

 1
62111A - TRIM SUB-ASSY, COWL SIDE, RH
62101-90K0713

FJ75,HZJ7#,LJ7#,PZJ7#

LIGHT GRAY,TRIM1#

 1
62101-90K0716

FJ75,HZJ77,LJ7#,PZJ7#

LIGHT SABLE,TRIM4#

 1
62112A - TRIM SUB-ASSY, COWL SIDE, LH
62102-90K0213

FJ75,HZJ7#,LJ7#,PZJ7#

LIGHT GRAY,TRIM1#

 1
62102-90K0216

FJ75,HZJ77,LJ7#,PZJ7#

LIGHT SABLE,TRIM4#

 1
62117A - COVER, COWL SIDE TRIM SERVICE HOLE
62117-90K0016

FJ75,HZJ77,LJ7#,PZJ7#

LIGHT SABLE,TRIM4#

 1
62117-90K0013

FJ75,HZJ7#,LJ7#,PZJ7#

LIGHT GRAY,TRIM1#

 1
62199A - HOLDER, FUSEE
90468-25003

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#

 2
62403 - TRIM SUB-ASSY, ROLL OVER PANEL
62403-90K0008

HZJ73;PZJ70..SOT

IVORY,TRIM1#

 1
62403-90K0008

PZJ70..SOT

IVORY,TRIM1#,4#

 1
62503A - BRACKET SUB-ASSY, SIDE TRIM
62503-90K00

HZJ71,PZJ70

 2
62511 - BOARD, QUARTER INSIDE TRIM, RH
62510-90K0306

PZJ70..SOT

LIGHT SABLE,TRIM4#

 1
62510-90K0313

PZJ70..SOT

LIGHT GRAY,TRIM1#

 1
62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD)
90467-1001643

PZJ70

LIGHT GRAY,TRIM1#

 21
90467-1001601

PZJ70..STD

BLACK,045

 21
90467-1001636

PZJ70

LIGHT SABLE,TRIM4#

 21
62512 - BOARD, QUARTER INSIDE TRIM, LH
62520-90K0513

PZJ70..SOT

LIGHT GRAY,TRIM1#

 1
62520-90K0506

PZJ70..SOT

LIGHT SABLE,TRIM4#

 1
62580A - GARNISH ASSY, ROOF SIDE, INNER LOWER LH
62580-90K00

HZJ71,PZJ70

 1
62607 - POCKET SUB-ASSY, QUARTER TRIM
62607-90K0016

LJ7#,PZJ70

LIGHT SABLE,TRIM4#

 1
62607-90K0013

HZJ73,LJ7#,PZJ70

LIGHT GRAY,TRIM1#

 1
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62631-6008003

PZJ70..SOT

LIGHT GRAY,TRIM1#

 1
62631-60081E0

PZJ70..SOT

LIGHT SABLE,TRIM4#

 1
62631-6008006

PZJ70..SOT

LIGHT SABLE,TRIM4#

 1
62630-60080B0

PZJ70..SOT

LIGHT GRAY,TRIM1#

 1
62631-60081B0

PZJ70..SOT

LIGHT GRAY,TRIM1#

 1
62630Q - CLIP (FOR QUARTER TRIM)
90467-1203106

PZJ70..SOT

LIGHT SABLE,TRIM4#

 13
90467-1203113

PZJ70..SOT

LIGHT GRAY,TRIM1#

 13
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62640-60021B0

PZJ70..SOT

LIGHT GRAY,TRIM1#

 1
62640-90K0613

PZJ70..SOT

LIGHT GRAY,TRIM1#

 1
62640-90K0606

PZJ70..SOT

LIGHT SABLE,TRIM4#

 1
62640-60020E0

PZJ70..SOT

LIGHT SABLE,TRIM4#

 1
62640-60020B0

PZJ70..SOT

LIGHT GRAY,TRIM1#

 1
62640-60021B0

PZJ70..SOT

LIGHT GRAY,TRIM1#

 1
62697 - MOULDING, QUARTER TRIM LID
62697-90K0116

PZJ70

LIGHT SABLE,TRIM4#

 1
62697-90K0113

PZJ70

LIGHT GRAY,TRIM1#

 1
64707C - KNOB, JACK COVER
64769-90K0013

HZJ73,77,LJ7#,PZJ7#

LIGHT GRAY,TRIM1#

 1
64769-90K0016

HZJ77,LJ7#,PZJ7#

LIGHT SABLE,TRIM4#

 1
64707D - COVER SUB-ASSY, QUARTER TRIM JACK
64707-90K0206

LJ71,PZJ70

LIGHT SABLE,TRIM4#

 1
64707-90K0213

HZJ73,LJ71,PZJ70

LIGHT GRAY,TRIM1#

 1
64707F - KNOB, JACK COVER
64769-90K0016

LJ71,PZJ70..LX,LX5,STD

LIGHT SABLE,TRIM4#

 1
64769-90K0013

HZJ73,LJ71,PZJ70

LIGHT GRAY,TRIM1#

 1
64769-90K0013

HZJ73,LJ71,PZJ70..LX,LX5,STD,ZX

LIGHT GRAY,TRIM1#

 1
64769-90K0016

LJ71,PZJ70

LIGHT SABLE,TRIM4#

 1
64777B - PROTECTOR, QUARTER, INNER
64777-90K00

HZJ73,LJ71,PZJ70

 1
64778E - PROTECTER, QUARTER INNER, NO.1
64778-90K00

HZJ73,77,LJ7#,PZJ7#

 1
Common parts
90159-60325
90179-06158
90468-04035
90468-04036
90468-04046
90468-05043
91651-40614
91651-40616
93568-55012
Linked diagrams
7456
