PZJ70-MRS (1990)

Toyota Land Cruiser S/T,H/T

Production Jan 1990 - Jan 1994
Engine 1PZ
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

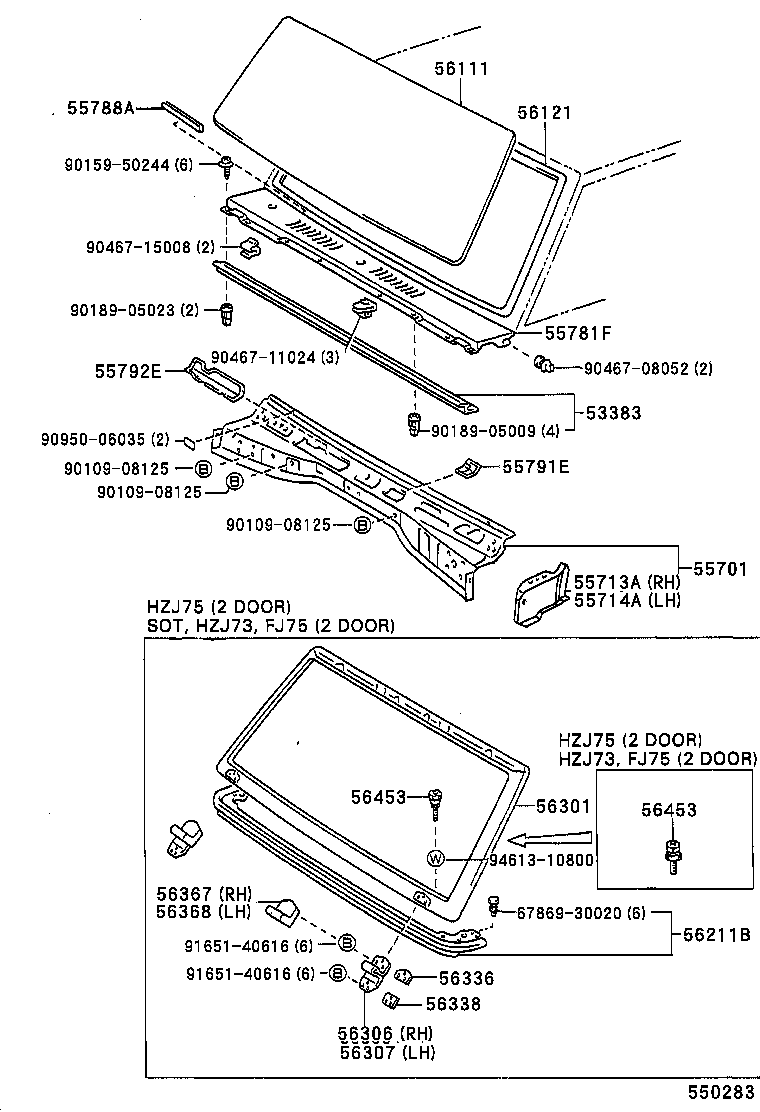

Click highlighted areas on diagram

diagram 53383 55701 55713A 55714A 55781F 55788A 55791E 55792E 56111 56121 56211B 56301 56306 56307 56336 56338 56367 56368 56453 56453 6786930020 9010908125 9010908125 9010908125 9015950244 9018905009 9018905023 9046708052 9046711024 9046715008 9095006035 9165140616 9165140616 9461310800
Part # Description Qty Price
53383 - SEAL, HOOD TO COWL TOP
53383-90K00

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#

 1
55701 - PANEL SUB-ASSY, COWL
55700-60800

HZJ74;HZJ73..ZX;FJ75,HZJ71,75,PZJ70..PIC,SOT

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-90K00

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-90K00

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#

 1
55781F - LOUVER, COWL TOP VENTILATOR
55781-60050

HZJ74;HZJ73..ZX;FJ75,HZJ71,75,PZJ70..PIC,SOT

 1
55788A - PROTECTOR, COWL TOP VENTILATOR LOUVER
55788-90K00

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#

 2
55791E - COVER, HEATER DUCT HOLE
55791-90K00

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#

 1
55792E - COVER, HEATER AIR DUCT HOLE, NO.2
55792-90K00

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#

 1
56111 - GLASS, WINDSHIELD
56111-90K07

FJ75,HZJ75,PZJ70..PIC,SOT

*LAM,T=5.3

 1
56121 - WEATHERSTRIP, WINDSHIELD
56121-90K01

FJ75,HZJ75,PZJ70..PIC,SOT

 1
56211B - CUSHION, WINDSHIELD
56211-90K00

HZJ74;HZJ73..ZX;FJ75,HZJ71,75,PZJ70..PIC,SOT

 1
56301 - FRAME SUB-ASSY, WINDSHIELD
56301-90K12

HZJ71,PZJ70..SOT

 1
56306 - HINGE SUB-ASSY, WINDSHIELD SUPPORT, RH
56306-90K00

HZJ74;HZJ73..ZX;FJ75,HZJ71,75,PZJ70..PIC,SOT

 1
56307 - HINGE SUB-ASSY, WINDSHIELD SUPPORT, LH
56307-90K00

HZJ74;HZJ73..ZX;FJ75,HZJ71,75,PZJ70..PIC,SOT

 1
56336 - PACKING, WINDSHIELD SUPPORT HINGE, UPPER
56336-90K01

HZJ74;HZJ73..ZX;FJ75,HZJ71,75,PZJ70..PIC,SOT

 2
56338 - PACKING, WINDSHIELD SUPPORT HINGE, LOWER
56338-90K01

HZJ74;HZJ73..ZX;FJ75,HZJ71,75,PZJ70..PIC,SOT

 2
56367 - COVER, WINDSHIELD SUPPORT HINGE, RH
56367-90K00

PZJ70..SOT;FJ75,HZJ73,75

 1
56368 - COVER, WINDSHIELD SUPPORT HINGE, LH
56368-90K00

PZJ70..SOT;FJ75,HZJ73,75

 1
56453 - HANDLE, WINDSHIELD CATCH
56453-90K00

PZJ70..SOT

 2
56453 - HANDLE, WINDSHIELD CATCH
56453-90K00

PZJ70..SOT

 2
Common parts
67869-30020
90109-08125
90159-50244
90189-05009
90189-05023
90467-08052
90467-11024
90467-15008
90950-06035
91651-40616
94613-10800
