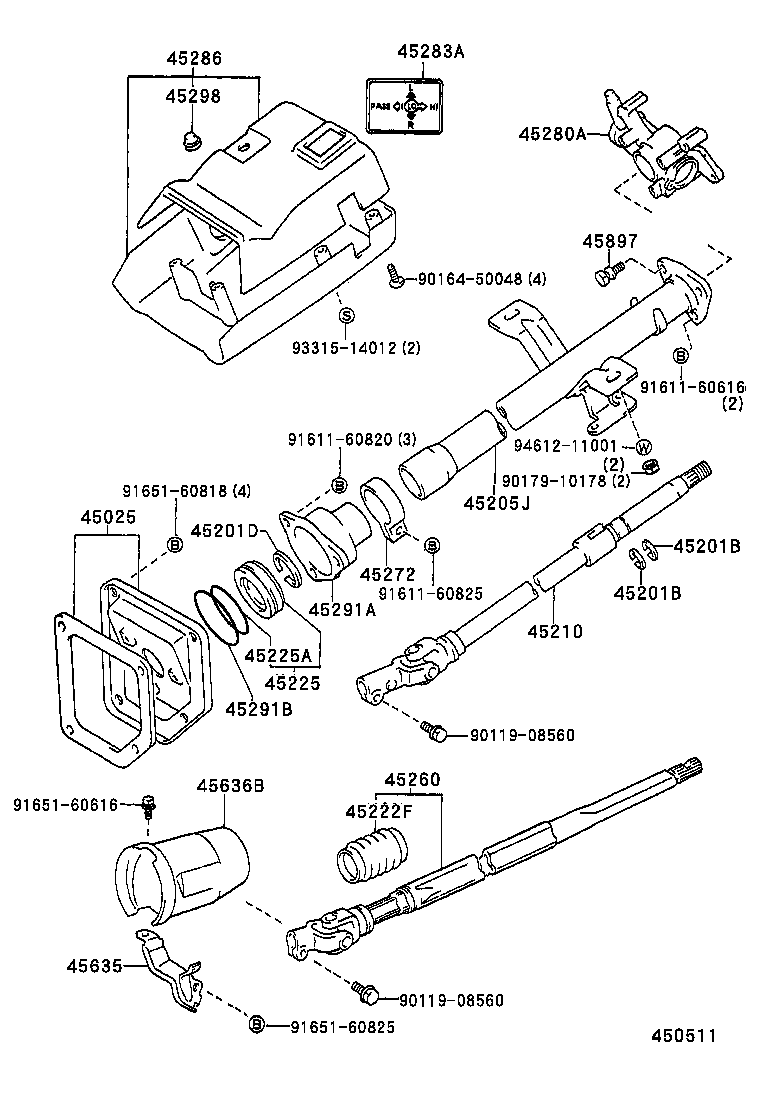

PZJ70-MRS (1990)
Toyota Land Cruiser S/T,H/T
(9001-9108)PZJ7#..STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025 - COVER, STEERING INTERMEDIATE SHAFT | ||||
| 45025-60060 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45025-60050 |
FJ75,HZJ7#,PZJ7# |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
PZJ7#..STD 厚さ=1.20 |
2 | ||
| 90520-17042 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=1.20 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
PZJ7#..STD 厚さ=1.20 |
2 | ||
| 90520-17042 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=1.20 |
1 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45870-60050 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45205-60110 |
PZJ7#..STD |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-60060 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45210-60070 |
PZJ7#..STD |
1 | ||
| 45210-60060 |
PZJ77;HZJ73,PZJ70..4NO |
1 | ||
| 45222F - COVER, DUST | ||||
| 45222-60031 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45225 - BLOCK, BEARING | ||||
| 45225-60010 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45225A - RING, O(FOR BEARING BLOCK) | ||||
| 96711-24053 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-60090 |
FJ75,HZJ7#,PZJ7# |
1 | ||
| 45272 - CLAMP, STEERING COLUMN, LOWER | ||||
| 45272-35020 |
HZJ73,PZJ70 |
1 | ||
| 45272-35020 |
FJ75,HZJ7#,PZJ7# |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-60191 |
PZJ7#..STD |
1 | ||
| 45280-60181 |
FJ75,HZJ7#,PZJ7#..MTM |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-6092913 |
PZJ70..SOT BLUISH GRAY,TRIM1# |
1 | ||
| 45286-6093116 |
PZJ70..SOT SABLE,TRIM4# |
1 | ||
| 45286-6092916 |
PZJ70..SOT SABLE,TRIM4# |
1 | ||
| 45286-6093113 |
HZJ71,PZJ70..SOT BLUISH GRAY,TRIM1# |
1 | ||
| 45291A - SUPPORT, STEERING COLUMN TUBE | ||||
| 45291-60041 |
FJ75,HZJ7#,PZJ7# |
1 | ||
| 45291-60041 |
HZJ73,PZJ70 |
1 | ||
| 45291B - RING, O(FOR STEERING COLUMN TUBE SUPPORT) | ||||
| 90301-61002 |
FJ75,HZJ7#,PZJ7# |
1 | ||
| 90301-60122 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45298 - PLUG, STEERING COLUMN COVER | ||||
| 45298-60010 |
HZJ71,PZJ70..SOT |
1 | ||
| 45635 - SUPPORT, INTERMEDIATE LINK JOINT PROTECTOR | ||||
| 45635-60050 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
1 | ||
| 45636B - PROTECTOR, INTERMEDIATE LINK JOINT | ||||
| 45636-60051 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-14010 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45897-12030 |
PZJ7#..STD |
1 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 91611-60616 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 91651-60616 | ||||
| 91651-60818 | ||||
| 91651-60825 | ||||
| 93315-14012 | ||||
| 94612-11001 | ||||
ILLUST NO. 2 OF 2(9001-9108)EX5,LX,LX5,SX5,ZX ; (9108- )
TILT STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081 - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45081-22020 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-23009 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02034 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 長さ=107.5 |
2 | ||
| 90945-02038 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 長さ=105.5 |
2 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-6092913 |
PZJ70..SOT BLUISH GRAY,TRIM1# |
1 | ||
| 45286-6093116 |
PZJ70..SOT SABLE,TRIM4# |
1 | ||
| 45286-6092916 |
PZJ70..SOT SABLE,TRIM4# |
1 | ||
| 45286-6093113 |
HZJ71,PZJ70..SOT BLUISH GRAY,TRIM1# |
1 | ||
| 45289A - SUPPORT, STEERING COLUMN COVER | ||||
| 45289-22020 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45298 - PLUG, STEERING COLUMN COVER | ||||
| 45298-60010 |
HZJ71,PZJ70..SOT |
1 | ||
| 45804 - LEVER SUB-ASSY, STEERING TILT | ||||
| 45804-22010 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45082-60020 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-22010 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 外径=17.996−18.003 |
1 | ||
| 45813-22020 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 外径=18.003−18.010 |
1 | ||
| 45813-22040 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 外径=18.017−18.024 |
1 | ||
| 45813-22050 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 外径=17.989−17.996 |
1 | ||
| 45813-22030 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 外径=18.010−18.017 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-22020 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 外径=18.000−18.018 |
1 | ||
| 45814-22010 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 外径=17.982−18.000 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-22080 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=0.8 |
1 | ||
| 45815-22060 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=0.2 |
1 | ||
| 45815-22070 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=0.5 |
1 | ||
| 45815-22090 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=1.4 |
1 | ||
| 45815-22100 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=1.8 |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22011 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08002 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45821B - REINFORCE, TILT STEERING SUPPORT, NO.1 | ||||
| 45821-22010 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-14001 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 90241-06039 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-22050 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45898B - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-22010 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45899A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| Common parts | ||||
| 90109-08112 | ||||
| 90114-08002 | ||||
| 90119-06029 | ||||
| 90119-06348 | ||||
| 90119-08165 | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90980-07195 | ||||
| 91611-60840 | ||||
| 93315-14010 | ||||
| 94130-00802 | ||||
| 94182-10800 | ||||
| 94183-60601 | ||||
| 94531-00800 | ||||
| 94612-11001 | ||||
ILLUST NO. 1 OF 2(9004-9108)LJ7# ; (9108- )
TILT STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025 - COVER, STEERING INTERMEDIATE SHAFT | ||||
| 45025-60060 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45025-60050 |
FJ75,HZJ7#,PZJ7# |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 90363-28001 |
PZJ77;HZJ73,PZJ70..4NO |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
PZJ7#..STD 厚さ=1.20 |
2 | ||
| 90520-17042 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=1.20 |
1 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45205E - RING, SNAP(FOR STEERING COLUMN TUBE) | ||||
| 90521-01002 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45870-60050 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45205-60110 |
PZJ7#..STD |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-60060 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45210-60070 |
PZJ7#..STD |
1 | ||
| 45210-60060 |
PZJ77;HZJ73,PZJ70..4NO |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-60100 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45220-60100 |
PZJ77;HZJ73,PZJ70..4NO |
1 | ||
| 45222F - COVER, DUST | ||||
| 45222-60031 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45225 - BLOCK, BEARING | ||||
| 45225-60010 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45225A - RING, O(FOR BEARING BLOCK) | ||||
| 96711-24053 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-60050 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-60010 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-60090 |
FJ75,HZJ7#,PZJ7# |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-60191 |
PZJ7#..STD |
1 | ||
| 45280-60181 |
FJ75,HZJ7#,PZJ7#..MTM |
1 | ||
| 45291 - SEAL, MAIN SHAFT UPPER DUST | ||||
| 45282-22010 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45291B - RING, O(FOR STEERING COLUMN TUBE SUPPORT) | ||||
| 90301-61002 |
FJ75,HZJ7#,PZJ7# |
1 | ||
| 90301-60122 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45635 - SUPPORT, INTERMEDIATE LINK JOINT PROTECTOR | ||||
| 45635-60050 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
1 | ||
| 45636B - PROTECTOR, INTERMEDIATE LINK JOINT | ||||
| 45636-60051 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-14010 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 45897-12030 |
PZJ7#..STD |
1 | ||
| Common parts | ||||
| 90119-08042 | ||||
| 90119-08560 | ||||
| 90501-02010 | ||||
| 90540-03002 | ||||
| 91611-60618 | ||||
| 91611-60816 | ||||
| 91611-B0816 | ||||
| 91651-60616 | ||||
| 91651-60818 | ||||
| 91651-60825 | ||||
| 91651-B0820 | ||||
| 91651-B0822 | ||||
| 93319-13012 | ||||
| 93319-14012 | ||||
| 96160-00300 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
