LJ78G-PGT (1990)

Toyota Land Cruiser S/T,H/T

Production Apr 1990 - Aug 1992
Engine 2LTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9004- )HZJ76,77,KZJ78,LJ78,PZJ77

Click highlighted areas on diagram

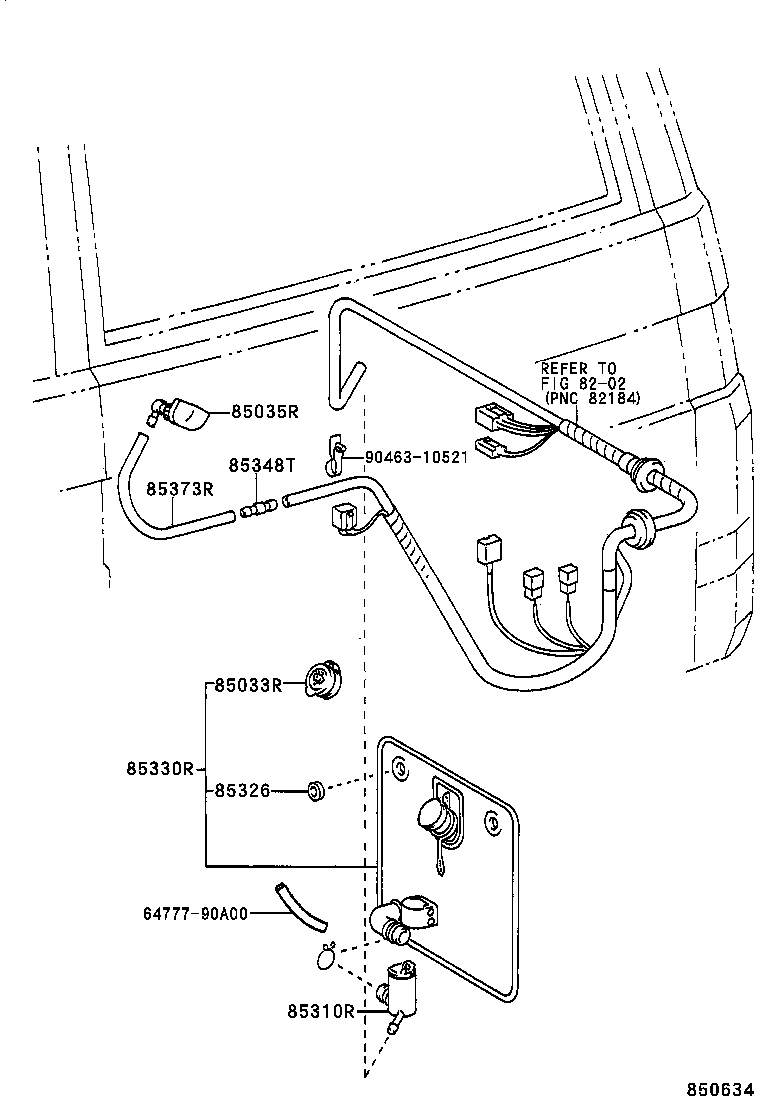

diagram 6477790A00 8202 85033R 85035R 85310R 85326 85330R 85348T 85373R 9046310521
Part # Description Qty Price
85310R - MOTOR ASSY, REAR WASHER
85310-22080

HZJ71,74,76,LJ7#..HT,WG

 1
85326 - PACKING, WASHER
85326-60040

HZJ77..ZX;HZJ76,LJ78,PZJ77

 1
85330R - JAR ASSY, REAR WASHER
85325-60040

HZJ77..ZX;HZJ76,LJ78,PZJ77..EX,EX5,LX,LX5,SX5,ZX

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#..HT,WG

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90446-06013

HZJ7#,LJ7#,PZJ7#..HT,WG

*H,L=230

 1
Common parts
64777-90A00
90463-10521
Linked diagrams
8202
