LJ78G-PGT (1990)

Toyota Land Cruiser S/T,H/T

Production Apr 1990 - Aug 1992
Engine 2LTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

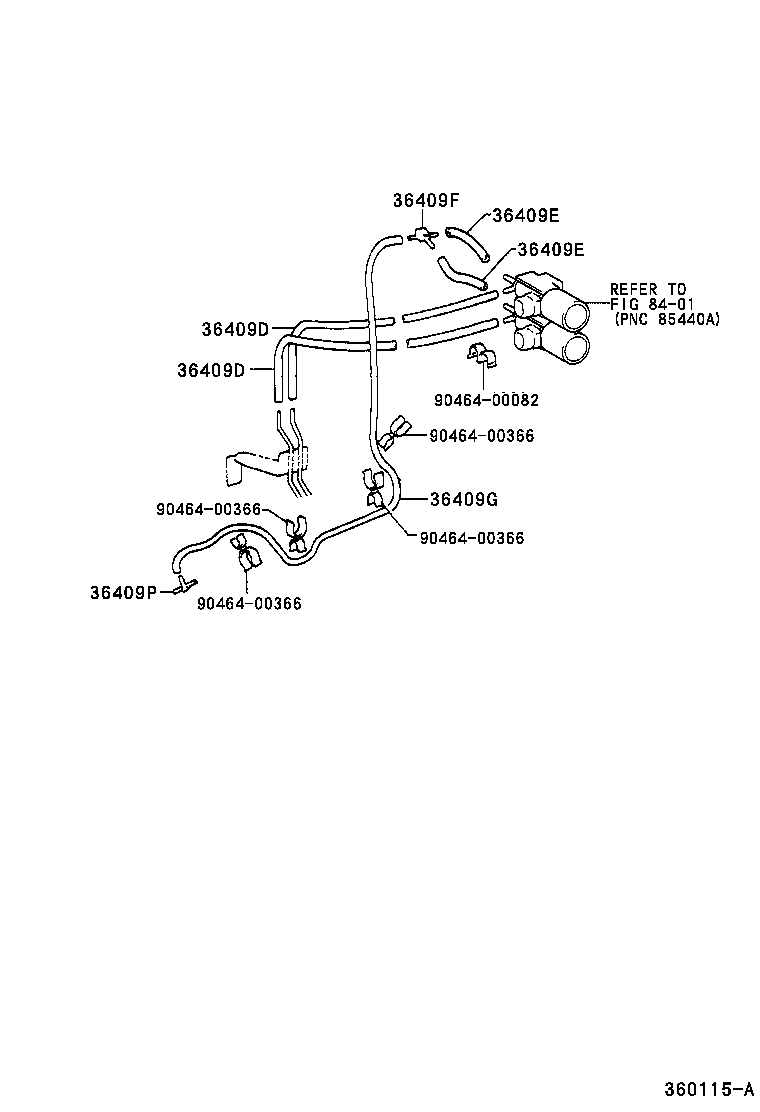

ILLUST NO. 2 OF 2(9001-9305)LJ7#

Click highlighted areas on diagram

diagram 36409D 36409D 36409E 36409E 36409F 36409G 36409P 8401 9046400082 9046400366 9046400366 9046400366 9046400366
Part # Description Qty Price
36409D - HOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT)
90999-92002

HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#

*H,L=260,ﾏｰｸ=#*

 2
36409D - HOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT)
90999-92002

HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#

*H,L=260,ﾏｰｸ=#*

 2
36409E - HOSE, VACUUM, NO.3 (FOR FRONT DRIVE SHIFT)
90999-92002

HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#

*H,L=80,ﾏｰｸ=#*

 2
36409E - HOSE, VACUUM, NO.3 (FOR FRONT DRIVE SHIFT)
90999-92002

HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#

*H,L=80,ﾏｰｸ=#*

 2
36409F - WAY, 3, NO.1 (FOR FRONT DRIVE SHIFT)
90413-04005

HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#

 1
Common parts
90464-00082
90464-00366
Linked diagrams
8401
