LJ78G-PET (1990)
Toyota Land Cruiser S/T,H/T

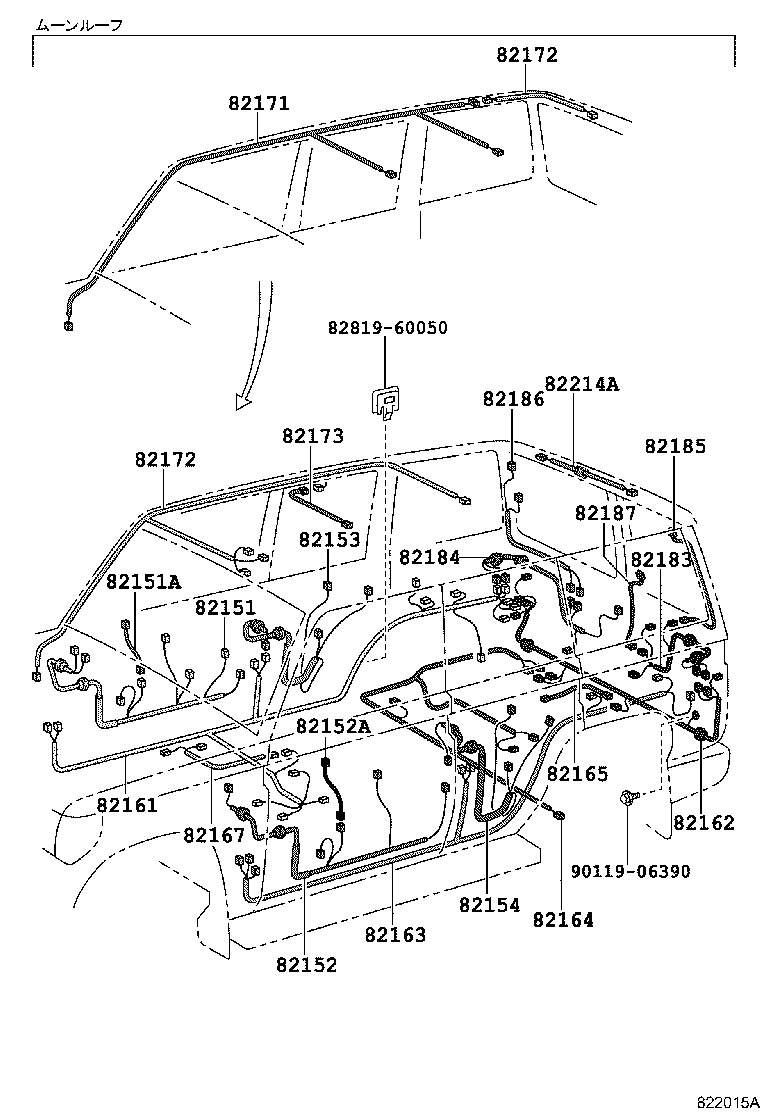

ILLUST NO. 3 OF 6(9004- )HZJ76,77,LJ78,PZJ77 ; (9305- )KZJ78
ﾙ-ﾌ,ﾄﾞｱ,ﾌﾛｱﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-60150 |
LJ78..EX,EX5,SX5 |
1 | ||
| 82151A - WIRE, FRONT DOOR, NO.2, RH | ||||
| 82151-60180 |
HZJ77,LJ78,PZJ77..EX,EX5,LX,LX5,SX5,ZX |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-60120 |
LJ78..EX,EX5,SX5 |
1 | ||
| 82152A - WIRE, FRONT DOOR, NO.2, LH | ||||
| 82151-60180 |
HZJ77,LJ78,PZJ77..EX,EX5,LX,LX5,SX5,ZX |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-60040 |
LJ78..EX,EX5,SX5 |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-60040 |
LJ78..EX,EX5,SX5 |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-60300 |
LJ78..ATM..SX5;HZJ77,PZJ77..LX,ZX |
1 | ||
| 82161-60301 |
LJ78..ATM..SX5;HZJ77,PZJ77..LX,ZX |
1 | ||
| 82161-60302 |
LJ78..ATM..SX5;HZJ77,PZJ77..LX,ZX |
1 | ||
| 82161-60303 |
HZJ77,LJ78..ATM..(SX5,ZX) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-60130 |
LJ7#..LX5,SX5 |
1 | ||
| 82162-60140 |
LJ7#..LX5,SX5 ｱﾘ(*FFA) |
1 | ||
| 82162-60131 |
LJ7#..LX5,SX5 |
1 | ||
| 82162-60141 |
LJ7#..LX5,SX5 ｱﾘ(*FFA) |
1 | ||
| 82162-60142 |
LJ7#..LX5,SX5 ｱﾘ(ﾃﾞｲﾌｱﾚﾝｼﾔﾙ ﾛﾂｸ) |
1 | ||
| 82162-60132 |
LJ7#..LX5,SX5 |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-60152 |
HZJ77,LJ78..SX5,ZX |
1 | ||
| 82163-60150 |
HZJ77,LJ78..SX5,ZX |
1 | ||
| 82163-60151 |
HZJ77,LJ78..SX5,ZX |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-60060 |
LJ78..EX,EX5,SX5 |
1 | ||
| 82164-60081 |
LJ78..EX,EX5,SX5 ｱﾘ(ﾃﾞｲﾌｱﾚﾝｼﾔﾙ ﾛﾂｸ) |
1 | ||
| 82164-60080 |
LJ78..EX5,SX5 ｱﾘ(ﾃﾞｲﾌｱﾚﾝｼﾔﾙ ﾛﾂｸ) |
1 | ||
| 82164-60082 |
LJ78..EX,SX5 ｱﾘ(ﾃﾞｲﾌｱﾚﾝｼﾔﾙ ﾛﾂｸ) |
1 | ||
| 82164-60061 |
LJ78..EX,SX5 |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-60061 |
HZJ77,LJ78,PZJ77 |
1 | ||
| 82165-60060 |
HZJ77,LJ78,PZJ77 |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-90K00 |
HZJ73,77,LJ7#..EX,EX5,SX5,ZX |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-60180 |
PZJ77..LX..1NO;LJ78,PZJ77..(LX,LX5,STD,SX5)..(4NO,5NO) |
1 | ||
| 82171-60181 |
PZJ77..LX..1NO;LJ78,PZJ77..(LX,LX5,STD,SX5)..(4NO,5NO) |
1 | ||
| 82171-60182 |
HZJ76,79,LJ78,PZJ77..LX,LX5,STD,SX5 |
1 | ||
| 82171-60401 |
LJ78,PZJ77..(LX,LX5,SX5)..(Q,U) ｱﾘ(ｻﾝﾙ-ﾌ) |
1 | ||
| 82171-60400 |
LJ78,PZJ77..LX,LX5,SX5 ｱﾘ(ｻﾝ ﾙ-ﾌ) |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-60060 |
HZJ77..ZX;HZJ71,76,LJ7#,PZJ7#..HT,WG |
1 | ||
| 82172-60020 |
HZJ77,LJ78,PZJ77..EX5,LX,LX5,SX5,ZX |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-60060 |
HZJ77..ZX;HZJ71,76,LJ7#,PZJ7#..HT,WG |
1 | ||
| 82172-60020 |
HZJ77,LJ78,PZJ77..EX5,LX,LX5,SX5,ZX |
1 | ||
| 82173 - WIRE, ROOF, NO.3 | ||||
| 82173-60020 |
HZJ77,LJ78,PZJ77..(EX,EX5,LX,LX5,SX5,ZX)..(Q,U) |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-60100 |
HZJ7#,LJ78..EX5,SX5,ZX |
1 | ||
| 82183-60102 |
HZJ77,LJ78..EX,SX5,ZX |
1 | ||
| 82183-60101 |
HZJ77,LJ78..EX,EX5,SX5,ZX |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-60081 |
LJ78..LX5,SX5;HZJ77,LJ71,PZJ7#..LX,LX5,ZX |
1 | ||
| 82184-60082 |
HZJ77..ZX;HZJ76,LJ78..LX,LX5,SX5,ZX;HZJ71,74,LJ71,PZJ7#..(HT,WG)..(LX,LX5) |
1 | ||
| 82184-60080 |
LJ78..LX5,SX5;HZJ7#,LJ71,PZJ7#..LX,LX5,ZX |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-60050 |
HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#..HT,WG |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-60020 |
HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#..HT,WG |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-90K00 |
HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#..HT,WG |
1 | ||
| 82214A - WIRE, LAMP | ||||
| 82214-60010 |
HZJ77..ZX;HZJ71,76,LJ7#,PZJ7#..(HT,WG)..(EX,LX,STD,SX5,ZX) |
1 | ||
| Common parts | ||||
| 82819-60050 | ||||
| 90119-06390 | ||||

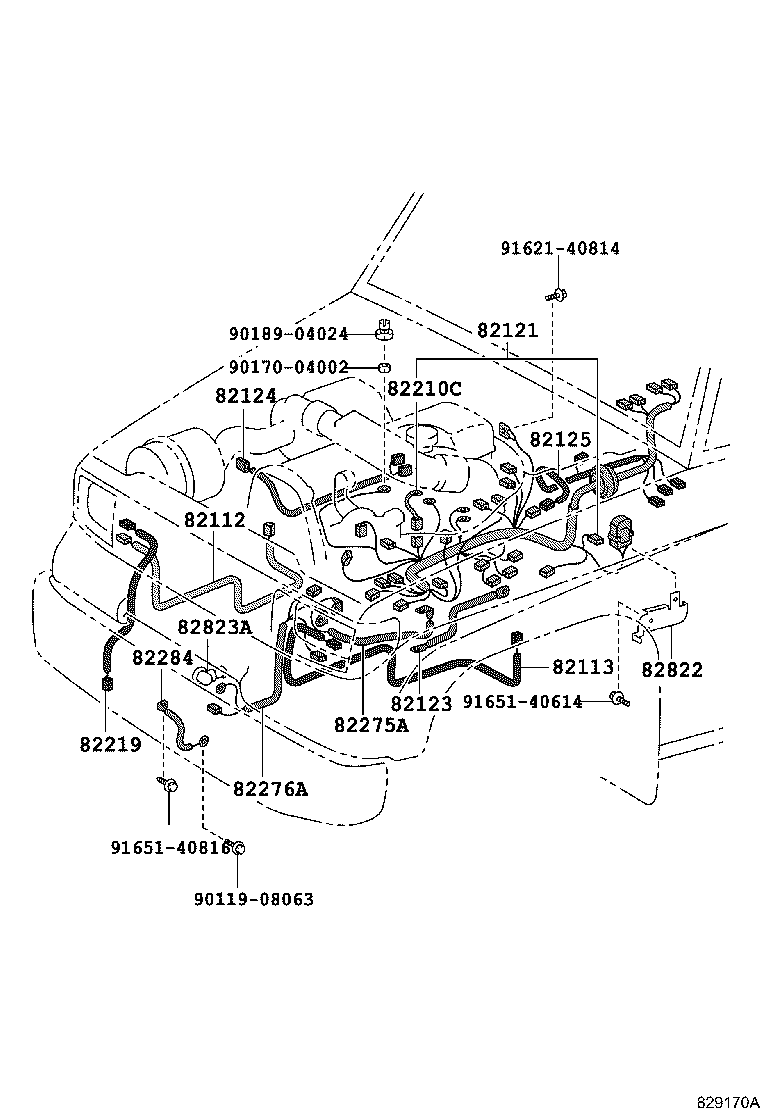

ILLUST NO. 1 OF 6(9004-9305)LJ7# ; (9305- )KZJ7#
ｴﾝｼﾞﾝﾜｲﾔ & ﾄﾗﾝｽﾐﾂｼﾖﾝﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-60081 |
LJ7#..EX,EX5,SX5 |
1 | ||
| 82112-60080 |
LJ7#..EX5,SX5 |
1 | ||
| 82112-60082 |
LJ7#..EX,SX5 |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-60021 |
LJ7#..EX,EX5,SX5 |
1 | ||
| 82113-60022 |
LJ7#..EX,SX5 |
1 | ||
| 82113-60020 |
LJ7#..EX5,SX5 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-60250 |
LJ7#..ATM |
1 | ||
| 82121-60252 |
LJ7#..ATM |
1 | ||
| 82121-60251 |
LJ7#..ATM |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-90K05 |
LJ7# |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-90K01 |
LJ7# |
1 | ||
| 82124-60020 |
LJ7# |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-60142 |
LJ7#..ATM |
1 | ||
| 82125-60141 |
LJ7#..ATM |
1 | ||
| 82125-60140 |
LJ7#..ATM |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08261 |
LJ7# 長さ=110,0.5 ｸﾞﾘｰﾝ,NO.1 |
1 | ||
| 90982-08263 |
LJ7# NO.2 |
1 | ||
| 82627-60030 |
LJ7# NO.2 |
1 | ||
| 82219 - WIRE, THERMO SENSOR | ||||
| 82219-90K00 |
HZJ77;HZJ73,LJ7#,PZJ7#..(HT,WG)..(Q,S) |
1 | ||
| 82219-90K00 |
PZJ77..4NO;HZJ77,LJ7#,PZJ70..HT,WG |
1 | ||
| 82219-90K00 |
HZJ73..MTM..1NO;LJ7#,PZJ7#..(HT,WG)..(3NO,4NO,5NO) |
1 | ||
| 82275A - CABLE, BATTERY TO MAGNET SWITCH | ||||
| 82275-90K02 |
PZJ70;PZJ77..1NO;HZJ73,77,LJ7#..Q,U |
1 | ||
| 82275-60040 |
LJ7# ｱﾘ(2 ﾊﾞﾂﾃﾘ---ﾍｲﾚﾂ) |
1 | ||
| 82276A - CABLE, MAGNET SWITCH TO WINCH | ||||
| 82276-60040 |
PZJ70;PZJ77..1NO;HZJ73,77,LJ7#..Q,U |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-60030 |
LJ7# |
1 | ||
| 82822 - BRACKET,CONNECTOR BLOCK | ||||
| 82822-60021 |
LJ7# |
1 | ||
| 82822-60020 |
LJ7# |
1 | ||
| 82823A - CAP, TERMINAL, NO.2 | ||||
| 82823-90300 |
PZJ70;PZJ77..1NO;HZJ73,77,LJ7#..Q,U |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90170-04002 | ||||
| 90189-04024 | ||||
| 91621-40814 | ||||
| 91651-40614 | ||||
| 91651-40816 | ||||
