LJ78G-PET (1990)

Toyota Land Cruiser S/T,H/T

Production Apr 1990 - May 1993
Engine 2LTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9004- )KZJ7#,LJ7#

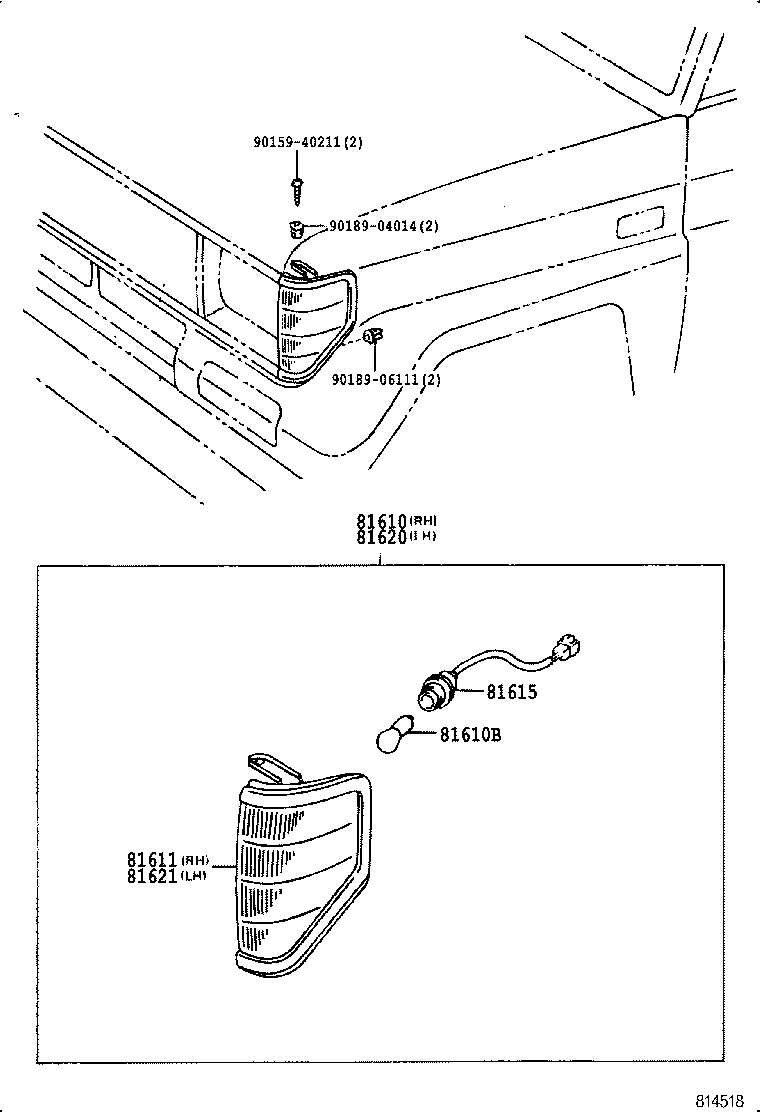

Click highlighted areas on diagram

diagram 81610 81610B 81611 81615 81620 81621 9015940211 9018904014 9018906111
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-60151

LJ7#

 1
81610-60150

LJ7#

 1
81610-60152

LJ7#

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
90981-13036

LJ7#

12V 35/5W

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-60151

LJ7#

 1
81611-60150

LJ7#

 1
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81615-60152

LJ7#

 2
81615-60150

LJ7#

 2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-60132

LJ7#

 1
81620-60131

LJ7#

 1
81620-60130

LJ7#

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-60131

LJ7#

 1
81621-60130

LJ7#

 1
Common parts
90159-40211
90189-04014
90189-06111
