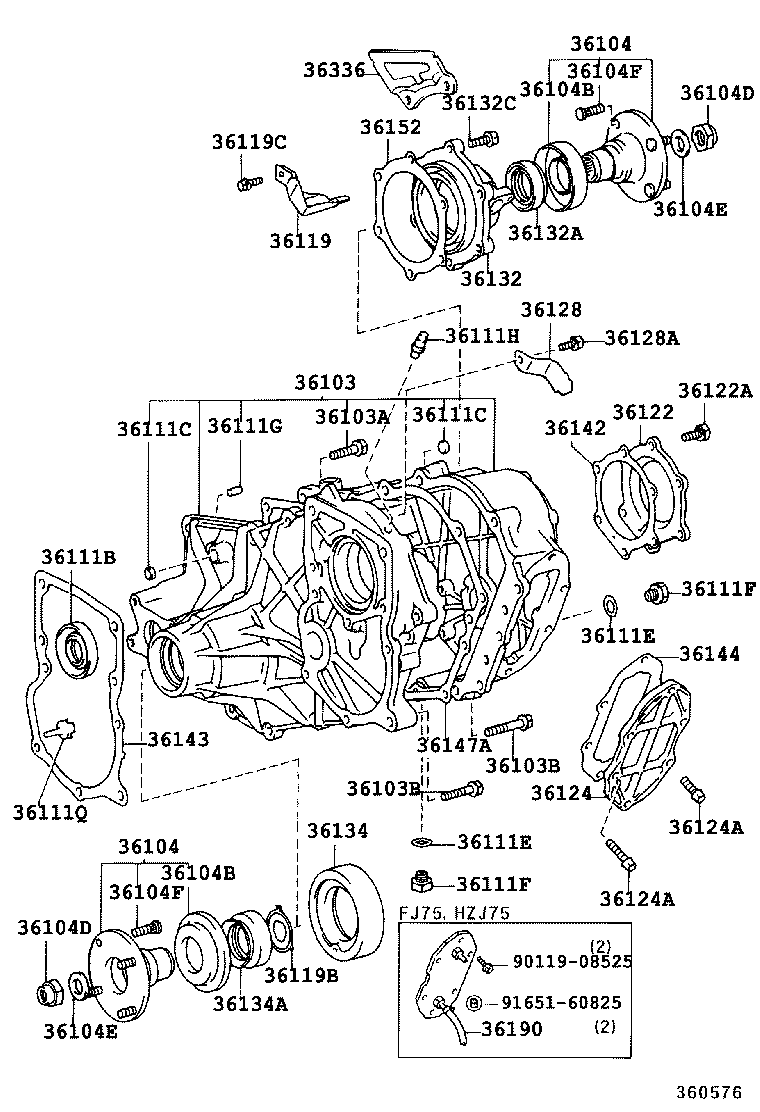

LJ78G-PET (1990)
Toyota Land Cruiser S/T,H/T
(9001-9908) ; (9908- )ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36103 - CASE SUB-ASSY, TRANSFER | ||||
| 36103-60190 |
LJ7#;HZJ71,74,76,PZJ7#..MTM |
1 | ||
| 36103A - BOLT (FOR TRANSFER CASE) | ||||
| 91651-61040 |
FJ75,HZJ7#,LJ7#,PZJ7# *10−1.25PX40−30 |
8 | ||
| 90119-10688 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# *10−1.25PX35−35 |
3 | ||
| 90119-10689 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# *10−1.25PX40−40 |
8 | ||
| 91651-61030 |
FJ75,HZJ7#,LJ7#,PZJ7# *10−1.25PX30−30 |
3 | ||
| 36103B - BOLT (FOR TRANSFER CASE & ADAPTER SETTING) | ||||
| 90119-12095 |
HZJ7#..ATM;LJ7#,PZJ7# *12−.125PX93−30 |
3 | ||
| 91659-61245 |
HZJ73,77..ATM..ZX;HZJ71,74,76,79,LJ7#,PZJ7# *12−1.25PX40−30 |
4 | ||
| 91652-61040 |
LJ7#,PZJ7#;HZJ74,76..ATM;HZJ73,77..ATM..ZX *10−1.25PX40−30 |
1 | ||
| 90119-12234 |
HZJ73,77..ATM..ZX;HZJ71,74,76,79,LJ7#,PZJ7# *12−1.25PX93−30 |
3 | ||
| 36103B - BOLT (FOR TRANSFER CASE & ADAPTER SETTING) | ||||
| 90119-12095 |
HZJ7#..ATM;LJ7#,PZJ7# *12−.125PX93−30 |
3 | ||
| 91659-61245 |
HZJ73,77..ATM..ZX;HZJ71,74,76,79,LJ7#,PZJ7# *12−1.25PX40−30 |
4 | ||
| 91652-61040 |
LJ7#,PZJ7#;HZJ74,76..ATM;HZJ73,77..ATM..ZX *10−1.25PX40−30 |
1 | ||
| 90119-12234 |
HZJ73,77..ATM..ZX;HZJ71,74,76,79,LJ7#,PZJ7# *12−1.25PX93−30 |
3 | ||
| 36104 - FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33309-60060 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# ﾌﾛﾝﾄ |
1 | ||
| 33309-60051 |
LJ7# ﾘﾔ |
1 | ||
| 36104 - FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33309-60060 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# ﾌﾛﾝﾄ |
1 | ||
| 33309-60051 |
LJ7# ﾘﾔ |
1 | ||
| 36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33325-60021 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# ﾘﾔ |
1 | ||
| 33325-60010 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# ﾌﾛﾝﾄ |
1 | ||
| 36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33325-60021 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# ﾘﾔ |
1 | ||
| 33325-60010 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# ﾌﾛﾝﾄ |
1 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-22005 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
2 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-22005 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
2 | ||
| 36104E - WASHER, PLATE (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90201-22005 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
2 | ||
| 36104E - WASHER, PLATE (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90201-22005 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
2 | ||
| 36104F - BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90114-10017 |
LJ7# |
8 | ||
| 36104F - BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90114-10017 |
LJ7# |
8 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90316-48003 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 36111C - PLUG (FOR TRANSFER CASE) | ||||
| 96411-11600 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
2 | ||
| 36111C - PLUG (FOR TRANSFER CASE) | ||||
| 96411-11600 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
2 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
2 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
2 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# FILLER PLUG |
1 | ||
| 90341-18057 |
LJ7#..ATM DRAIN PLUG |
1 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# FILLER PLUG |
1 | ||
| 90341-18057 |
LJ7#..ATM DRAIN PLUG |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10006 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 長さ=24,外径=10 |
2 | ||
| 90250-12216 |
LJ7#..ATM 長さ=14,外径=12 |
2 | ||
| 36111H - PLUG, BREATHER (FOR TRANSFER CASE) | ||||
| 90930-03075 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 36119 - RECEIVER, TRANSFER OIL, NO.1 | ||||
| 36119-60010 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 36119B - RECEIVER, TRANSFER OIL, NO.2 | ||||
| 36119-60030 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 36119C - BOLT (FOR TRANSFER OIL RECEIVER NO.1) | ||||
| 91611-60610 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# *6−1.00PX10−10 |
1 | ||
| 36122 - COVER, TRANSFER CASE, NO.2 | ||||
| 36122-60040 |
HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7# |
1 | ||
| 36122A - BOLT (FOR TRANSFER CASE)COVER NO.2 | ||||
| 91612-B1020 |
HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7# |
6 | ||
| 36124 - COVER, TRANSFER POWER TAKE-OFF | ||||
| 36124-60020 |
HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7# |
1 | ||
| 36124A - BOLT (FOR TRANSFER POWER TAKE-OFF COVER) | ||||
| 91651-60830 |
HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7# *8−1.25PX30−30 |
4 | ||
| 90119-08353 |
HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7# *8−1.25PX30−23.5 |
2 | ||
| 36124A - BOLT (FOR TRANSFER POWER TAKE-OFF COVER) | ||||
| 91651-60830 |
HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7# *8−1.25PX30−30 |
4 | ||
| 90119-08353 |
HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7# *8−1.25PX30−23.5 |
2 | ||
| 36128 - DEFLECTOR, BREATHER OIL | ||||
| 36128-60021 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 36132 - RETAINER, OUTPUT SHAFT BEARING, REAR NO.1 | ||||
| 36132-60020 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 36132A - SEAL, OIL (FOR OUTPUT SHAFT RETAINER) | ||||
| 90311-48010 |
FJ75,HZJ7#,LJ7#,PZJ7# 外径=62 |
1 | ||
| 90311-48023 |
FJ75,HZJ7#,LJ7#,PZJ7# 外径=65 |
1 | ||
| 36132C - BOLT (FOR OUTPUT SHAFT BEARING RETAINER REAR NO.1) | ||||
| 90119-10262 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
6 | ||
| 36134 - RETAINER, OUTPUT SHAFT BEARING, FRONT | ||||
| 36134-60020 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 36134A - SEAL, OIL (FOR OUTPUT SHAFT BEARING FRONT RETAINER) | ||||
| 90311-48009 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 36142 - GASKET, TRANSFER COVER | ||||
| 36142-60030 |
HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7# |
1 | ||
| 36143 - GASKET, TRANSFER CASE, FRONT | ||||
| 36143-60050 |
LJ7#..ATM |
1 | ||
| 36144 - GASKET, TRANSFER POWER TAKE-OFF COVER | ||||
| 36144-60020 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 36147A - GASKET, TRANSFER CASE | ||||
| 36143-60020 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 36152 - GASKET, OUTPUT SHAFT BEARING RETAINER | ||||
| 36152-60030 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 36336 - INSULATOR, TRANSFER HEAT | ||||
| 36336-60020 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM |
1 | ||
| Common parts | ||||
| 90119-08525 | ||||
| 91651-60825 | ||||
