Toyota Land cruiser s/t,h/t LJ78 CLUTCH PEDAL & FLEXIBLE HOSE

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-60120	LJ7#..MTM	04/1990 - 05/1993	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13020	PZJ77..4NO;PZJ77..LX..1NO;HZJ73,77..MTM..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ70..MTM	05/1992 - 12/2999	2
90386-13192	PZJ77..4NO;PZJ77..LX..1NO;FJ75,HZJ7#,LJ7#,PZJ70..MTM	01/1990 - 05/1992	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13020	PZJ77..4NO;PZJ77..LX..1NO;HZJ73,77..MTM..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ70..MTM	05/1992 - 12/2999	2
90386-13192	PZJ77..4NO;PZJ77..LX..1NO;FJ75,HZJ7#,LJ7#,PZJ70..MTM	01/1990 - 05/1992	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
91131-50828	PZJ77..4NO;PZJ77..LX..1NO;HZJ73,77..MTM..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ70..MTM	01/1990 - 12/2999	1
31321 - PAD, CLUTCH PEDAL
31321-14020	PZJ77..4NO;PZJ77..LX..1NO;HZJ73,77..MTM..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ70..MTM	01/1990 - 12/2999	1
31324 - SHAFT, CLUTCH PEDAL
91121-51070	FJ75,LJ7#,PZJ7#..MTM..(EX,EX5,LX5,STD,SX5)..(Q,S,T)	01/1990 - 05/1993	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004	FJ75,LJ7#,PZJ7#..MTM..(EX,EX5,LX5,STD,SX5)..(Q,S,T)	01/1990 - 05/1993	1
31354 - SEAT, CLUTCH PEDAL SPRING, UPPER
31354-12010	LJ7#..MTM	04/1990 - 05/1993	1
31354A - BUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)
90386-10019	LJ7#..MTM	04/1990 - 05/1993	1
31354B - PIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER)
90249-10127	LJ7#..MTM	04/1990 - 05/1993	1
31355 - SEAT, CLUTCH PEDAL SPRING, LOWER
31355-20020	LJ7#..MTM	04/1990 - 05/1993	1
31357B - ROD, OVER CENTER ADJUSTING
31357-60010	LJ7#..MTM	04/1990 - 05/1993	1
31357C - BUSH(FOR OVER CENTER ADJUSTING ROD)
90386-10019	LJ7#..MTM	04/1990 - 05/1993	1
31357D - SPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD)
90501-35013	LJ7#..MTM	04/1990 - 05/1993	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08018	PZJ77..4NO;PZJ77..LX..1NO;HZJ73,77..MTM..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ70..MTM 長さ=29.5	01/1990 - 12/2999	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08033	LJ7#..MTM	04/1990 - 05/1993	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-90K03	LJ7#..MTM	04/1990 - 05/1993	1
Common parts
90201-08267
90468-16142
91651-60816
94110-40800
94110-41000
94120-40800
94512-01000
94541-01000
94611-11001
96160-00800

Part #	Description	Period	Qty
04319 - CUP KIT, CLUTCH ACCUMULATOR
04319-35020	LJ7#..MTM	04/1990 - 05/1993	1
31418 - HOSE, CLUTCH
90931-01084	LJ7#..MTM	04/1990 - 05/1993	1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-60491	LJ7#..MTM	04/1990 - 05/1993	1
31482D - TUBE, CLUTCH RELEASE CYLINDER TO ACCUMULATOR
31482-35280	LJ7#..MTM	04/1990 - 05/1993	1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-60040	FJ75,LJ7#..MTM	04/1990 - 05/1993	1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-60071	LJ7#..MTM	07/1991 - 05/1993	1
31490-60070	LJ7#..MTM	04/1990 - 07/1991	1
31490E - GASKET(FOR CLUTCH ACCUMULATOR)
31497-35010	LJ7#..MTM	04/1990 - 05/1993	1
Common parts
47371-60020
47371-60030
90468-08034
91611-60614
91611-60816

LJ78G-MET (1990)

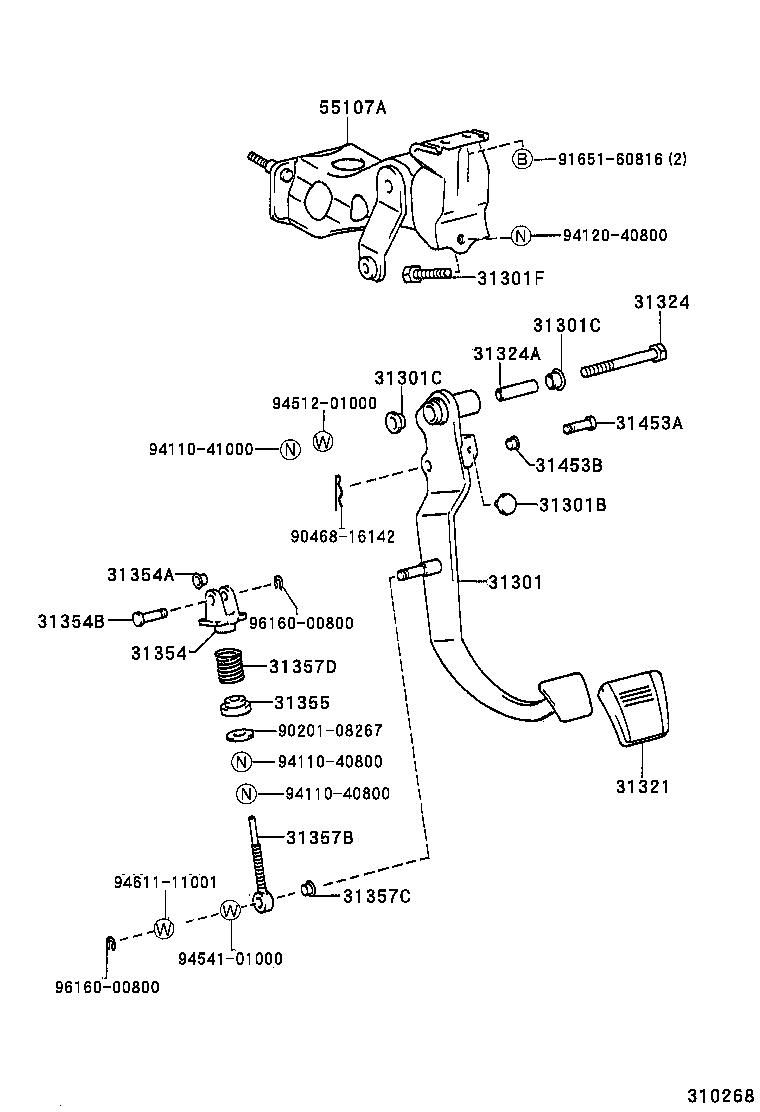

ILLUST NO. 1 OF 2(9004-9305)LJ7#..MTM ; (9305-9604)KZJ7#..MTM

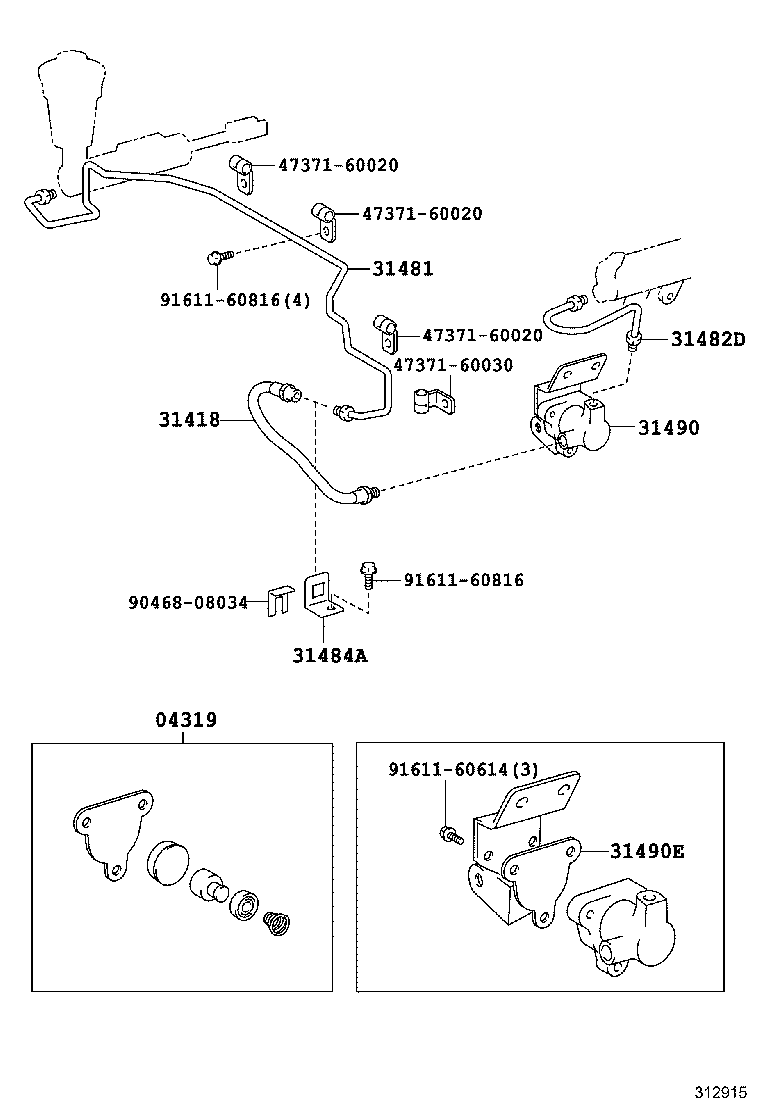

ILLUST NO. 2 OF 2(9004-9305)LJ7#..MTM
