Toyota Land cruiser s/t,h/t LJ78 ALTERNATOR

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-54030	2LTE..LJ7# 12V 55A	04/1990 - 05/1993	1
27039 - COVER, ALTERNATOR REAR END
27039-72010	1HZ,2LTE,1PZ..HZJ73,77,LJ7#,PZJ7#	01/1990 - 05/1993	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-54450	2LTE..LJ7#	04/1990 - 05/1993	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10165	2LTE..LJ7#	04/1990 - 05/1993	1
27312 - PLATE, RETAINER
27312-64130	2LTE..LJ7#	04/1990 - 05/1993	1
27330 - ROTOR ASSY, ALTERNATOR
27330-64130	2LTE..LJ7#	04/1990 - 05/1993	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	1PZ..PZJ7#;1HZ,2LTE..HZJ73,75,77,79,LJ7#..EX,EX5,LX5,STD,SX5,ZX	01/1990 - 12/2999	1
27350B - CONDENSER, ALTERNATOR
90099-52115	2LTE..LJ7#	04/1990 - 09/1991	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63060	2LTE..LJ7#	04/1990 - 05/1993	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-16180	1HZ,2LTE,1PZ..HZJ73,77,LJ7#,PZJ7#	01/1990 - 05/1993	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-54450	2LTE..LJ7#	04/1990 - 05/1993	1
27371 - BRUSH, ALTERNATOR
27371-70300	1HZ..HZJ73,77..ZX;1HZ,2LTE,1PZ..HZJ71,74,76,LJ7#,PZJ7#	05/1991 - 12/2999	2
27371-70300	2LTE..LJ7#	04/1990 - 05/1991	2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020	1HZ..HZJ73,77..ZX;1HZ,2LTE,1PZ..HZJ71,74,76,LJ7#,PZJ7#	01/1990 - 12/2000	2
27443 - COVER, ALTERNATOR BEARING
27443-63020	1HZ..HZJ73,77..ZX;1HZ,2LTE,1PZ..HZJ71,74,75,76,79,LJ7#,PZJ7#	01/1990 - 12/2999	1
27700A - REGULATOR ASSY, GENERATOR
27700-10061	2LTE..LJ7#	04/1990 - 01/1992	1
27700-54050	2LTE..LJ7#	01/1992 - 05/1993	1
29341 - SEAL, ALTERNATOR OIL
29341-64130	2LTE..LJ7#	04/1990 - 05/1993	1
Common parts
27387-70170
27389-63020
27445-54450
90099-00167
90099-00197
90099-00243
90099-04966
90099-05119
90099-05172
90105-10287
90119-08127
90119-08474
90179-06158
90179-10016
93319-14025

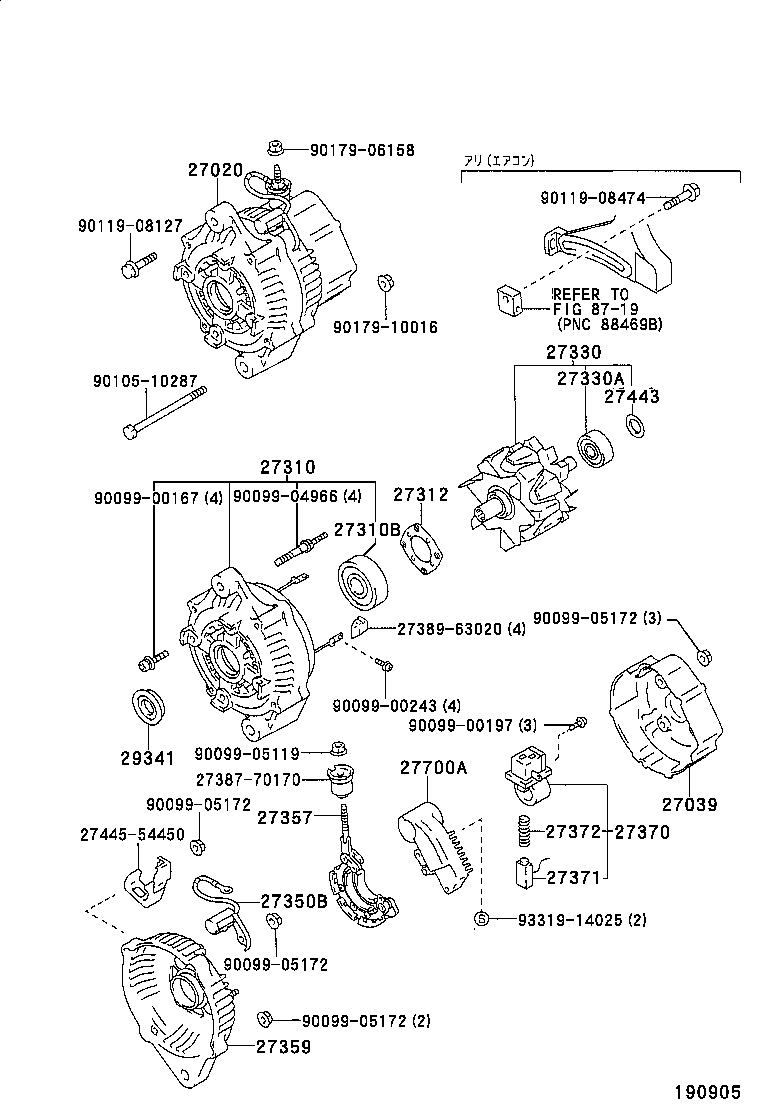

Linked diagrams
8719

LJ78G-MET (1990)

(9004- )2LTE
