LJ78G-MET (1990)

Toyota Land Cruiser S/T,H/T

Production Apr 1990 - May 1993
Engine 2LTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

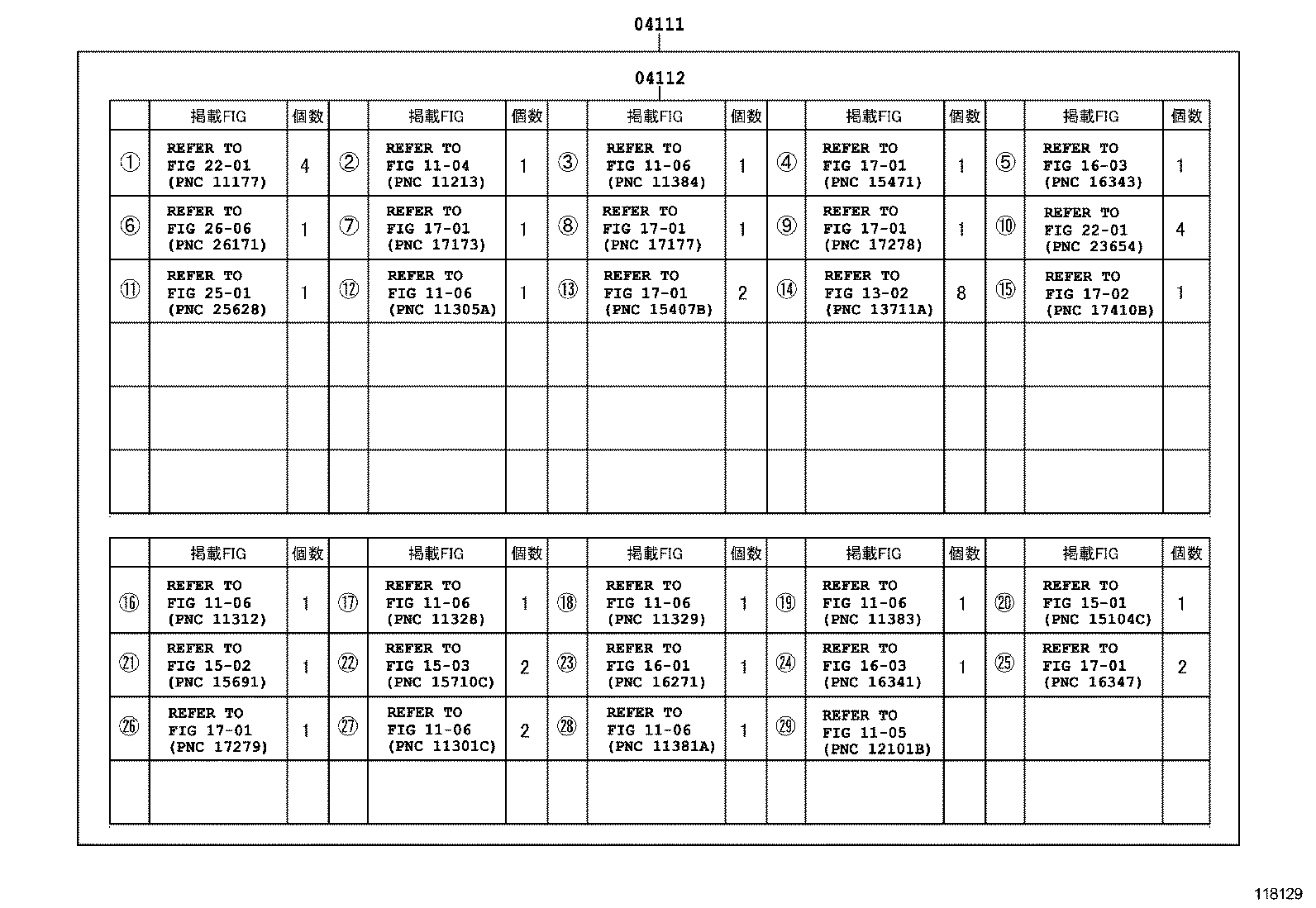

ILLUST NO. 1 OF 2(9004- )2LTE

Click highlighted areas on diagram

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-54103

2LTE..LJ7#

 1
04111-54102

2LTE..LJ7#

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-54100

2LTE..LJ7#

 1
04112-54101

2LTE..LJ7#

 1

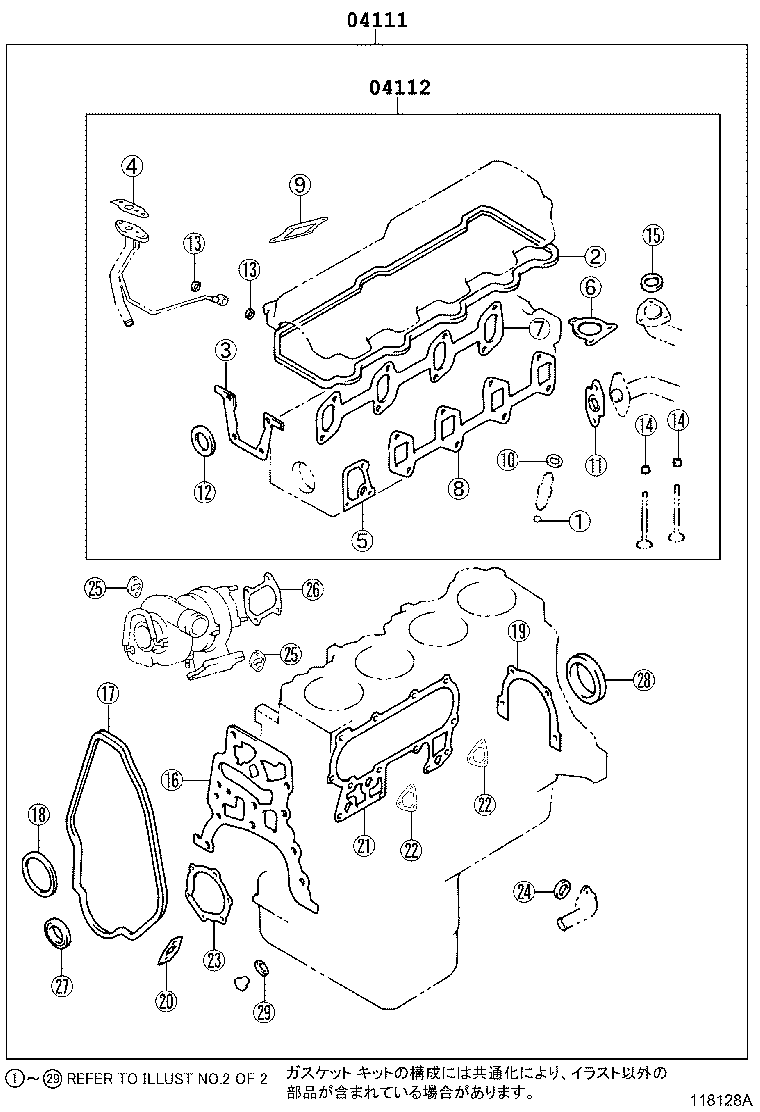

ILLUST NO. 2 OF 2(9004- )2LTE

Click highlighted areas on diagram

diagram 04111 04112 1104 1105 1106 1106 1106 1106 1106 1106 1106 1106 1302 1501 1502 1503 1601 1603 1603 1701 1701 1701 1701 1701 1701 1701 1702 2201 2201 2501 2606
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-54103

2LTE..LJ7#

 1
04111-54102

2LTE..LJ7#

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-54100

2LTE..LJ7#

 1
04112-54101

2LTE..LJ7#

 1
Linked diagrams
1104
1105
1106
1302
1501
1502
1503
1601
1603
1701
1702
2201
2501
2606
