LJ71G-PET (1990)
Toyota Land Cruiser S/T,H/T

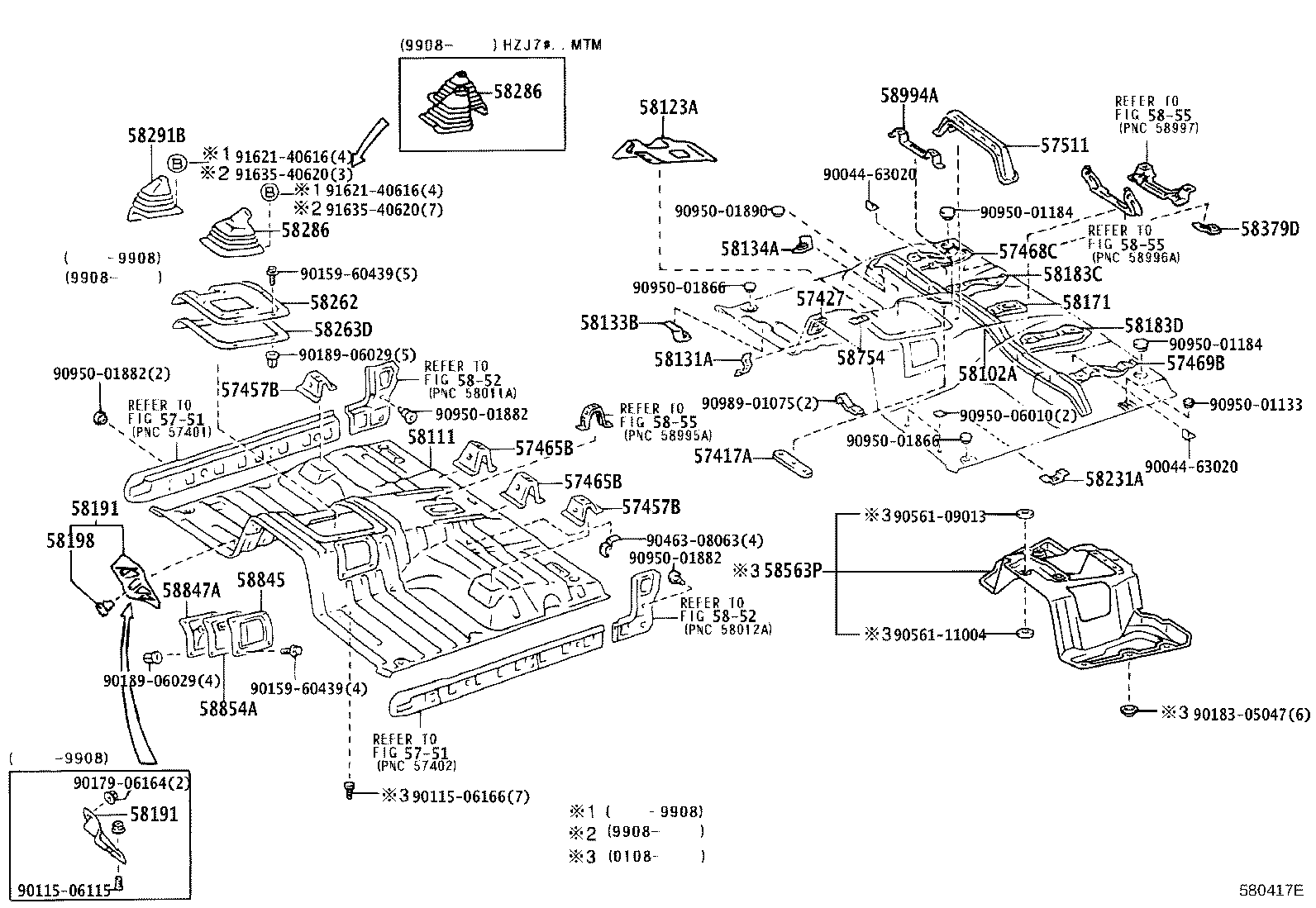

ILLUST NO. 1 OF 2(9001- )HZJ70,71,73,74,76,77,KZJ7#,LJ7#,PZJ7#; (9006-9208)FJ75 ; (9212- )HZJ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57417A - REINFORCEMENT, FRONT FLOOR UNDER | ||||
| 57417-90K00 |
LJ71..ATM ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 57417-90K00 |
LJ7#..ATM..SX5 NO.1 |
2 | ||
| 57427 - REINFORCEMENT, FRONT FLOOR TO BRACE | ||||
| 57427-90K00 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 57457B - BRACKET, FRONT SEAT, FRONT | ||||
| 57457-90K00 |
HZJ71,74,76,LJ7#,PZJ7#..LX,LX5,STD,SX5,ZX |
2 | ||
| 57457B - BRACKET, FRONT SEAT, FRONT | ||||
| 57457-90K00 |
HZJ71,74,76,LJ7#,PZJ7#..LX,LX5,STD,SX5,ZX |
2 | ||
| 57465B - BRACKET, FRONT SEAT, INNER | ||||
| 57465-90K00 |
HZJ71,74,76,79,LJ7#,PZJ7#..LX,LX5,STD,SX5,ZX |
2 | ||
| 57465B - BRACKET, FRONT SEAT, INNER | ||||
| 57465-90K00 |
HZJ71,74,76,79,LJ7#,PZJ7#..LX,LX5,STD,SX5,ZX |
2 | ||
| 57468C - BRACKET, FRONT SEAT, OUTSIDE, RH | ||||
| 57468-90K00 |
HZJ73,77..ZX;HZJ71,74,76,79,LJ7#,PZJ7# |
1 | ||
| 57469B - BRACKET, FRONT SEAT, OUTSIDE LH | ||||
| 57469-90K00 |
HZJ73,77..ZX;HZJ71,74,76,79,LJ7#,PZJ7# |
1 | ||
| 57511 - REINFORCEMENT, FRONT FLOOR, CENTER | ||||
| 57511-90K01 |
LJ7#,PZJ7#..LX,SX5 ｱﾘ(*SUS) |
1 | ||
| 57511-90K01 |
LJ7#,PZJ7#..LX,LX5,SX5 ｱﾘ(*SUS) |
1 | ||
| 57511-90K00 |
FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#..LX,LX5,STD,SX5,ZX |
1 | ||
| 57511-90K00 |
LJ7#..ATM..SX5 ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
2 | ||
| 57511-90K01 |
PZJ77..U;LJ7#,PZJ70..LX,SX5 ｱﾘ(*SUS) |
1 | ||
| 58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR | ||||
| 58102-60021 |
HZJ73,77,LJ7#,PZJ7# |
1 | ||
| 58102-60020 |
HZJ7#,LJ7#,PZJ7# |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-90L05 |
HZJ7#,LJ78..ATM;LJ71,PZJ7#..4NO,5NO;LJ78,PZJ77..MTM..(LX5,STD,SX5)..(1NO,5NO) ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 58111-90K97 |
HZJ7#,LJ7#..ATM;LJ7#,PZJ7#..(LX,LX5,STD)..(4NO,5NO) |
1 | ||
| 58111-90L05 |
HZJ7#,LJ78..ATM;LJ71,PZJ7#..4NO,5NO;LJ78..MTM..(LX5,SX5) ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 58111-90K97 |
PZJ77..4NO;HZJ73,77,LJ7#,PZJ70 |
1 | ||
| 58111-90L05 |
PZJ77..4NO;HZJ73,77,LJ7#,PZJ70 ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 58131A - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58131-90K00 |
FJ75,HZJ7#,LJ7#,PZJ7# |
1 | ||
| 58131-90K00 |
HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7# |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-90K00 |
HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7# |
1 | ||
| 58183C - BRACKET, FRONT SEAT MOUNTING, INSIDE RH | ||||
| 58183-90K00 |
HZJ73,77..ZX;HZJ71,74,76,79,LJ7#,PZJ7# |
1 | ||
| 58183D - BRACKET, FRONT SEAT MOUNTING, INSIDE LH | ||||
| 58184-90K02 |
HZJ73,77..ZX;HZJ71,74,76,79,LJ7#,PZJ7# |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-90K00 |
HZJ73,77,LJ7#..ATM |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-90K00 |
HZJ73,77,LJ7#..ATM |
1 | ||
| 58231A - BRACKET, CENTER FLOOR HEAT INSULATOR, NO.1 | ||||
| 58231-90A00 |
FJ75,HZJ7#,LJ7#,PZJ7# |
1 | ||
| 58262 - COVER, TRANSMISSION | ||||
| 58207-60040 |
HZJ73,77,LJ7#..ATM |
1 | ||
| 58263D - PACKING, TRANSMISSION COVER | ||||
| 58263-90K00 |
FJ75,HZJ7#,LJ7#,PZJ7# |
1 | ||
| 58291B - BOOT, TRANSFER SHIFT LEVER | ||||
| 58290-60030 |
HZJ73,77,LJ7#..ATM |
1 | ||
| 58754 - PLATE, ENGINE SERVICE COVER CATCH | ||||
| 58754-90K00 |
FJ75,HZJ7#,LJ7#,PZJ7# |
1 | ||
| 58994A - BRACKET, CONSOLE BOX MOUNTING, NO.4 | ||||
| 58994-60020 |
HZJ74,76..ATM;HZJ73,77,LJ7#..EX,EX5,SX5,ZX |
1 | ||
| Common parts | ||||
| 90044-63020 | ||||
| 90115-06115 | ||||
| 90115-06166 | ||||
| 90159-60439 | ||||
| 90179-06164 | ||||
| 90183-05047 | ||||
| 90189-06029 | ||||
| 90463-08063 | ||||
| 90561-09013 | ||||
| 90561-11004 | ||||
| 90950-01133 | ||||
| 90950-01184 | ||||
| 90950-01866 | ||||
| 90950-01882 | ||||
| 90950-01890 | ||||
| 90950-06010 | ||||
| 90989-01075 | ||||
| 91621-40616 | ||||
| 91635-40620 | ||||
| Linked diagrams | ||||
| 5751 | ||||
| 5852 | ||||
| 5855 | ||||

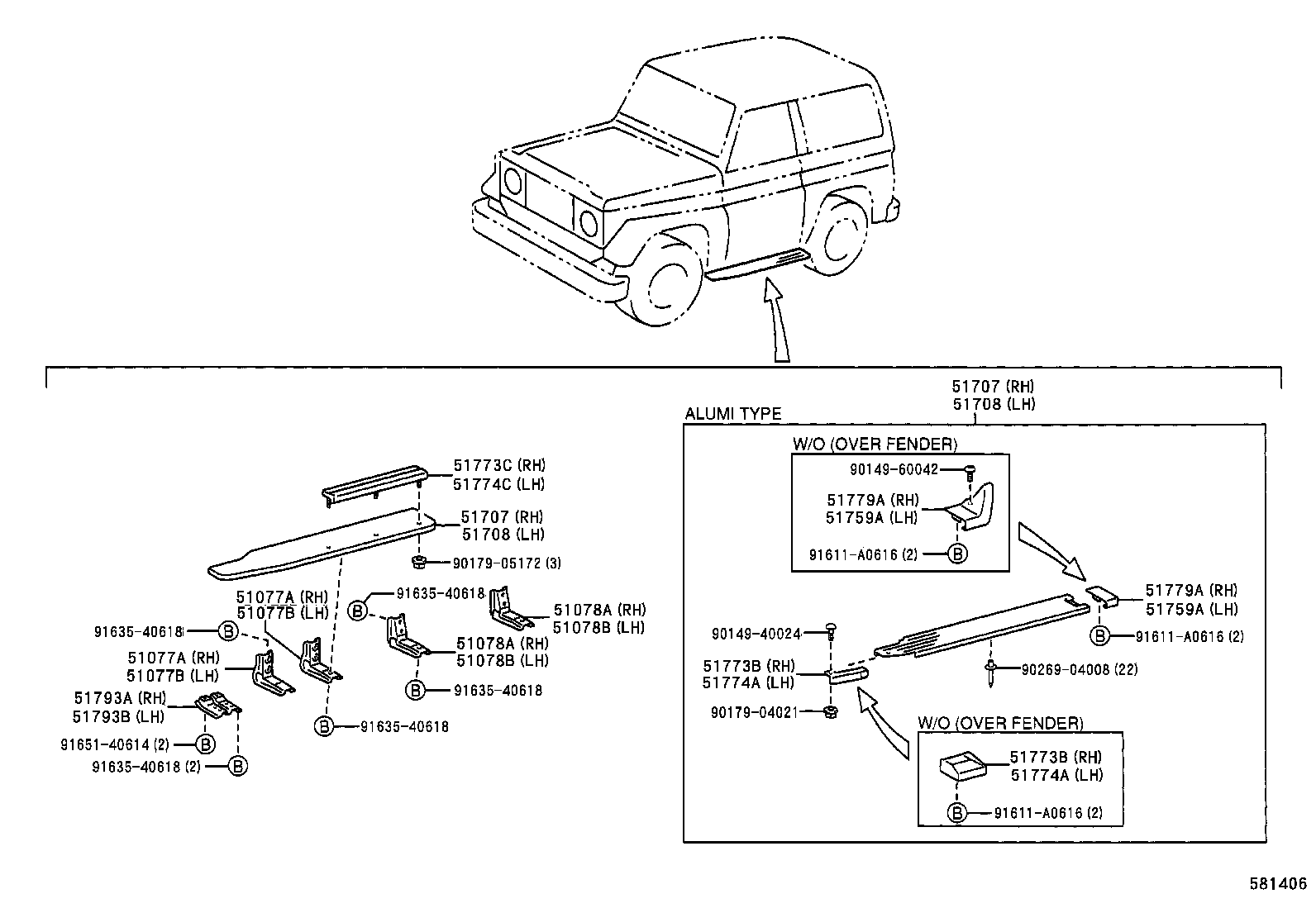

ILLUST NO. 2 OF 2(9001- )HZJ70,71,73,74,76,77,KZJ7#,LJ7#,PZJ7#; (9006-9208)FJ75 ; (9212- )HZJ
SIDE STEP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51077A - BRACKET SUB-ASSY, SIDE STEP, NO.2, RH | ||||
| 51077-90K00 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
2 | ||
| 51077A - BRACKET SUB-ASSY, SIDE STEP, NO.2, RH | ||||
| 51077-90K00 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
2 | ||
| 51077B - BRACKET SUB-ASSY, SIDE STEP, NO.2, LH | ||||
| 51077-90K00 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
2 | ||
| 51077B - BRACKET SUB-ASSY, SIDE STEP, NO.2, LH | ||||
| 51077-90K00 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
2 | ||
| 51078A - BRACKET SUB-ASSY, SIDE STEP, NO.3, RH | ||||
| 51078-90K00 |
HZJ73..ZX;HZJ71,74,LJ71,PZJ70 |
1 | ||
| 51078A - BRACKET SUB-ASSY, SIDE STEP, NO.3, RH | ||||
| 51078-90K00 |
HZJ73..ZX;HZJ71,74,LJ71,PZJ70 |
1 | ||
| 51078B - BRACKET SUB-ASSY, SIDE STEP, NO.3, LH | ||||
| 51078-90K00 |
HZJ73..ZX;HZJ71,74,LJ71,PZJ70 |
1 | ||
| 51078B - BRACKET SUB-ASSY, SIDE STEP, NO.3, LH | ||||
| 51078-90K00 |
HZJ73..ZX;HZJ71,74,LJ71,PZJ70 |
1 | ||
| 51707 - STEP SUB-ASSY, RH | ||||
| 51770-60020 |
HZJ71,LJ71,PZJ70..LX,LX5,SX5 |
1 | ||
| 51707 - STEP SUB-ASSY, RH | ||||
| 51770-60020 |
HZJ71,LJ71,PZJ70..LX,LX5,SX5 |
1 | ||
| 51708 - STEP SUB-ASSY, LH | ||||
| 51780-60040 |
HZJ71,LJ71,PZJ70..LX,LX5,SX5 |
1 | ||
| 51708 - STEP SUB-ASSY, LH | ||||
| 51780-60040 |
HZJ71,LJ71,PZJ70..LX,LX5,SX5 |
1 | ||
| 51759A - COVER, SIDE DOOR STEP PLATE, REAR LH | ||||
| 51759-60020 |
PZJ77;HZJ71,76,LJ7#,PZJ70..(EX5,LX,LX5,SX5)..(1NO,4NO,5NO) |
1 | ||
| 51759A - COVER, SIDE DOOR STEP PLATE, REAR LH | ||||
| 51759-60020 |
PZJ77;HZJ71,76,LJ7#,PZJ70..(EX5,LX,LX5,SX5)..(1NO,4NO,5NO) |
1 | ||
| 51773B - COVER, SIDE DOOR STEP PLATE, FRONT RH | ||||
| 51773-60030 |
PZJ70..LX;HZJ73..ZX..4NO;HZJ71,74,76,79,LJ7#,PZJ77..(EX5,LX,LX5,STD,SX5)..(1NO,4NO,5NO) |
1 | ||
| 51773B - COVER, SIDE DOOR STEP PLATE, FRONT RH | ||||
| 51773-60030 |
PZJ70..LX;HZJ73..ZX..4NO;HZJ71,74,76,79,LJ7#,PZJ77..(EX5,LX,LX5,STD,SX5)..(1NO,4NO,5NO) |
1 | ||
| 51774A - COVER, SIDE DOOR STEP PLATE, FRONT LH | ||||
| 51774-60030 |
PZJ70..LX;HZJ73..ZX..4NO;HZJ71,74,76,79,LJ7#,PZJ77..(EX5,LX,LX5,STD,SX5)..(1NO,4NO,5NO) |
1 | ||
| 51774A - COVER, SIDE DOOR STEP PLATE, FRONT LH | ||||
| 51774-60030 |
PZJ70..LX;HZJ73..ZX..4NO;HZJ71,74,76,79,LJ7#,PZJ77..(EX5,LX,LX5,STD,SX5)..(1NO,4NO,5NO) |
1 | ||
| 51779A - COVER, SIDE DOOR STEP PLATE, REAR RH | ||||
| 51779-60020 |
PZJ77;HZJ71,76,LJ7#,PZJ70..(EX5,LX,LX5,SX5)..(1NO,4NO,5NO) |
1 | ||
| 51779A - COVER, SIDE DOOR STEP PLATE, REAR RH | ||||
| 51779-60020 |
PZJ77;HZJ71,76,LJ7#,PZJ70..(EX5,LX,LX5,SX5)..(1NO,4NO,5NO) |
1 | ||
| 51793A - BRACKET, SIDE STEP, NO.1 RH | ||||
| 51793-60030 |
PZJ77;HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ70..EX,EX5,LX,LX5,SX5,ZX |
1 | ||
| 51793B - BRACKET, SIDE STEP, NO.1, LH | ||||
| 51793-60030 |
PZJ77;HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ70..EX,EX5,LX,LX5,SX5,ZX |
1 | ||
| Common parts | ||||
| 90149-40024 | ||||
| 90149-60042 | ||||
| 90179-04021 | ||||
| 90179-05172 | ||||
| 90269-04008 | ||||
| 91611-A0616 | ||||
| 91635-40618 | ||||
| 91651-40614 | ||||
