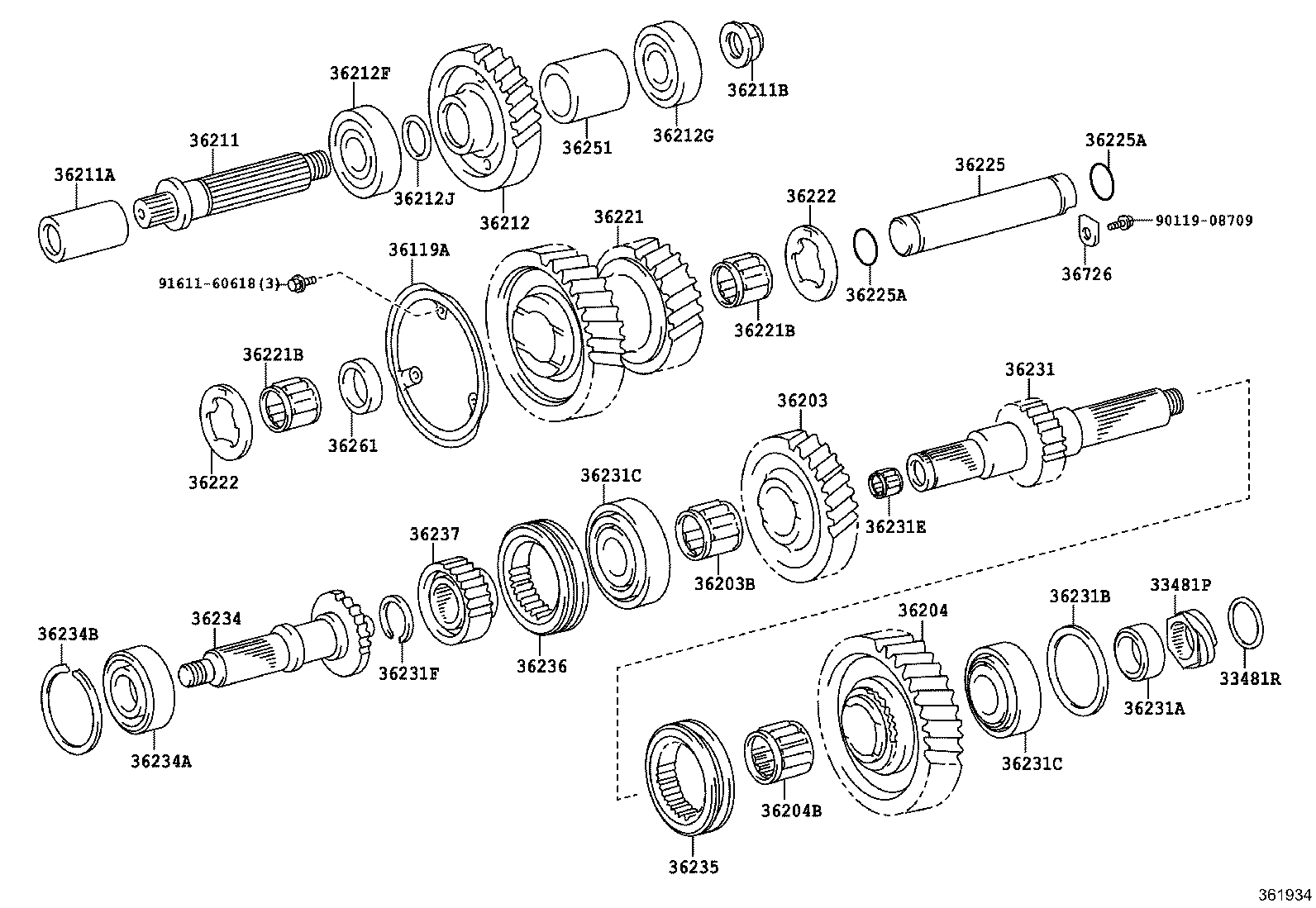

LJ71G-PET (1990)
Toyota Land Cruiser S/T,H/T
(9001-9401)PZJ7# ; (9004-9305)LJ7# ; (9305-9604)KZJ7#..MTM ; (9908-0308)MTM ; (0308
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER) | ||||
| 33481-60051 |
HZJ71,LJ7#;HZJ74,76..MTM..LX 歯数=6,ﾏｰｸ 6:18−20 |
1 | ||
| 33481R - WASHER, PLATE (FOR SPEEDOMETER DRIVE GEAR) | ||||
| 90201-35002 |
FJ75,HZJ71,74,75,76,PZJ7#..MTM;HZJ73,77,LJ7#..EX,EX5,LX5,SX5,ZX |
1 | ||
| 36119A - RECEIVER, TRANSFER OIL (FOR TRANSFER IDLER GEAR) | ||||
| 36119-60020 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 36203 - GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT | ||||
| 36241-60080 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM |
1 | ||
| 36204 - GEAR SUB-ASSY, TRANSFER LOW SPEED OUTPUT | ||||
| 36242-60130 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM |
1 | ||
| 36211 - SHAFT, TRANSFER INPUT | ||||
| 36211-60021 |
LJ7#;HZJ71,74,76,PZJ7#..MTM |
1 | ||
| 36211A - YOKE, TRANSMISSION SLEEVE | ||||
| 33399-60030 |
LJ7#..ATM |
1 | ||
| 36211B - NUT (FOR TRANSFER INPUT SHAFT) | ||||
| 90179-26004 |
HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7# |
1 | ||
| 36212 - GEAR, TRANSFER INPUT | ||||
| 36212-60081 |
LJ7#;FJ75,HZJ7#,PZJ7#..MTM |
1 | ||
| 36212-60081 |
LJ7#;HZJ71,74,76,79,PZJ7#..MTM |
1 | ||
| 36212F - BEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT FRONT) | ||||
| 90363-35022 |
LJ7#..ATM |
1 | ||
| 36212G - BEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT REAR) | ||||
| 90363-35013 |
HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7# |
1 | ||
| 36212J - RING, O (FOR TRANSFER INPUT GEAR) | ||||
| 90301-34005 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 36221 - GEAR, TRANSFER IDLER | ||||
| 36221-60090 |
HZJ73,77..ATM..ZX;HZJ71,74,76,79,LJ7# |
1 | ||
| 36221B - BEARING (FOR TRANSFER IDLER GEAR) | ||||
| 90364-38012 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
2 | ||
| 36221B - BEARING (FOR TRANSFER IDLER GEAR) | ||||
| 90364-38012 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
2 | ||
| 36222 - WASHER, TRANSFER IDLER GEAR SIDE THRUST | ||||
| 36222-60020 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
2 | ||
| 36222 - WASHER, TRANSFER IDLER GEAR SIDE THRUST | ||||
| 36222-60020 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
2 | ||
| 36225 - SHAFT, TRANSFER IDLER GEAR | ||||
| 36225-60050 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 36225A - RING, O (FOR TRANSFER IDLER SHAFT) | ||||
| 90301-34004 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
2 | ||
| 36225A - RING, O (FOR TRANSFER IDLER SHAFT) | ||||
| 90301-34004 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
2 | ||
| 36231 - SHAFT, TRANSFER OUTPUT, REAR | ||||
| 36231-60050 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM |
1 | ||
| 36231A - SPACER (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90560-72001 |
LJ7#..ATM 厚さ=2.3 |
1 | ||
| 90560-35008 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=17.5 |
1 | ||
| 90560-72003 |
LJ7#..ATM 厚さ=2.5 |
1 | ||
| 90560-72002 |
LJ7#..ATM 厚さ=2.4 |
1 | ||
| 36231B - SHIM (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90564-70002 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=0.40 |
1 | ||
| 90564-70004 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=0.60 |
1 | ||
| 90564-70003 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=0.50 |
1 | ||
| 90564-70006 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=0.80 |
1 | ||
| 90564-70005 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=0.70 |
1 | ||
| 90564-70009 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=1.10 |
1 | ||
| 90564-70010 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=1.20 |
1 | ||
| 90564-70001 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=0.15 |
1 | ||
| 90564-70012 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=1.40 |
1 | ||
| 90564-70008 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=1.00 |
1 | ||
| 90564-70013 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=1.50 |
1 | ||
| 90564-70011 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=1.30 |
1 | ||
| 90564-70007 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=0.90 |
1 | ||
| 36231C - BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90366-35054 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM ﾘﾔ |
1 | ||
| 90366-35011 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# ﾌﾛﾝﾄ |
1 | ||
| 36231C - BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90366-35054 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM ﾘﾔ |
1 | ||
| 90366-35011 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# ﾌﾛﾝﾄ |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-17010 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90520-33107 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=2.30−2.35,ﾏｰｸ 11 |
1 | ||
| 90520-33110 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=2.6−2.65,ﾏｰｸ 17 |
1 | ||
| 36234 - SHAFT, TRANSFER OUTPUT, FRONT | ||||
| 36234-60031 |
HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7# |
1 | ||
| 36234A - BEARING (FOR TRANSFER OUTPUT FRONT SHAFT) | ||||
| 90363-35013 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 36234B - RING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING) | ||||
| 90521-75023 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=1.6 |
1 | ||
| 36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH | ||||
| 36235-60030 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM |
1 | ||
| 36236 - SLEEVE, FRONT DRIVE CLUTCH | ||||
| 36236-60030 |
HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7# |
1 | ||
| 36237 - HUB, TRANSFER CLUTCH | ||||
| 36237-60020 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 36251 - SPACER, TRANSFER INPUT SHAFT | ||||
| 36251-60050 |
PZJ77..4NO;HZJ73,77..ZX;PZJ77..STD..1NO;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ70 |
1 | ||
| 36251 - SPACER, TRANSFER INPUT SHAFT | ||||
| 36251-60050 |
PZJ77..4NO;HZJ73,77..ZX;PZJ77..STD..1NO;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ70 |
1 | ||
| 36261 - SPACER, TRANSFER IDLER GEAR | ||||
| 90560-38003 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 36726 - PLATE, LOCK (FOR TRANSFER GEAR) | ||||
| 36726-60020 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| Common parts | ||||
| 90119-08709 | ||||
| 91611-60618 | ||||
(9004-9305)LJ7#..ATM ; (9305-9604)KZJ7#..ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER) | ||||
| 33481-60051 |
HZJ71,LJ7#;HZJ74,76..MTM..LX 歯数=6,ﾏｰｸ 6:18−20 |
1 | ||
| 33481R - WASHER, PLATE (FOR SPEEDOMETER DRIVE GEAR) | ||||
| 90201-35002 |
FJ75,HZJ71,74,75,76,PZJ7#..MTM;HZJ73,77,LJ7#..EX,EX5,LX5,SX5,ZX |
1 | ||
| 36119A - RECEIVER, TRANSFER OIL (FOR TRANSFER IDLER GEAR) | ||||
| 36119-60020 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 36203 - GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT | ||||
| 36241-60080 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM |
1 | ||
| 36203B - BEARING (FOR TRANSFER HIGH SPEED OUTPUT GEAR) | ||||
| 90364-40001 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM |
1 | ||
| 36204 - GEAR SUB-ASSY, TRANSFER LOW SPEED OUTPUT | ||||
| 36242-60130 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM |
1 | ||
| 36204B - BEARING (FOR TRANSFER LOW SPEED OUTPUT GEAR) | ||||
| 90364-40001 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM |
1 | ||
| 36211 - SHAFT, TRANSFER INPUT | ||||
| 36211-60021 |
LJ7#;HZJ71,74,76,PZJ7#..MTM |
1 | ||
| 36211A - YOKE, TRANSMISSION SLEEVE | ||||
| 33399-60030 |
LJ7#..ATM |
1 | ||
| 36211B - NUT (FOR TRANSFER INPUT SHAFT) | ||||
| 90179-26004 |
HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7# |
1 | ||
| 36212 - GEAR, TRANSFER INPUT | ||||
| 36212-60081 |
LJ7#;FJ75,HZJ7#,PZJ7#..MTM |
1 | ||
| 36212-60081 |
LJ7#;HZJ71,74,76,79,PZJ7#..MTM |
1 | ||
| 36212F - BEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT FRONT) | ||||
| 90363-35022 |
LJ7#..ATM |
1 | ||
| 36212G - BEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT REAR) | ||||
| 90363-35013 |
HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7# |
1 | ||
| 36212J - RING, O (FOR TRANSFER INPUT GEAR) | ||||
| 90301-34005 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 36221 - GEAR, TRANSFER IDLER | ||||
| 36221-60090 |
HZJ73,77..ATM..ZX;HZJ71,74,76,79,LJ7# |
1 | ||
| 36221B - BEARING (FOR TRANSFER IDLER GEAR) | ||||
| 90364-38012 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
2 | ||
| 36221B - BEARING (FOR TRANSFER IDLER GEAR) | ||||
| 90364-38012 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
2 | ||
| 36222 - WASHER, TRANSFER IDLER GEAR SIDE THRUST | ||||
| 36222-60020 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
2 | ||
| 36222 - WASHER, TRANSFER IDLER GEAR SIDE THRUST | ||||
| 36222-60020 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
2 | ||
| 36225 - SHAFT, TRANSFER IDLER GEAR | ||||
| 36225-60050 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 36225A - RING, O (FOR TRANSFER IDLER SHAFT) | ||||
| 90301-34004 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
2 | ||
| 36225A - RING, O (FOR TRANSFER IDLER SHAFT) | ||||
| 90301-34004 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
2 | ||
| 36231 - SHAFT, TRANSFER OUTPUT, REAR | ||||
| 36231-60050 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM |
1 | ||
| 36231A - SPACER (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90560-72001 |
LJ7#..ATM 厚さ=2.3 |
1 | ||
| 90560-35008 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=17.5 |
1 | ||
| 90560-72003 |
LJ7#..ATM 厚さ=2.5 |
1 | ||
| 90560-72002 |
LJ7#..ATM 厚さ=2.4 |
1 | ||
| 36231B - SHIM (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90564-70002 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=0.40 |
1 | ||
| 90564-70004 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=0.60 |
1 | ||
| 90564-70003 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=0.50 |
1 | ||
| 90564-70006 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=0.80 |
1 | ||
| 90564-70005 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=0.70 |
1 | ||
| 90564-70009 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=1.10 |
1 | ||
| 90564-70010 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=1.20 |
1 | ||
| 90564-70001 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=0.15 |
1 | ||
| 90564-70012 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=1.40 |
1 | ||
| 90564-70008 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=1.00 |
1 | ||
| 90564-70013 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=1.50 |
1 | ||
| 90564-70011 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=1.30 |
1 | ||
| 90564-70007 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=0.90 |
1 | ||
| 36231C - BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90366-35054 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM ﾘﾔ |
1 | ||
| 90366-35011 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# ﾌﾛﾝﾄ |
1 | ||
| 36231C - BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90366-35054 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM ﾘﾔ |
1 | ||
| 90366-35011 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# ﾌﾛﾝﾄ |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-17010 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90520-33107 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=2.30−2.35,ﾏｰｸ 11 |
1 | ||
| 90520-33110 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=2.6−2.65,ﾏｰｸ 17 |
1 | ||
| 36234 - SHAFT, TRANSFER OUTPUT, FRONT | ||||
| 36234-60031 |
HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7# |
1 | ||
| 36234A - BEARING (FOR TRANSFER OUTPUT FRONT SHAFT) | ||||
| 90363-35013 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 36234B - RING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING) | ||||
| 90521-75023 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# 厚さ=1.6 |
1 | ||
| 36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH | ||||
| 36235-60030 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM |
1 | ||
| 36236 - SLEEVE, FRONT DRIVE CLUTCH | ||||
| 36236-60030 |
HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7# |
1 | ||
| 36237 - HUB, TRANSFER CLUTCH | ||||
| 36237-60020 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 36251 - SPACER, TRANSFER INPUT SHAFT | ||||
| 36251-60050 |
PZJ77..4NO;HZJ73,77..ZX;PZJ77..STD..1NO;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ70 |
1 | ||
| 36261 - SPACER, TRANSFER IDLER GEAR | ||||
| 90560-38003 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 36726 - PLATE, LOCK (FOR TRANSFER GEAR) | ||||
| 36726-60020 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| Common parts | ||||
| 90119-08709 | ||||
| 91611-60618 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
