LJ71G-MNX (1985)

Toyota Land Cruiser S/T,H/T

Production Oct 1985 - Jan 1990
Engine 2LT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )2LT

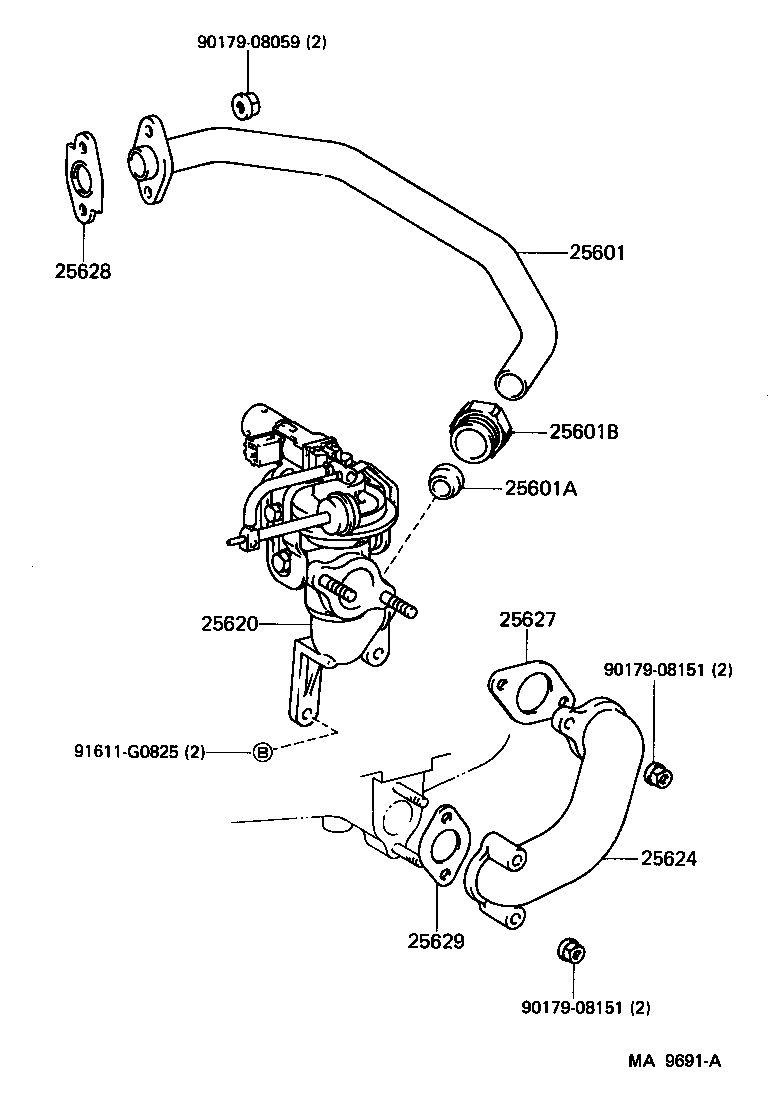

Click highlighted areas on diagram

diagram 25601 25601A 25601B 25620 25624 25627 25628 25629 9017908059 9017908151 9017908151 91611G0825
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-54050

2LT..LJ71

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-25001

2LT..LJ71

 1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-33001

2LT..LJ71

 1
25620 - VALVE ASSY, EGR
25800-54050

2LT..LJ71

 1
25624 - ADAPTER, EGR VALVE
25624-54030

2LT..LJ71

 1
25627 - GASKET, EGR VALVE
25627-54010

2LT..LJ71

 1
25628 - GASKET, EGR INLET
25628-54012

2LT..LJ71

 1
25628-54011

2LT..LJ71

 1
25629 - GASKET, EGR VALVE ADAPTER
25629-54010

2LT..LJ71

 1
Common parts
90179-08059
90179-08151
91611-G0825
