LJ71G-MNT (1990)

Toyota Land Cruiser S/T,H/T

Production Apr 1990 - May 1993
Engine 2LTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

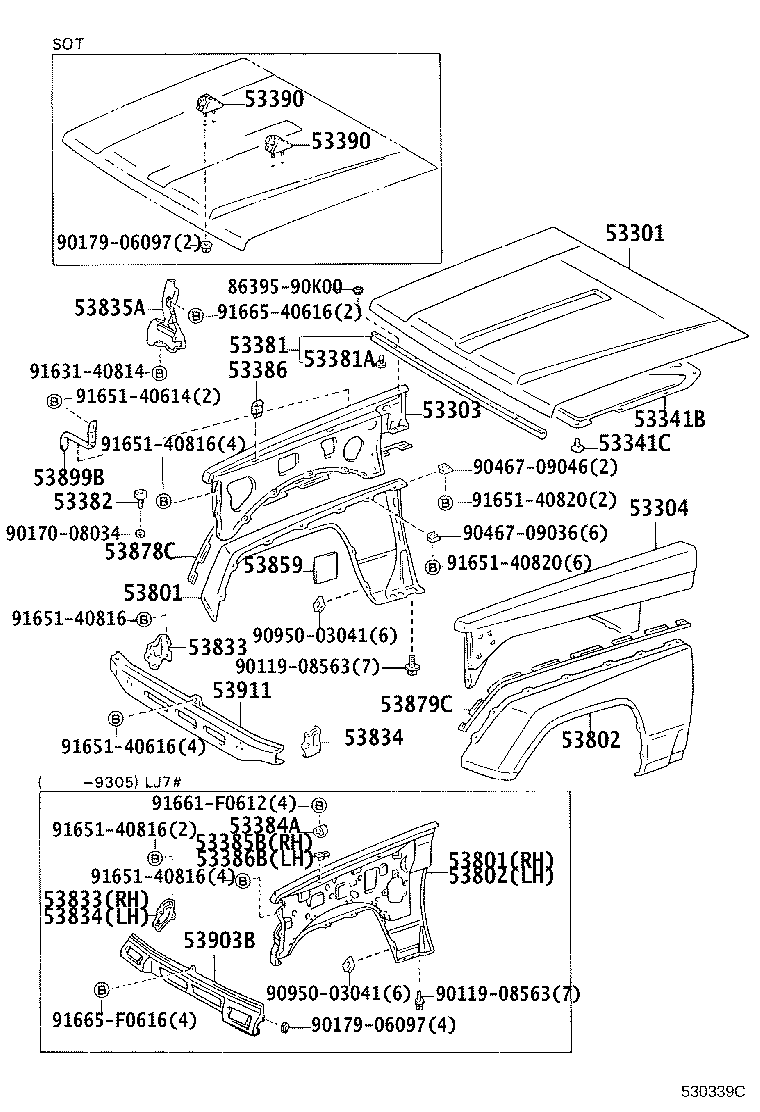

ILLUST NO. 1 OF 2(9001-9305) ; (9305- )HZJ7#,PZJ7#

Click highlighted areas on diagram

diagram 53301 53303 53304 53341B 53341C 53381 53381A 53382 53384A 53385B 53386 53386B 53390 53390 53801 53801 53802 53802 53833 53833 53834 53834 53835A 53859 53878C 53879C 53899B 53903B 53911 8639590K00 9011908563 9011908563 9017008034 9017906097 9017906097 9046709036 9046709046 9095003041 9095003041 9163140814 9165140614 9165140616 9165140816 9165140816 9165140816 9165140816 9165140820 9165140820 91661F0612 9166540616 91665F0616
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-60130

LJ7#

 1
53341B - INSULATOR, HOOD
53341-60050

LJ7#

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09014

LJ7#

 15
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-60020

LJ7#

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

LJ7#

 8
53382 - BUMPER, HOOD, FRONT
53382-60010

LJ7#

 2
53382-60010

FJ75,HZJ7#,LJ7#,PZJ7#

 2
53382-60011

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#

 2
53384A - BUMPER, FENDER TO HOOD
53384-60020

LJ7#

 4
53385B - BRACKET, FENDER TO HOOD BUMPER, RH
53385-20020

LJ7#

 2
53386B - BRACKET, FENDER TO HOOD BUMPER, LH
53386-20020

LJ7#

 2
53801 - FENDER SUB-ASSY, FRONT RH
53801-60380

LJ71;LJ78..LX5

 1
53801-60420

LJ71;LJ78..LX5

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-60380

LJ71;LJ78..LX5

 1
53801-60420

LJ71;LJ78..LX5

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-60360

LJ71;LJ78..LX5

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53802-60670

LJ71;LJ78..LX5

 1
53802-60280

LJ71;LJ78..LX5

 1
53802-60700

LJ71;LJ78..LX5

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-60360

LJ71;LJ78..LX5

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53802-60670

LJ71;LJ78..LX5

 1
53802-60280

LJ71;LJ78..LX5

 1
53802-60700

LJ71;LJ78..LX5

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53833 - PANEL, FRONT FENDER SIDE, LOWER
53833-60020

LJ7#

 1
53833 - PANEL, FRONT FENDER SIDE, LOWER
53833-60020

LJ7#

 1
53834 - PANEL, FRONT FENDER SIDE, LOWER LH
53834-60020

LJ7#

 1
53834 - PANEL, FRONT FENDER SIDE, LOWER LH
53834-60020

LJ7#

 1
53859 - PROTECTOR, FRONT FENDER
53859-60010

LJ7#

 1
53899B - SUPPORT, FRONT FENDER PANEL
53899-60010

LJ7#

 1
53903B - PANEL SUB-ASSY, FRONT END
53903-60020

LJ7#

 1
Common parts
86395-90K00
90119-08563
90170-08034
90179-06097
90467-09036
90467-09046
90950-03041
91631-40814
91651-40614
91651-40616
91651-40816
91651-40820
91661-F0612
91665-40616
91665-F0616
