LJ71G-MNT (1990)

Toyota Land Cruiser S/T,H/T

Production Apr 1990 - May 1993
Engine 2LTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9004-9305)2LTE

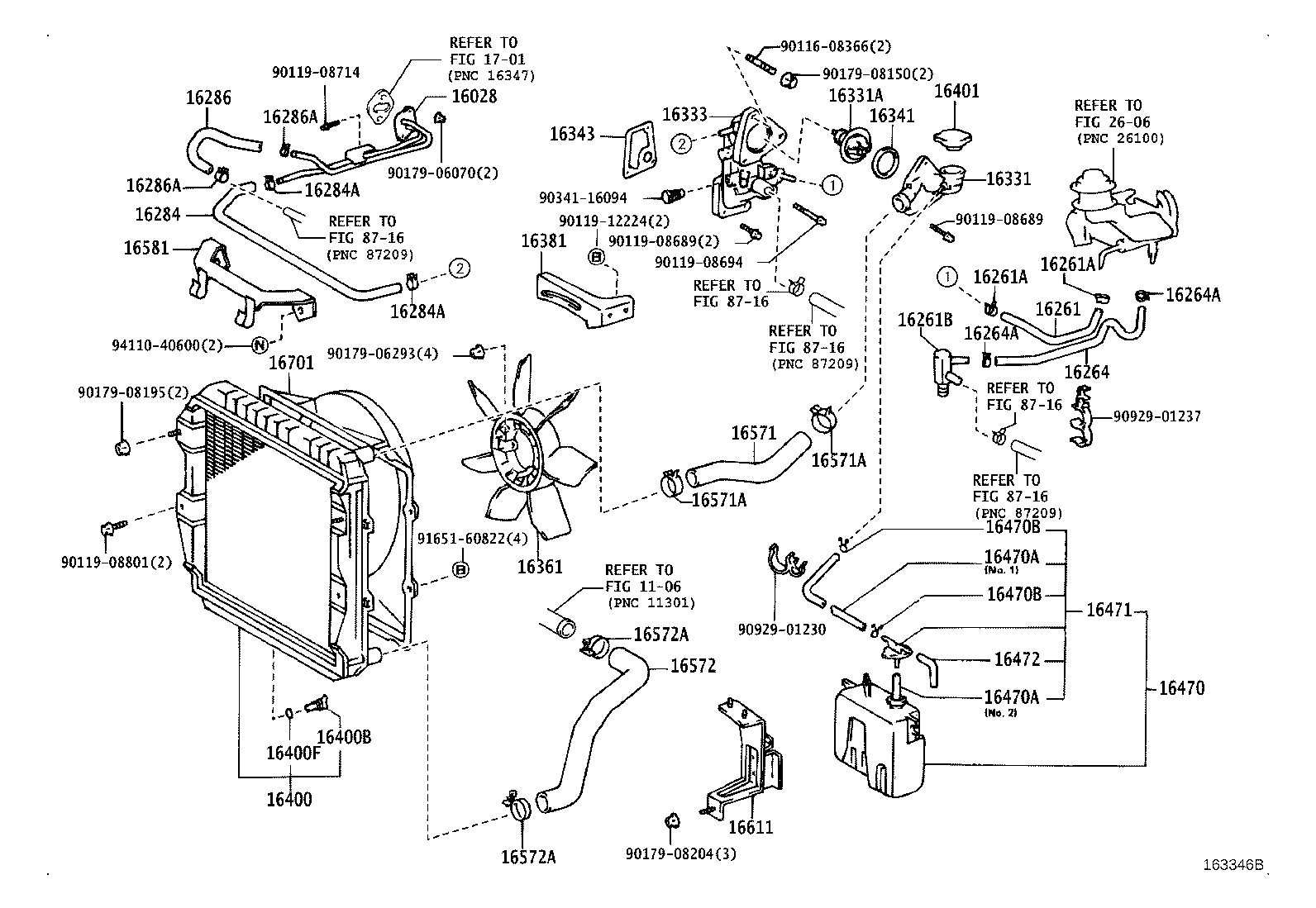

Click highlighted areas on diagram

diagram 1106 16028 16261 16261A 16261A 16261B 16264 16264A 16264A 16284 16284A 16284A 16286 16286A 16286A 16331 16331A 16333 16341 16343 16361 16381 16400 16400B 16400F 16401 16470 16470A 16470A 16470B 16470B 16471 16472 16571 16571A 16571A 16572 16572A 16572A 16581 16611 16701 1701 2606 8716 8716 8716 8716 8716 9011608366 9011908689 9011908689 9011908694 9011908714 9011908801 9011912224 9017906070 9017906293 9017908150 9017908195 9017908204 9034116094 9092901230 9092901237 9165160822 9411040600
Part # Description Qty Price
16028 - PIPE SUB-ASSY, TURBO WATER, NO.2
16028-54020

2LTE..LJ7#

 1
16261 - HOSE, WATER BY-PASS
16261-54110

2LTE..LJ7#

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-15022

2LTE..LJ7#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-15022

2LTE..LJ7#

 2
16261B - UNION(FOR WATER BY-PASS HOSE)
90404-54037

2LTE..LJ7#

 1
90404-54040

2LTE..LJ7#

 1
16264 - HOSE, WATER BY-PASS, NO.2
16264-54130

2LTE..LJ7#

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-15022

2LTE..LJ7#

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-15022

2LTE..LJ7#

 2
16284 - HOSE, TURBO WATER, NO.1
16284-54020

2LTE..LJ7#

 1
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90467-15022

2LTE..LJ7#

 2
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90467-15022

2LTE..LJ7#

 2
16286 - HOSE, TURBO WATER, NO.3
16286-54020

2LTE..LJ7#

 1
16286A - CLIP(FOR TURBO WATER HOSE NO.3)
90467-15022

2LTE..LJ7#

 2
16286A - CLIP(FOR TURBO WATER HOSE NO.3)
90467-15022

2LTE..LJ7#

 2
16331 - OUTLET, WATER
16331-54101

2LTE..LJ7#

 1
16331-54100

2LTE..LJ7#

 1
16331A - THERMOSTAT
90916-03072

2LTE..LJ7#

*WAX 88−100

 1
90916-03099

2LTE..LJ7#

*WAX 88−100

 1
16333 - HOUSING, WATER OUTLET
16333-54170

2LTE..LJ7#

 1
16333-54132

2LTE..LJ7#

 1
16341 - GASKET, WATER OUTLET
16341-35010

2LTE..LJ7#

 1
16343 - GASKET, WATER OUTLET HOUSING
16343-54030

2LTE..LJ7#

 1
16343-54040

2LTE..LJ7#

 1
16361 - FAN
16361-54050

2LTE..LJ7#

 1
16381 - BAR, FAN BELT ADJUSTING
16381-54120

2LTE..LJ7#

 1
16400 - RADIATOR ASSY
16400-54840

2LTE..LJ7#..MTM

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-24200

2LTE..LJ7#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-24200

2LTE..LJ7#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-71010

2LTE..LJ7#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-54220

2LTE..LJ7#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

2LTE..LJ7#

*H,L=560,NO.1

 1
90445-12078

2LTE..LJ7#

*H,L=180,NO.2

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

2LTE..LJ7#

*H,L=560,NO.1

 1
90445-12078

2LTE..LJ7#

*H,L=180,NO.2

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2LTE..LJ7#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2LTE..LJ7#

 2
16471 - CAP SUB-ASSY, RESERVE TANK
16405-54210

2LTE..LJ7#

 1
16472 - HOSE, BREATHER
85338-74040

2LTE..LJ7#

 1
16571 - HOSE, RADIATOR, INLET
16571-54300

2LTE..LJ7#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37003

2LTE..LJ7#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37003

2LTE..LJ7#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-54350

2LTE..LJ7#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10440

2LTE..LJ7#

ﾗｼﾞｴｰﾀ側

 1
96111-10500

2LTE..LJ7#

ｴﾝｼﾞﾝ側

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10440

2LTE..LJ7#

ﾗｼﾞｴｰﾀ側

 1
96111-10500

2LTE..LJ7#

ｴﾝｼﾞﾝ側

 1
16581 - CLAMP, HOSE(FOR WATER HOSE)
16581-54020

2LTE..LJ7#

 1
16611 - BRACKET, RADIATOR RESERVE TANK
16611-54110

2LTE..LJ7#

 1
16701 - SHROUD SUB-ASSY, FAN
16711-54380

2LTE..LJ7#

 1
Common parts
90116-08366
90119-08689
90119-08694
90119-08714
90119-08801
90119-12224
90179-06070
90179-06293
90179-08150
90179-08195
90179-08204
90341-16094
90929-01230
90929-01237
91651-60822
94110-40600
