LJ71G-MEX (1985)
Toyota Land Cruiser S/T,H/T
ILLUST NO. 1 OF 2(8510- )LJ71
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-25060 |
LJ71 |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08233 |
LJ71 ﾈｼﾞ部長さ=14 & 14,長さ=42,L=42,S=14 & 14 |
2 | ||
| 90116-08238 |
LJ71 ﾈｼﾞ部長さ=22 & 12,長さ=36,L=36,S=12 & 17 |
8 | ||
| 90116-08226 |
LJ71 ﾈｼﾞ部長さ=14 & 14,長さ=42,L=42,S=14 & 14 |
2 | ||
| 41991 - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| 41991-60010 |
BJ7#,LJ71 W/LSD |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-60271 |
LJ71 |
1 | ||
| 42110-60272 |
LJ71 |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
BJ7#,LJ71 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
BJ7#,LJ71 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
BJ7#,LJ71 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
BJ7#,LJ71 |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-60020 |
LJ71 |
1 | ||
| 42306A - UNION (FOR REAR AXLE BREATHER HOUSE) | ||||
| 90404-51052 |
LJ71 |
1 | ||
| 42306B - HOSE (FOR REAR AXLE BREATHER) | ||||
| 95332-06040 |
LJ71 L=400 |
1 | ||
| 95333-06040 |
LJ71 L=400 |
1 | ||
| 42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE) | ||||
| 96132-30600 |
BJ7#,LJ71 |
1 | ||
| 42306D - CLAMP (FOR REAR AXLE BRATHER HOSE) | ||||
| 90461-10387 |
BJ7#,LJ71 |
1 | ||
| 42306F - PLUG, BREATHER (FOR REAR AXLE) | ||||
| 90930-03097 |
BJ7#,LJ71 |
1 | ||
| Common parts | ||||
| 90170-08204 | ||||
| 91611-60818 | ||||
| 91616-60820 | ||||
| 94512-00800 | ||||

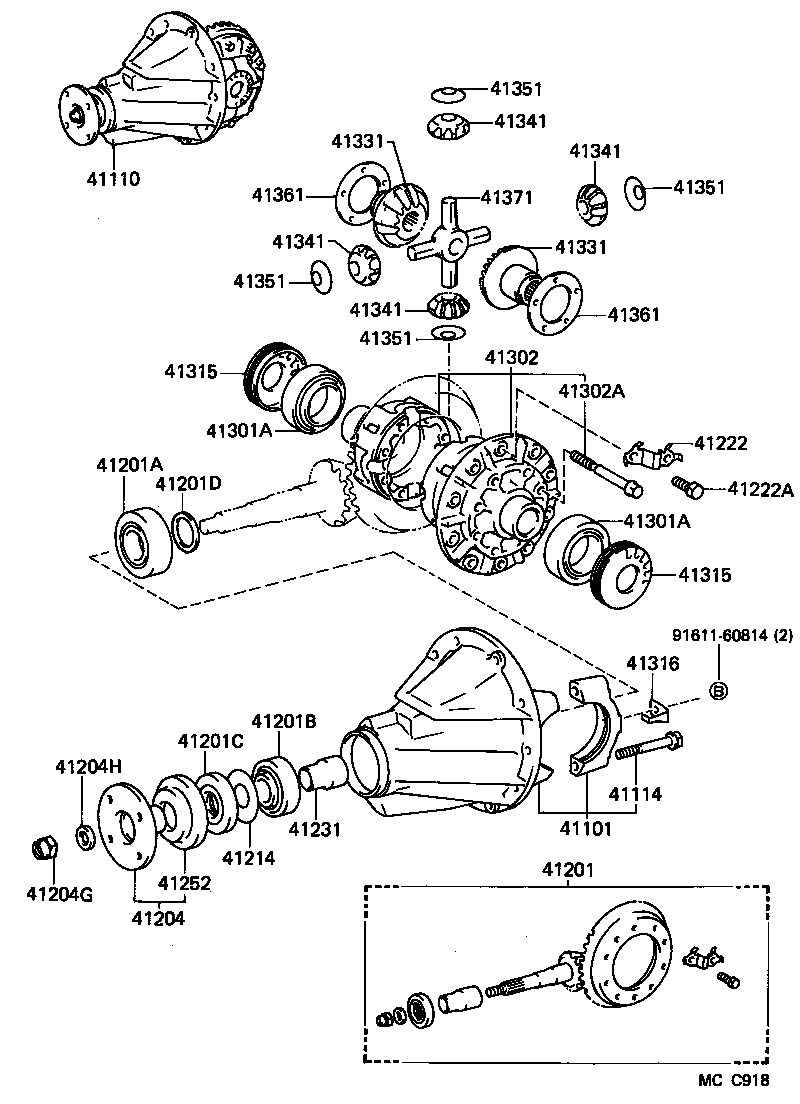

ILLUST NO. 2 OF 2(8510- )LJ71
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-60061 |
LJ71 |
1 | ||
| 41101-60060 |
LJ71 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-60190 |
LJ71 *FGR=39:8=4.875,*AXC=G145,*FGR=39:8 |
1 | ||
| 41110-60170 |
LJ71 *FGR=39:8=4.875,*AXC=G144,*FGR=39:8 |
1 | ||
| 41110-60171 |
LJ71 *FGR=39:8=4.875,*AXC=G144,*FGR=39:8 |
1 | ||
| 41110-60191 |
LJ71 *FGR=39:8=4.875,*AXC=G145,*FGR=39:8 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
BJ7#,LJ71 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-39705 |
LJ71 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35028 |
LJ71 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30025 |
LJ71 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38133 |
LJ71 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35499 |
LJ71 外径=47,厚さ=1.76,T=1.76 |
1 | ||
| 90201-35497 |
LJ71 外径=47,厚さ=1.70,T=1.70 |
1 | ||
| 90201-35502 |
LJ71 外径=47,厚さ=1.85,T=1.85 |
1 | ||
| 90201-35504 |
LJ71 外径=47,厚さ=1.91,T=1.91 |
1 | ||
| 90201-35500 |
LJ71 外径=47,厚さ=1.79,T=1.79 |
1 | ||
| 90201-35505 |
LJ71 外径=47,厚さ=1.94,T=1.94 |
1 | ||
| 90201-35501 |
LJ71 外径=47,厚さ=1.82,T=1.82 |
1 | ||
| 90201-35508 |
LJ71 外径=47,厚さ=2.03,T=2.03 |
1 | ||
| 90201-35512 |
LJ71 外径=47,厚さ=2.15,T=2.15 |
1 | ||
| 90201-35506 |
LJ71 外径=47,厚さ=1.97,T=1.97 |
1 | ||
| 90201-35503 |
LJ71 外径=47,厚さ=1.88,T=1.88 |
1 | ||
| 90201-35510 |
LJ71 外径=47,厚さ=2.09,T=2.09 |
1 | ||
| 90201-35507 |
LJ71 外径=47,厚さ=2.00,T=2.00 |
1 | ||
| 90201-35516 |
LJ71 外径=47,厚さ=2.27,ﾏｰｸ 02,T=2.27 |
1 | ||
| 90201-35509 |
LJ71 外径=47,厚さ=2.06,T=2.06 |
1 | ||
| 90201-35498 |
LJ71 外径=47,厚さ=1.73,T=1.73 |
1 | ||
| 90201-35515 |
LJ71 外径=47,厚さ=2.24,ﾏｰｸ 01,T=2.24 |
1 | ||
| 90201-35518 |
LJ71 外径=47,厚さ=2.33,ﾏｰｸ 04,T=2.33 |
1 | ||
| 90201-35511 |
LJ71 外径=47,厚さ=2.12,T=2.12 |
1 | ||
| 90201-35517 |
LJ71 外径=47,厚さ=2.30,ﾏｰｸ 03,T=2.30 |
1 | ||
| 90201-35514 |
LJ71 外径=47,厚さ=2.21,T=2.21 |
1 | ||
| 90201-35513 |
LJ71 外径=47,厚さ=2.18,T=2.18 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35040 |
LJ71 |
1 | ||
| 41204G - NUT (FOR DRIVE PINION COMPANION FLANGE REAR) | ||||
| 90179-20001 |
LJ71 |
1 | ||
| 41204H - WASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE REAR) | ||||
| 90201-20005 |
LJ71 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26010 |
BJ7#,LJ71 |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35020 |
LJ71 |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
LJ71 |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
LJ71 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-35010 |
BJ7#,LJ71 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
LJ71 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
LJ71 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41302-35020 |
LJ71 |
1 | ||
| 41302-35010 |
LJ71 W/LSD |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-10084 |
LJ71 |
8 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
LJ71 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
LJ71 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-35010 |
LJ71 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35040 |
LJ71 |
2 | ||
| 41331-35030 |
LJ71 W/LSD |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35040 |
LJ71 |
2 | ||
| 41331-35030 |
LJ71 W/LSD |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35010 |
LJ71 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35010 |
LJ71 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35010 |
LJ71 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35010 |
LJ71 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
LJ71 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
LJ71 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
LJ71 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
LJ71 |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-24010 |
LJ71 厚さ=0.90,T=0.9 |
2 | ||
| 41361-24030 |
LJ71 厚さ=1.10,T=1.1 |
2 | ||
| 41361-24050 |
LJ71 厚さ=1.30,T=1.3 |
2 | ||
| 41361-24040 |
LJ71 厚さ=1.20,T=1.2 |
2 | ||
| 41361-24020 |
LJ71 厚さ=1.00,T=1.0 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-24010 |
LJ71 厚さ=0.90,T=0.9 |
2 | ||
| 41361-24030 |
LJ71 厚さ=1.10,T=1.1 |
2 | ||
| 41361-24050 |
LJ71 厚さ=1.30,T=1.3 |
2 | ||
| 41361-24040 |
LJ71 厚さ=1.20,T=1.2 |
2 | ||
| 41361-24020 |
LJ71 厚さ=1.00,T=1.0 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-35020 |
LJ71 |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||

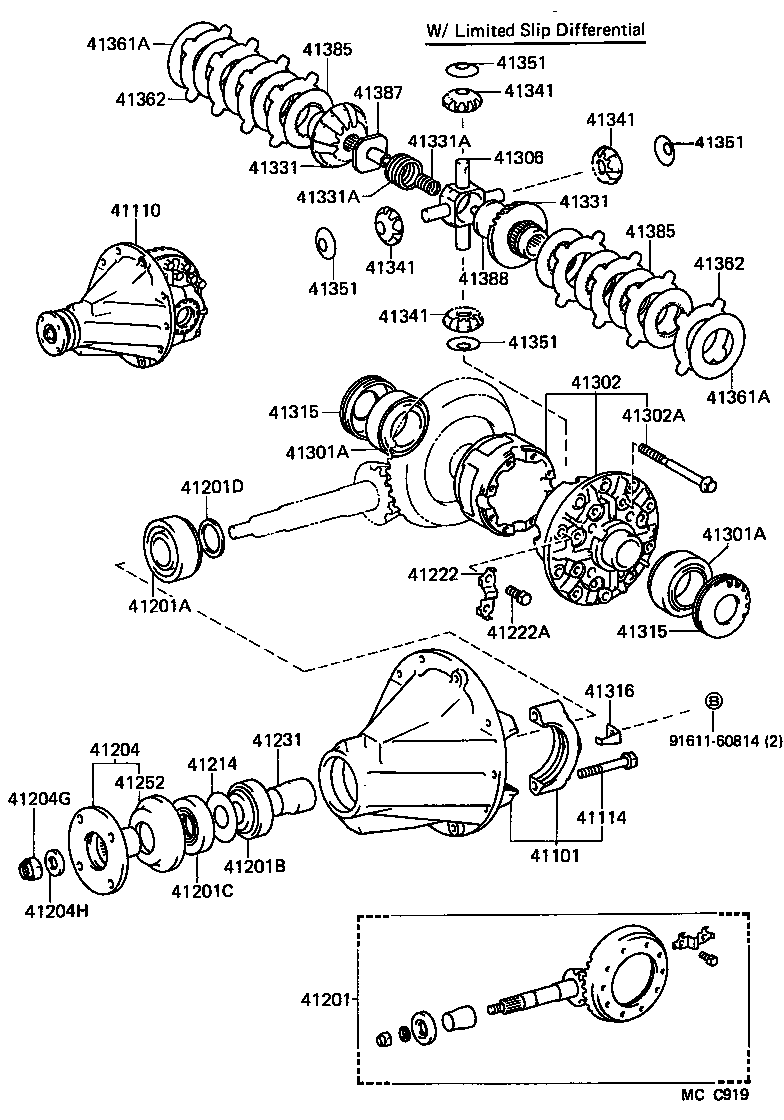

ILLUST NO. 2 OF 2(8510- )LJ71
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-60061 |
LJ71 |
1 | ||
| 41101-60060 |
LJ71 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-60191 |
LJ71 *FGR=39:8=4.875,*AXC=G145,*FGR=39:8 |
1 | ||
| 41110-60190 |
LJ71 *FGR=39:8=4.875,*AXC=G145,*FGR=39:8 |
1 | ||
| 41110-60170 |
LJ71 *FGR=39:8=4.875,*AXC=G144,*FGR=39:8 |
1 | ||
| 41110-60171 |
LJ71 *FGR=39:8=4.875,*AXC=G144,*FGR=39:8 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
BJ7#,LJ71 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-39705 |
LJ71 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35028 |
LJ71 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30025 |
LJ71 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38133 |
LJ71 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35499 |
LJ71 外径=47,厚さ=1.76,T=1.76 |
1 | ||
| 90201-35497 |
LJ71 外径=47,厚さ=1.70,T=1.70 |
1 | ||
| 90201-35502 |
LJ71 外径=47,厚さ=1.85,T=1.85 |
1 | ||
| 90201-35504 |
LJ71 外径=47,厚さ=1.91,T=1.91 |
1 | ||
| 90201-35500 |
LJ71 外径=47,厚さ=1.79,T=1.79 |
1 | ||
| 90201-35505 |
LJ71 外径=47,厚さ=1.94,T=1.94 |
1 | ||
| 90201-35501 |
LJ71 外径=47,厚さ=1.82,T=1.82 |
1 | ||
| 90201-35508 |
LJ71 外径=47,厚さ=2.03,T=2.03 |
1 | ||
| 90201-35512 |
LJ71 外径=47,厚さ=2.15,T=2.15 |
1 | ||
| 90201-35506 |
LJ71 外径=47,厚さ=1.97,T=1.97 |
1 | ||
| 90201-35503 |
LJ71 外径=47,厚さ=1.88,T=1.88 |
1 | ||
| 90201-35510 |
LJ71 外径=47,厚さ=2.09,T=2.09 |
1 | ||
| 90201-35507 |
LJ71 外径=47,厚さ=2.00,T=2.00 |
1 | ||
| 90201-35516 |
LJ71 外径=47,厚さ=2.27,ﾏｰｸ 02,T=2.27 |
1 | ||
| 90201-35509 |
LJ71 外径=47,厚さ=2.06,T=2.06 |
1 | ||
| 90201-35498 |
LJ71 外径=47,厚さ=1.73,T=1.73 |
1 | ||
| 90201-35515 |
LJ71 外径=47,厚さ=2.24,ﾏｰｸ 01,T=2.24 |
1 | ||
| 90201-35518 |
LJ71 外径=47,厚さ=2.33,ﾏｰｸ 04,T=2.33 |
1 | ||
| 90201-35511 |
LJ71 外径=47,厚さ=2.12,T=2.12 |
1 | ||
| 90201-35517 |
LJ71 外径=47,厚さ=2.30,ﾏｰｸ 03,T=2.30 |
1 | ||
| 90201-35514 |
LJ71 外径=47,厚さ=2.21,T=2.21 |
1 | ||
| 90201-35513 |
LJ71 外径=47,厚さ=2.18,T=2.18 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35040 |
LJ71 |
1 | ||
| 41204G - NUT (FOR DRIVE PINION COMPANION FLANGE REAR) | ||||
| 90179-20001 |
LJ71 |
1 | ||
| 41204H - WASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE REAR) | ||||
| 90201-20005 |
LJ71 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26010 |
BJ7#,LJ71 |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35020 |
LJ71 |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
LJ71 |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
LJ71 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-35010 |
BJ7#,LJ71 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
LJ71 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
LJ71 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41302-35020 |
LJ71 |
1 | ||
| 41302-35010 |
LJ71 W/LSD |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-10084 |
LJ71 |
8 | ||
| 41306 - SPIDER SUB-ASSY, FRONT DIFFERENTIAL | ||||
| 41306-35010 |
LJ71 |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
LJ71 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
LJ71 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-35010 |
LJ71 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35040 |
LJ71 |
2 | ||
| 41331-35030 |
LJ71 W/LSD |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35040 |
LJ71 |
2 | ||
| 41331-35030 |
LJ71 W/LSD |
2 | ||
| 41331A - SPRING, COMPRESSION | ||||
| 90501-35008 |
LJ71 OD=23.5 |
1 | ||
| 90501-75001 |
LJ71 OD=32 |
1 | ||
| 41331A - SPRING, COMPRESSION | ||||
| 90501-35008 |
LJ71 OD=23.5 |
1 | ||
| 90501-75001 |
LJ71 OD=32 |
1 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35010 |
LJ71 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35010 |
LJ71 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35010 |
LJ71 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35010 |
LJ71 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
LJ71 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
LJ71 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
LJ71 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
LJ71 |
4 | ||
| 41361A - SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST) | ||||
| 90564-50003 |
LJ71 厚さ=0.25,T=0.25 |
4 | ||
| 90564-50002 |
LJ71 厚さ=0.20,T=0.20 |
4 | ||
| 90564-50004 |
LJ71 厚さ=0.30,T=0.30 |
4 | ||
| 90564-50001 |
LJ71 厚さ=0.15,T=0.15 |
4 | ||
| 90564-50005 |
LJ71 厚さ=0.35,T=0.35 |
4 | ||
| 41361A - SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST) | ||||
| 90564-50003 |
LJ71 厚さ=0.25,T=0.25 |
4 | ||
| 90564-50002 |
LJ71 厚さ=0.20,T=0.20 |
4 | ||
| 90564-50004 |
LJ71 厚さ=0.30,T=0.30 |
4 | ||
| 90564-50001 |
LJ71 厚さ=0.15,T=0.15 |
4 | ||
| 90564-50005 |
LJ71 厚さ=0.35,T=0.35 |
4 | ||
| 41362 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2 | ||||
| 41361-35020 |
LJ71 厚さ=1.8 |
10 | ||
| 41362 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2 | ||||
| 41361-35020 |
LJ71 厚さ=1.8 |
10 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-22020 |
LJ71 |
8 | ||
| 41385-35010 |
LJ71 |
8 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-22020 |
LJ71 |
8 | ||
| 41385-35010 |
LJ71 |
8 | ||
| 41387 - RETAINER, SPRING, RH | ||||
| 41387-35010 |
LJ71 |
1 | ||
| 41388 - RETAINER, SPRING, LH | ||||
| 41388-35010 |
LJ71 |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
