LJ71G-MET (1990)

Toyota Land Cruiser S/T,H/T

Production Apr 1990 - May 1993
Engine 2LTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

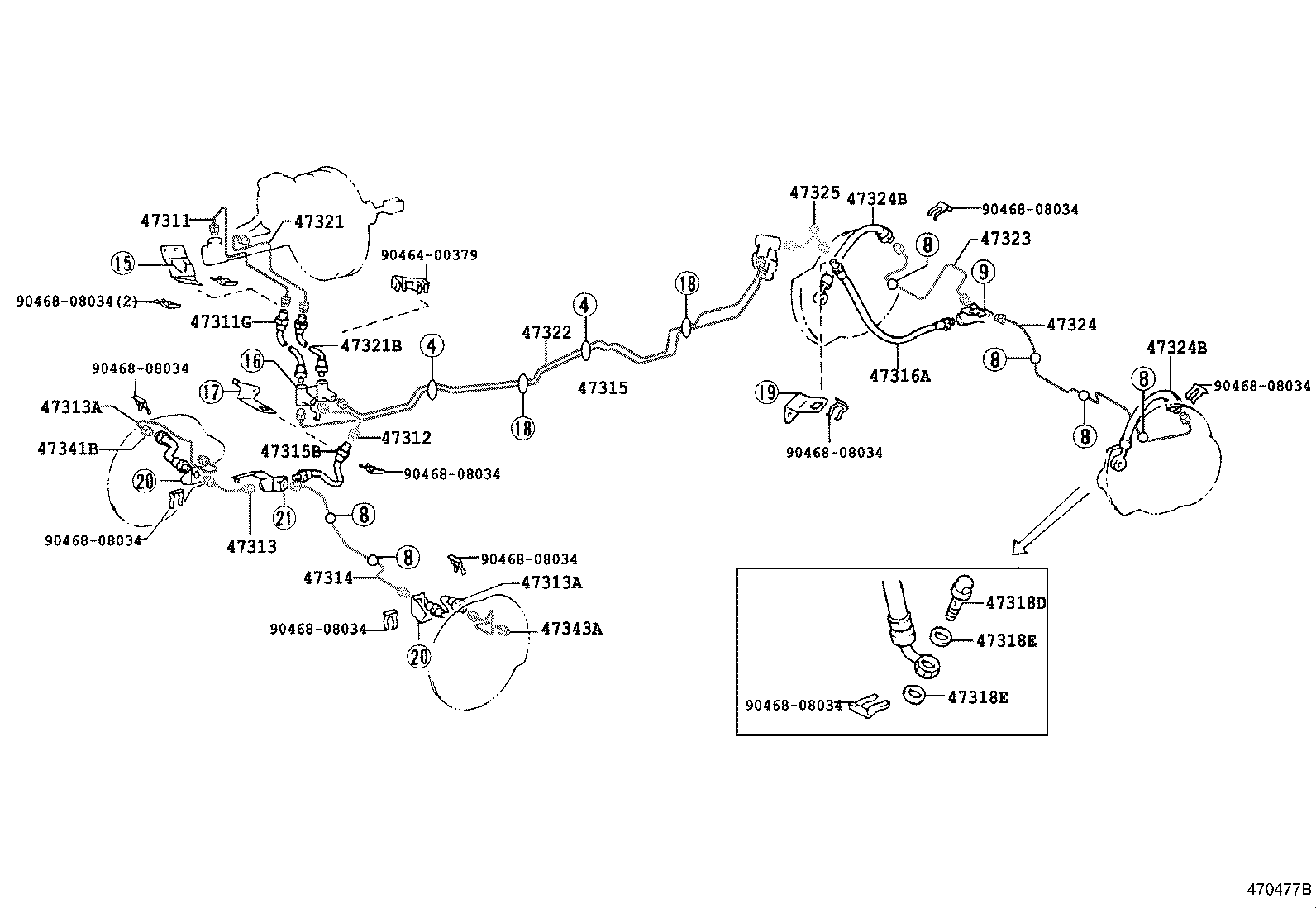

ILLUST NO. 1 OF 3(9004-9305)LJ7#

Click highlighted areas on diagram

diagram 47311 47311G 47312 47313 47313A 47313A 47314 47315 47315B 47316A 47318D 47318E 47318E 47321 47321B 47322 47323 47324 47324B 47324B 47325 47341B 47343A 9046400379 9046808034 9046808034 9046808034 9046808034 9046808034 9046808034 9046808034 9046808034 9046808034 9046808034
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47312-60561

LJ7#

 1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
96940-32756

LJ7#

 1
96940-32406

LJ7#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47313-60161

LJ7#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47314-60200

LJ7#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-39855

FJ75,HZJ7#,LJ7#,PZJ7#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-39855

FJ75,HZJ7#,LJ7#,PZJ7#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47315-60350

LJ7#

 1
47315 - TUBE, FRONT BRAKE, NO.5
47316-60202

LJ71

 1
47315B - HOSE, FLEXIBLE(FOR BRAKE TUBE)
96940-32755

LJ7#

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-34305

LJ7#

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10015

HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
90430-10074

HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
90430-10074

HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX

 4
47321 - TUBE, REAR BRAKE, NO.1
47322-60451

LJ7#

 1
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-32106

LJ7#

 1
96940-32306

LJ7#

 1
47322 - TUBE, REAR BRAKE, NO.2
47323-60212

LJ71

 1
47323 - TUBE, REAR BRAKE, NO.3
47324-60190

LJ7#

 1
47324 - TUBE, REAR BRAKE, NO.4
47325-60150

LJ7#

 1
47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
90947-02615

HZJ73,77,LJ7#

左側

 1
90947-02614

HZJ73,77,LJ7#

右側

 1
47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
90947-02615

HZJ73,77,LJ7#

左側

 1
90947-02614

HZJ73,77,LJ7#

右側

 1
47325 - TUBE, REAR BRAKE, NO.5
47326-60071

LJ7#

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-60060

LJ7#

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-60060

LJ7#

 1
Common parts
90464-00379
90468-08034

ILLUST NO. 3 OF 3(9001-9908)

Click highlighted areas on diagram

diagram 04477 47910 47920 47920A 47920A 47920B 47920C 47920C 47931 47931 47932A 47932A 47933 47933 47935 47935A 47935B 47935B 47935C 47935C 47935C 47936 47937 47938 9011908834 9017910132 9020123360 9020123360 9020123360 9020123360 9113150840 9113150840 91611B0816 91651B0820 9411041000 9413000802 9413000802 9413000802 9413000802 9414140800 9451200800 9451200800 9451200800 9451200800 9451200800 9451201000 9538102020 9538102020
Part # Description Qty Price
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-60010

FJ75,HZJ7#,LJ7#,PZJ7#

 1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-60050

LJ7#

 1
47920 - SPRING ASSY, LOAD SENSING
47920-60100

LJ7#

 1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#

 2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#

 2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#

 1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#

 2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#

 2
47931 - BRACKET, LOAD SENSING VALVE
47931-60060

LJ7#

 1
47931 - BRACKET, LOAD SENSING VALVE
47931-60060

LJ7#

 1
47932A - BRACKET, LOAD SENSING VALVE UNION
47932-60010

LJ7#

 1
47932A - BRACKET, LOAD SENSING VALVE UNION
47932-60010

LJ7#

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-60090

LJ7#

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-60090

LJ7#

 1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35020

LJ7#

 1
47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE)
90387-08099

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#

 1
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#

 2
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#

 2
47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE)
90201-08062

HZJ71,74,76,LJ7#

 1
47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE)
90201-08062

HZJ71,74,76,LJ7#

 1
47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE)
90201-08062

HZJ71,74,76,LJ7#

 1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-60020

LJ7#

 1
47937 - PLATE, LOAD SENSING VALVE SET
47937-60010

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#

 1
Common parts
90119-08834
90179-10132
90201-23360
91131-50840
91611-B0816
91651-B0820
94110-41000
94130-00802
94141-40800
94512-00800
94512-01000
95381-02020

ILLUST NO. 2 OF 3(9001-9908)

Click highlighted areas on diagram

diagram 47311B 47311B 47311B 47311H 47311H 47312E 47312E 47321A 47351B 47352B 47352B 47353B 47353B 47354B 47354B 47355A 47355A 47355A 47371A 47371A 47393 47393 9011908701 9011908701 9011908701 9011908701 9011908701 9011908701 9011908701 9011908701 9011908701 9011908701 9011908701 9011908701 9011910121 9046108706 9046110793 9046400208 9094901183 9094901854 91611B0816 91611B0816 91611B0816 91611B0816 91621J0814 91621J0814 91621J0814 91621J0814
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10174

LJ7#

 1
90413-10264

LJ7#

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10174

LJ7#

 1
90413-10264

LJ7#

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10174

LJ7#

 1
90413-10264

LJ7#

 1
47311H - GROMMET(FOR BRAKE TUBE)
90480-01069

LJ71

 4
47311H - GROMMET(FOR BRAKE TUBE)
90480-01069

LJ71

 4
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90413-10178

LJ7#

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90413-10178

LJ7#

 1
47321A - WAY(FOR REAR BRAKE TUBE)
47396-60020

LJ7#

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-60140

LJ7#

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47354-60090

LJ7#

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47354-60090

LJ7#

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47351-60160

LJ7#

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47351-60160

LJ7#

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47352-60090

LJ7#

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47352-60090

LJ7#

 1
47355A - BRACKET, FLEXIBLE HOSE, NO.5
47355-60090

LJ7#

 1
47355A - BRACKET, FLEXIBLE HOSE, NO.5
47355-60090

LJ7#

 1
47355A - BRACKET, FLEXIBLE HOSE, NO.5
47355-60090

LJ7#

 1
Common parts
90119-08701
90119-10121
90461-08706
90461-10793
90464-00208
90949-01183
90949-01854
91611-B0816
91621-J0814
