KZJ78W-PGT (1993)
Toyota Land Cruiser S/T,H/T
Production
May 1993
-
Apr 1996
Engine
1KZTE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

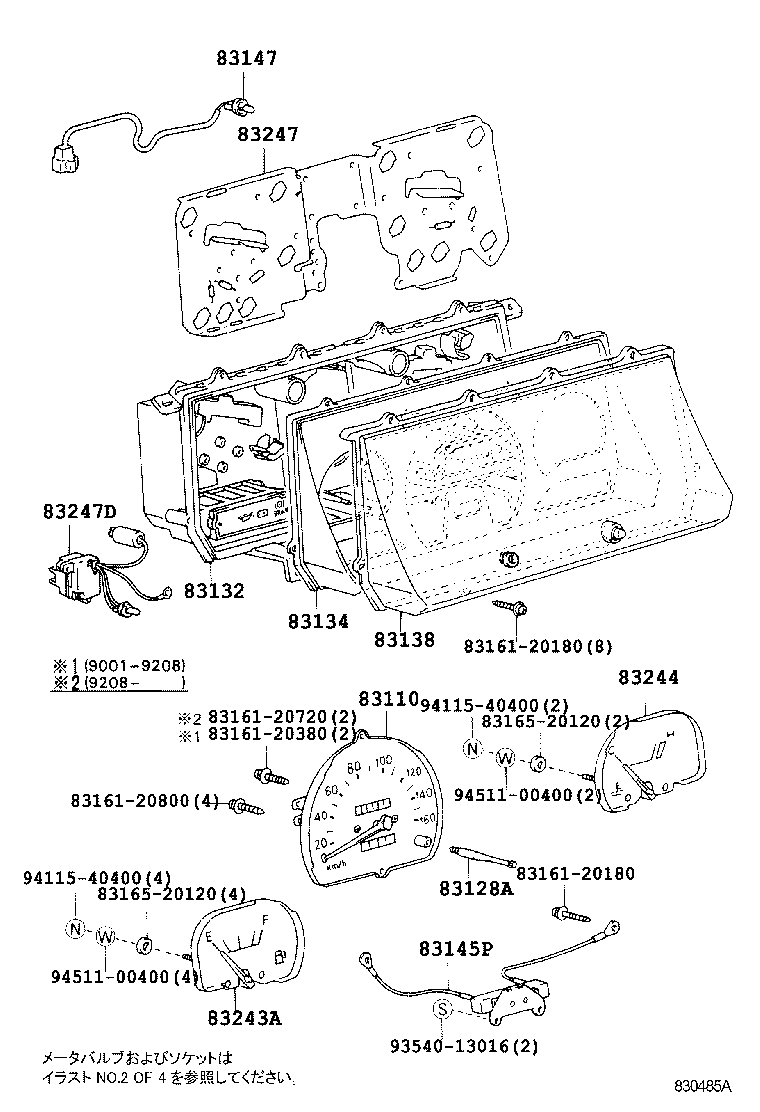

ILLUST NO. 1 OF 4(9001-9908)
Click highlighted areas on diagram
ﾅｼ(ﾀｺﾒ-ﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-60411 |
KZJ7# YAZAKI |
1 | ||
| 83128A - KNOB, METER | ||||
| 83128-90K00 |
KZJ7# |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-60360 |
KZJ7# |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-60240 |
KZJ7# |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-60040 |
KZJ7# |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-60160 |
KZJ7# |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83149-60200 |
KZJ7# |
1 | ||
| Common parts | ||||
| 83161-20180 | ||||
| 83161-20380 | ||||
| 83161-20720 | ||||
| 83161-20800 | ||||
| 83165-20120 | ||||
| 93540-13016 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||

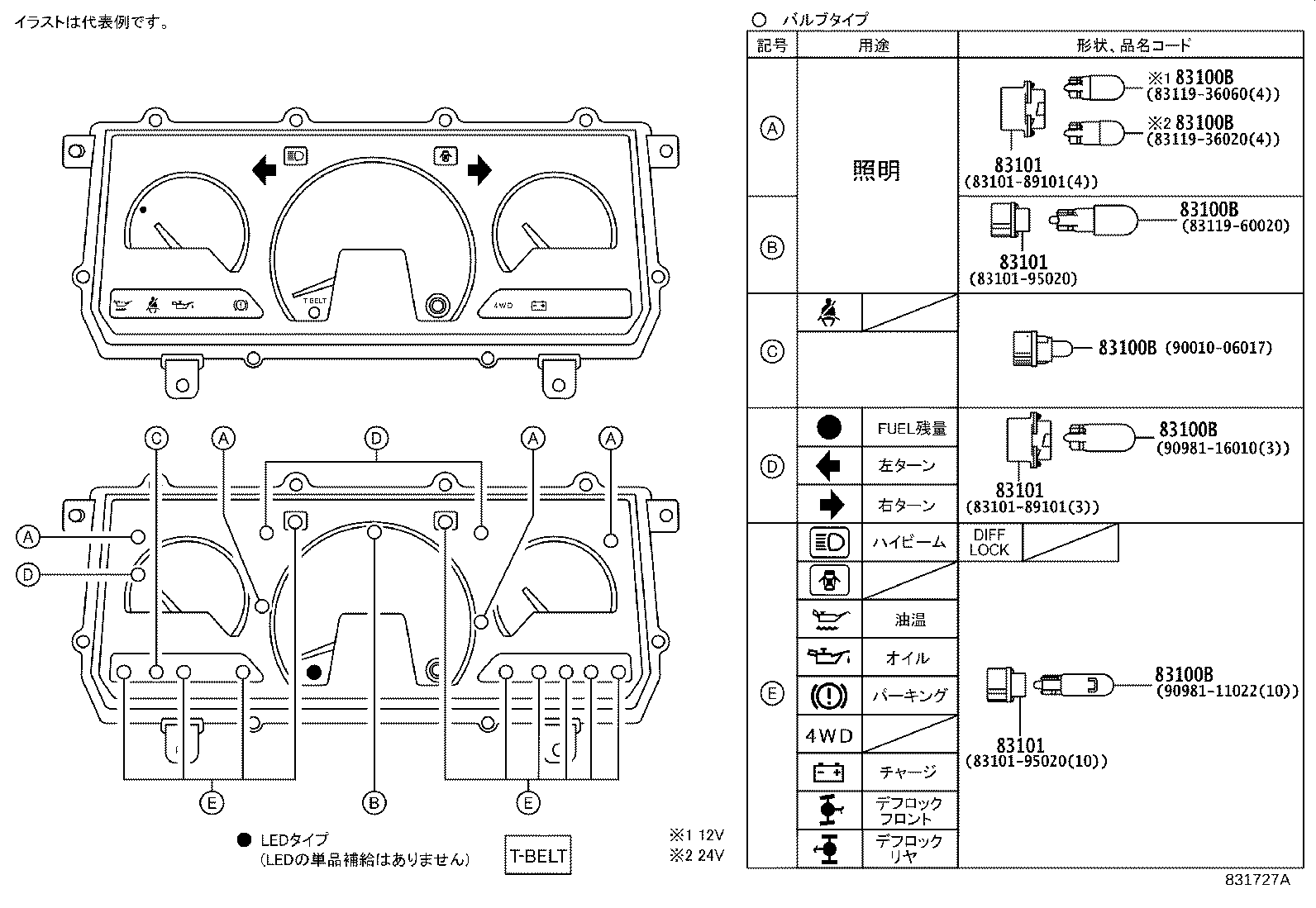

ILLUST NO. 2 OF 4(9001-9908)
Click highlighted areas on diagram
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ:ﾅｼ(ﾀｺﾒｰﾀ)
| Part # | Description | Qty | Price |
|---|

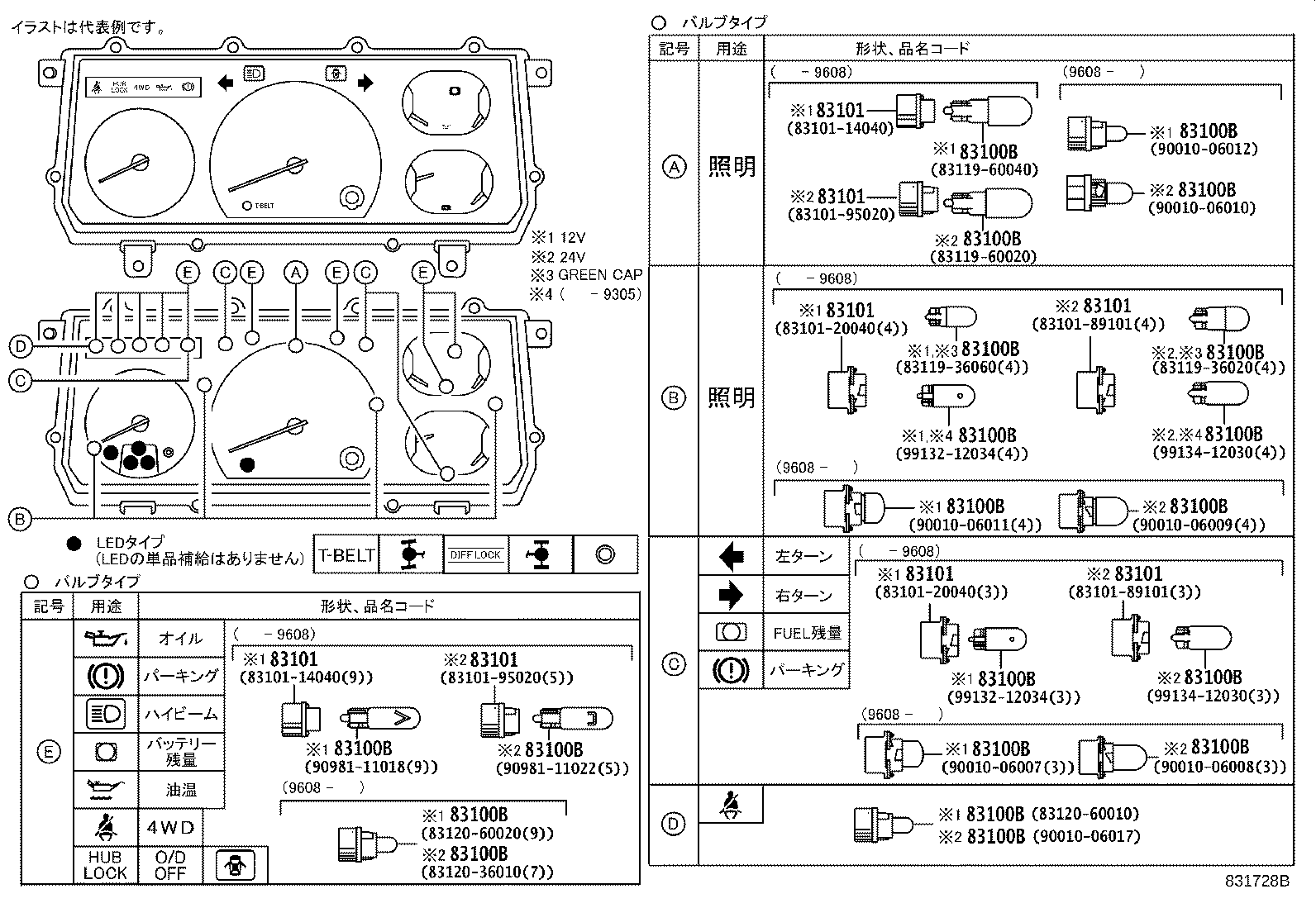

ILLUST NO. 2 OF 4(9001-9908)
Click highlighted areas on diagram
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ:ｱﾘ(ﾀｺﾒｰﾀ)
| Part # | Description | Qty | Price |
|---|

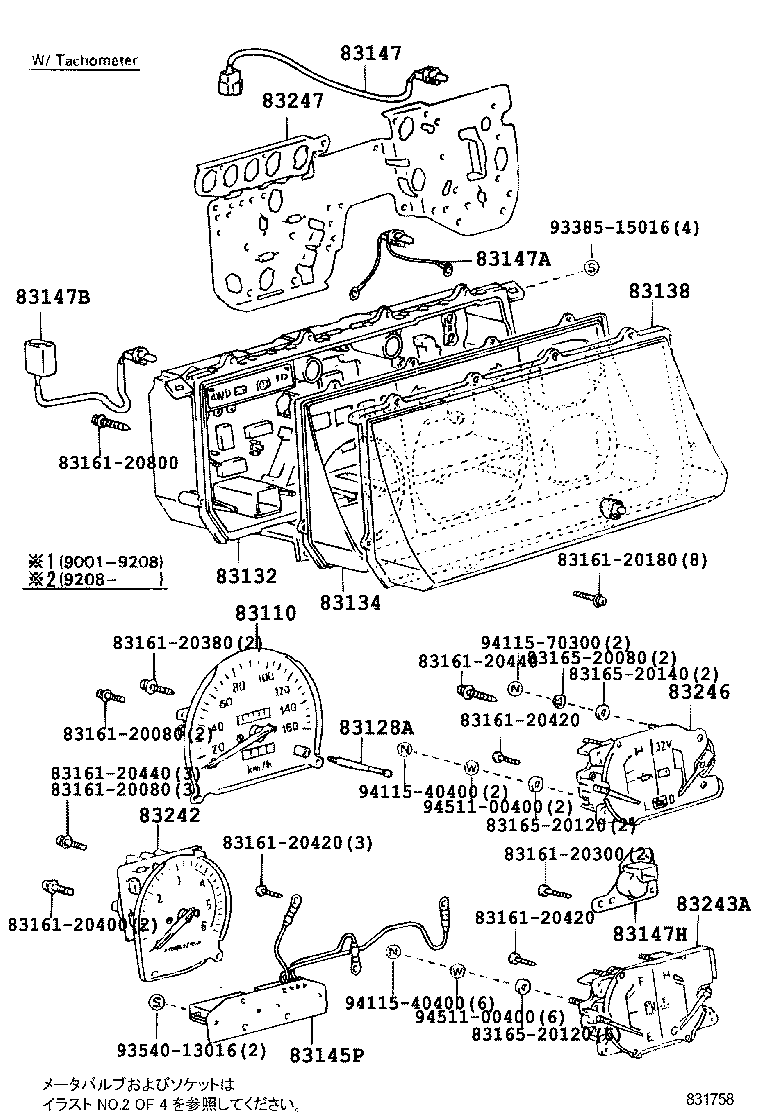

ILLUST NO. 1 OF 4(9001-9908)
Click highlighted areas on diagram
ｱﾘ(ﾀｺﾒ-ﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-60411 |
KZJ7# YAZAKI |
1 | ||
| 83128A - KNOB, METER | ||||
| 83128-90K00 |
KZJ7# |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-60360 |
KZJ7# |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-60240 |
KZJ7# |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-60040 |
KZJ7# |
1 | ||
| 83147H - LAMP, METER NO.4 | ||||
| 83147-60260 |
KZJ7# |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-6A120 |
KZJ7# ｱﾘ(*FFA + ﾃﾞﾌﾛﾂｸ) |
1 | ||
| 83242-6A100 |
KZJ7# |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-60160 |
KZJ7# |
1 | ||
| 83246 - GAUGE, OIL PRESSURE RECEIVER | ||||
| 83246-60080 |
KZJ7# |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83149-60200 |
KZJ7# |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20180 | ||||
| 83161-20300 | ||||
| 83161-20380 | ||||
| 83161-20400 | ||||
| 83161-20420 | ||||
| 83161-20440 | ||||
| 83161-20800 | ||||
| 83165-20080 | ||||
| 83165-20120 | ||||
| 83165-20140 | ||||
| 93385-15016 | ||||
| 93540-13016 | ||||
| 94115-40400 | ||||
| 94115-70300 | ||||
| 94511-00400 | ||||
