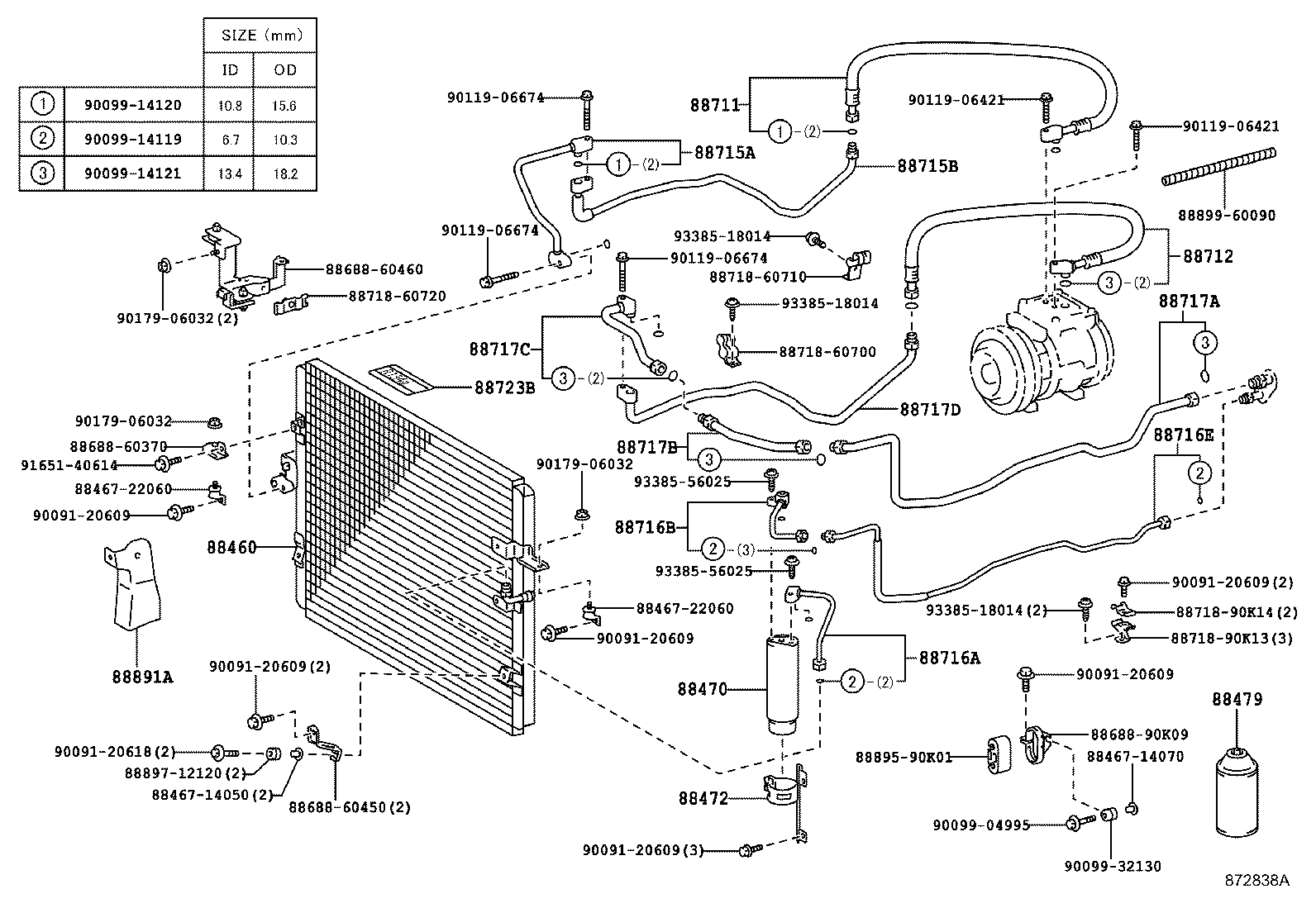

Toyota Land cruiser s/t,h/t KZJ78 HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-60120	KZJ7#	05/1993 - 04/1996	1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-60010	KZJ7#	05/1993 - 04/1996	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-60100	KZJ7#	05/1993 - 04/1996	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60270	KZJ7#	05/1993 - 04/1996	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60460	KZJ7#	05/1993 - 04/1996	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-60070	KZJ7#	05/1993 - 04/1996	1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88715-60060	KZJ7#	05/1993 - 04/1996	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-6A110	KZJ7#	05/1993 - 04/1996	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-6A120	KZJ7#	05/1993 - 04/1996	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-6A130	KZJ7#	05/1993 - 04/1996	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-60560	KZJ7#	05/1993 - 04/1996	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-60570	KZJ7#	05/1993 - 04/1996	1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-60830	KZJ7#	05/1993 - 04/1996	1
88717D - PIPE, COOLER REFRIGERANT SUCTION, D
88717-60550	KZJ7#	05/1993 - 04/1996	1
Common parts
88467-14050
88467-14070
88467-22060
88688-60370
88688-60450
88688-60460
88688-90K09
88718-60700
88718-60710
88718-60720
88718-90K13
88718-90K14
88895-90K01
88897-12120
88899-60090
90091-20609
90091-20618
90099-04995
90099-14119
90099-14120
90099-14121
90099-32130
90119-06421
90119-06674
90179-06032
91651-40614
93385-18014
93385-56025

KZJ78W-PET (1993)
