KZJ78W-MGT (1993)

Toyota Land Cruiser S/T,H/T

Production May 1993 - Apr 1996
Engine 1KZTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9305-9604)KZJ7#

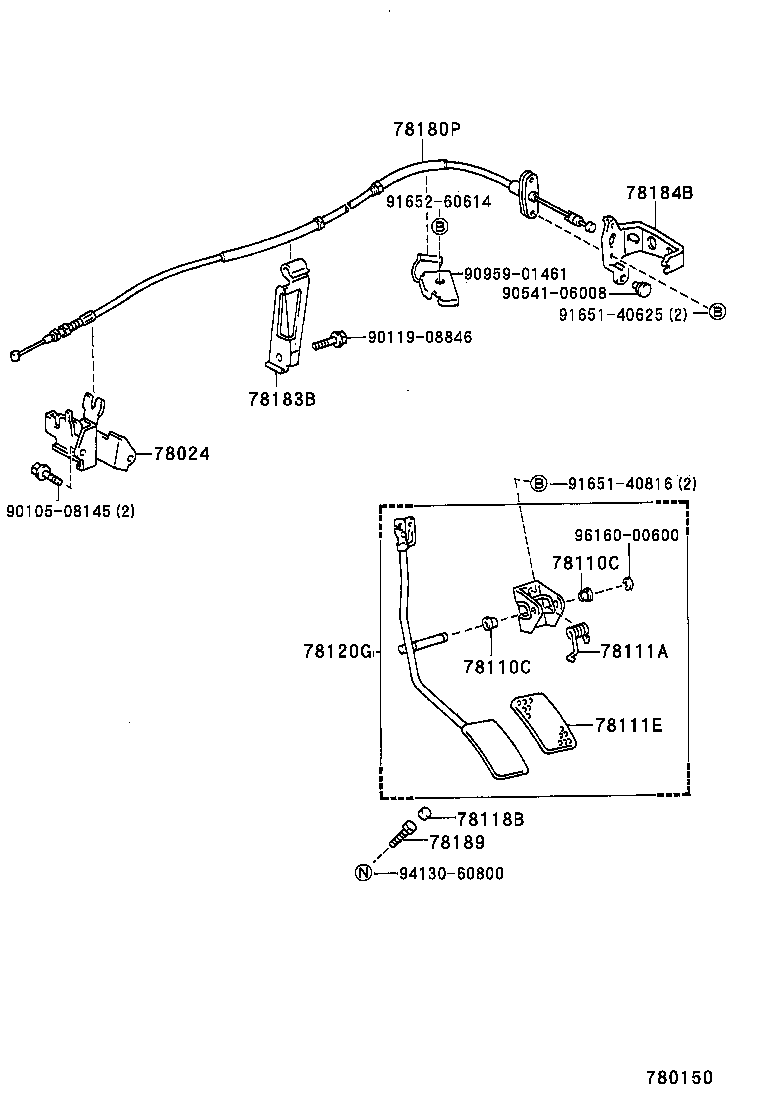

Click highlighted areas on diagram

diagram 78024 78110C 78110C 78111A 78111E 78118B 78120G 78180P 78183B 78184B 78189 9010508145 9011908846 9054106008 9095901461 9165140625 9165140816 9165260614 9413060800 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-60030

KZJ7#

 1
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90386-08155

KZJ7#..MTM

 2
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90386-08155

KZJ7#..MTM

 2
78111A - SPRING (FOR ACCELERATOR PEDAL)
90959-03030

KZJ7#..MTM

 1
78118B - STOPPER, ACCELERATOR PEDAL
78118-90K00

HZJ7#,KZJ7#,PZJ7#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-60110

KZJ7#..MTM

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-60350

KZJ7#

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-60060

KZJ7#

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-90K02

KZJ7#

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
91131-50845

HZJ7#,KZJ7#,PZJ7#

 1
Common parts
90105-08145
90119-08846
90541-06008
90959-01461
91651-40625
91651-40816
91652-60614
94130-60800
96160-00600
