KZJ78W-MET (1993)

Toyota Land Cruiser S/T,H/T

Production May 1993 - Apr 1996
Engine 1KZTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

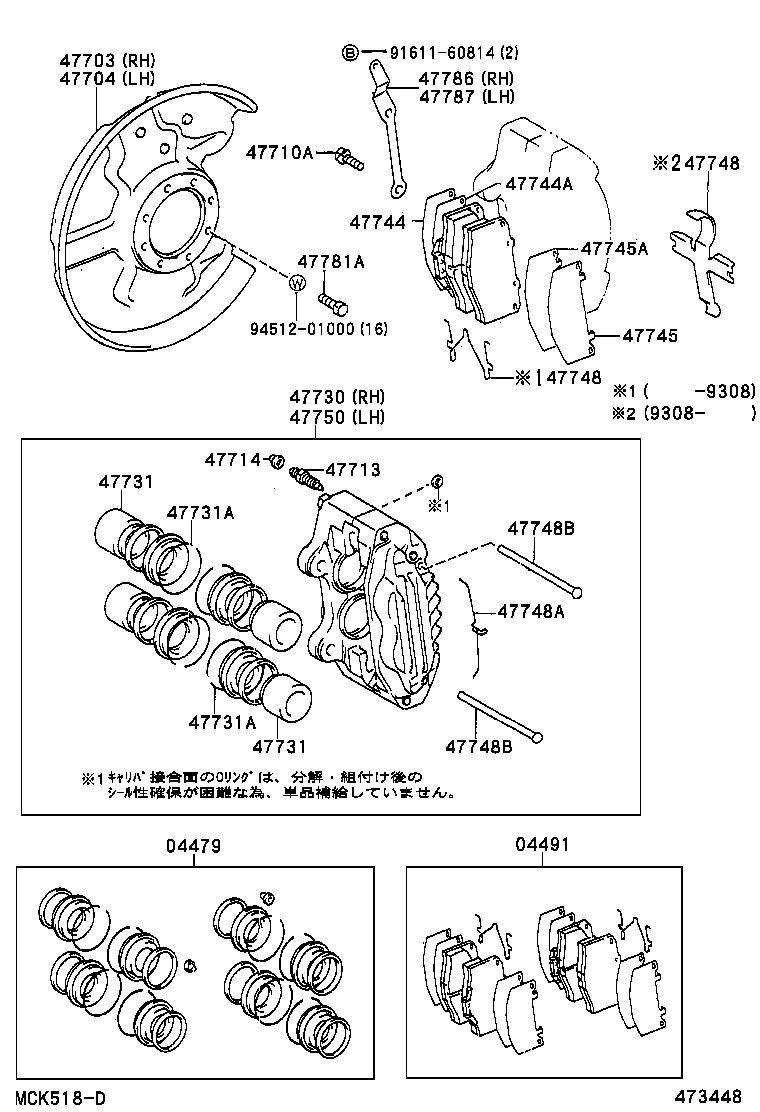

ILLUST NO. 1 OF 2(9001-9908)

Click highlighted areas on diagram

diagram 04479 04491 47703 47704 47710A 47713 47714 47730 47731 47731 47731A 47731A 47744 47744A 47745 47745A 47748 47748 47748A 47748B 47748B 47750 47781A 47786 47787 9161160814 9451201000
Part # Description Qty Price
04491 - PAD KIT, DISC BRAKE, FRONT
04491-60080

HZJ7#,KZJ7#,PZJ7#

 1
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-60010

HZJ7#,KZJ7#,PZJ7#

 2
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-60010

HZJ7#,KZJ7#,PZJ7#

 2
Common parts
91611-60814
94512-01000

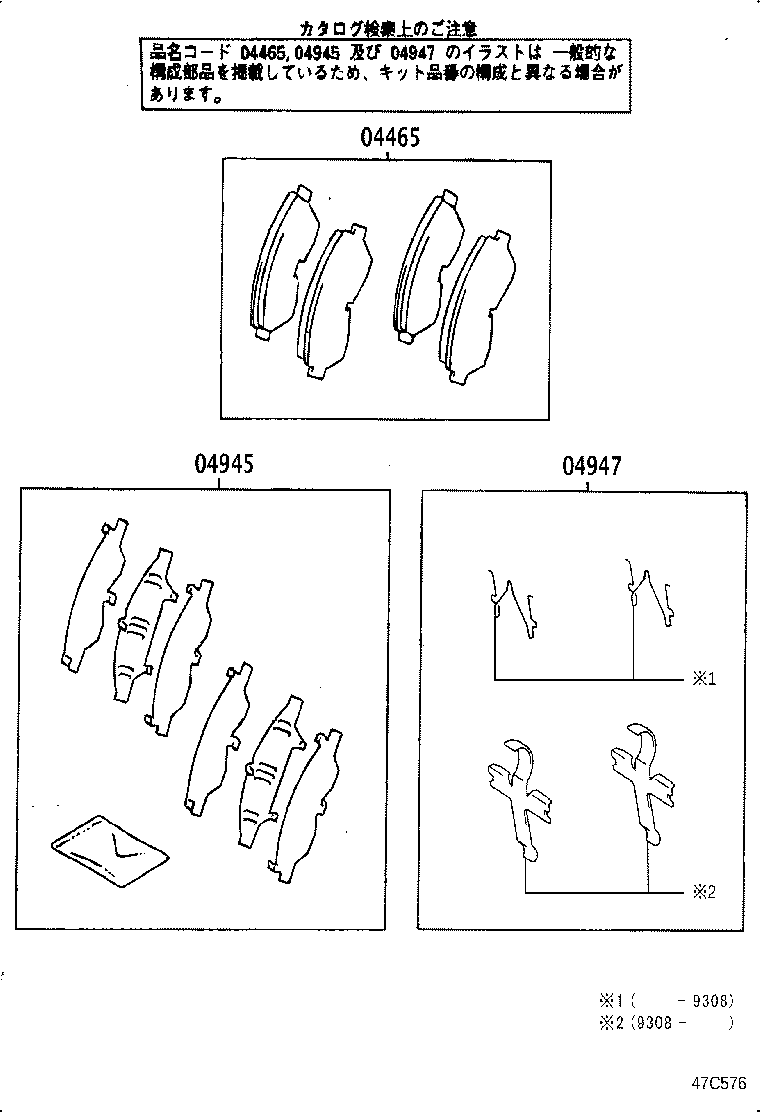

ILLUST NO. 2 OF 2(9001-9908)

Click highlighted areas on diagram

diagram 04465 04945 04947
Part # Description Qty Price
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-60050

HZJ7#,KZJ7#,PZJ7#

 1
