KZJ78G-PET (1993)

Toyota Land Cruiser S/T,H/T

Production May 1993 - Apr 1996
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9305- )

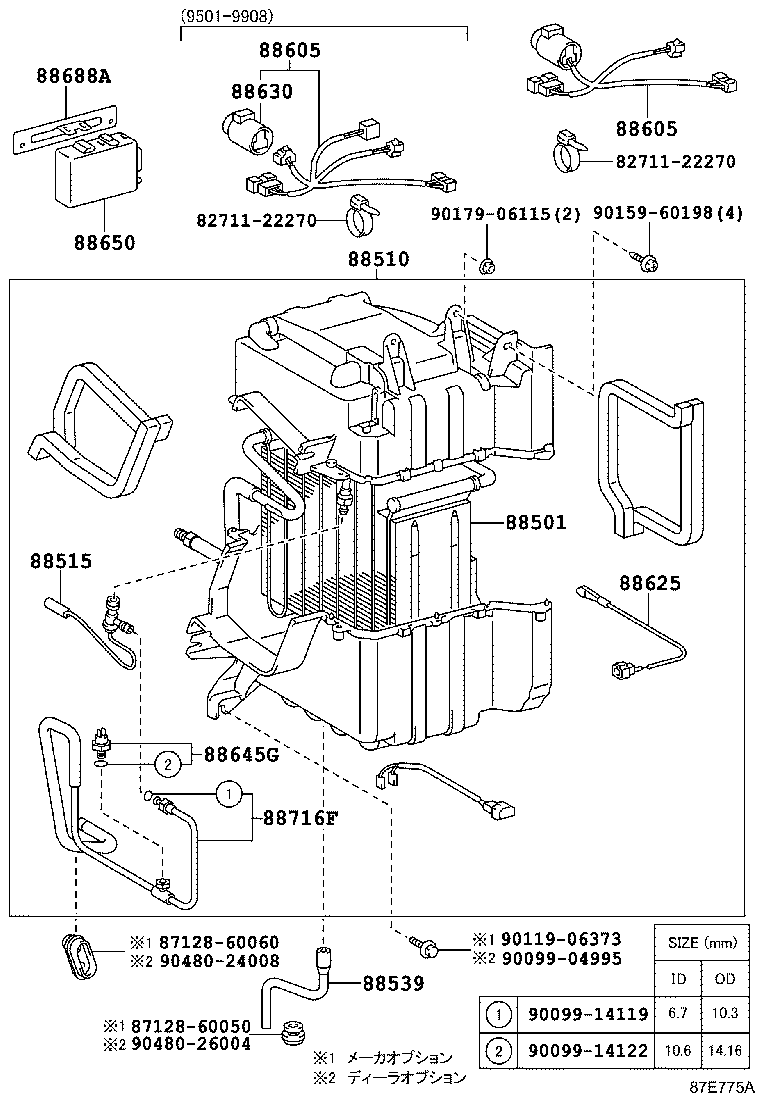

Click highlighted areas on diagram

diagram 8271122270 8271122270 8712860050 8712860060 88501 88510 88515 88539 88605 88605 88625 88630 88645G 88650 88688A 88716F 9009904995 9009914119 9009914122 9011906373 9015960198 9017906115 9048024008 9048026004
Part # Description Qty Price
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-60581

HZJ75,KZJ7#

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-60581

HZJ75,KZJ7#

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-60140

HZJ75,KZJ7#

 1
Common parts
82711-22270
87128-60050
87128-60060
90099-04995
90099-14119
90099-14122
90119-06373
90159-60198
90179-06115
90480-24008
90480-26004
